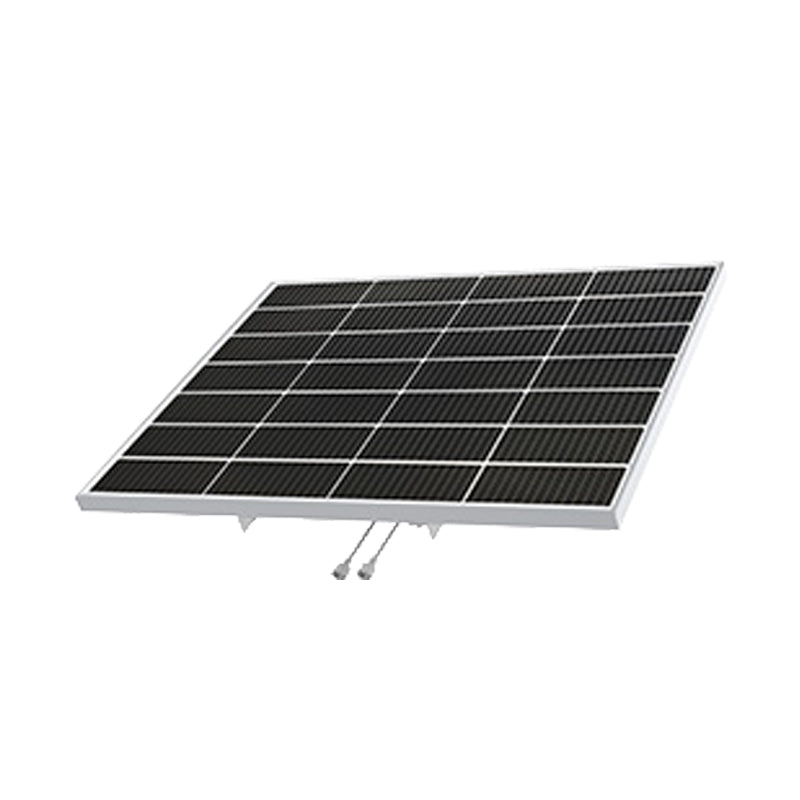

Milesight S100 Solar Power System 962Wh with 90AH Battery
Milesight

Milesight S100 Solar Power System 962Wh with 90AH Battery

SKU: S100B96 ● Out of Stock
$2,765.75
Free shipping over $299 Genuine product 30-day returns

S100B96

Milesight S100 Solar Power System 962Wh with 90AH Battery

Description

Milesight Address off-grid security challenges with Milesight innovative solar camera. Designed to overcome network and power limitations, this solution leverages 4G connectivity and solar energy to provide a fully wireless system. By eliminating the need for complex wiring and traditional power sources, it cuts down on installation costs, reduces labor, and saves valuable time.
Features
  • Battery Type NMC
  • Battery Capacity 90AH
  • Total Energy 962Wh
  • Battery Life 17 days (without data transmission), 11 days (with data transmission)

Specifications

Details
Product Code S100B96
Product Name S100 Solar Power System
Solar Panel Modules in Kit Default: 1 units; Optional: 2 units
PV Power 100W
PV Input Voltage 18V
Material Monocrystalline silicon
Battery Type NMC
Battery Capacity 90AH
Total Energy 962Wh
Battery Life 17 days (without data transmission),11 days (with data transmission)
Deep Cycles ＞1000
Nominal Voltage 11.1V
Output Voltage 9~12.6V DC
Maximum Output Current 10A
Discharge Depth 95%DOD
Battery Heating Charging current > 2A and lower than -5℃ turns on
Protection Type Overcurrent/ Overvoltage/Short Circuit/ Undervoltage/ Temperature
Charging Temperature Range 0℃~60℃
Discharging Temperature Range -20℃~65℃
Status Indicator LED (charging status, battery status, output status)
Communication RS485
Output Method M12 5-pin Connector
Output Line Length 1.5m
Supported Cables Dual Device Power Splitter Cable,Bridge Data & Power Cable (RS485 & DC Output) Main Power Cable
Waterproof IP66
Humidity Range 4-100% (no condensation)
Cooling Method Natural Heat Dissipation
Hazardous Material Classification 9
Shell Material Galvanized Steel + Plastic
Fixed Way Hanging Rod / Wall Mounting
Product Dimensions 765*630*112.5 mm 825*690*140 mm (with Package)
Weight 16kg
Warranty 2 years
Certificate UN38.3/MSDS/CE/ROHS
