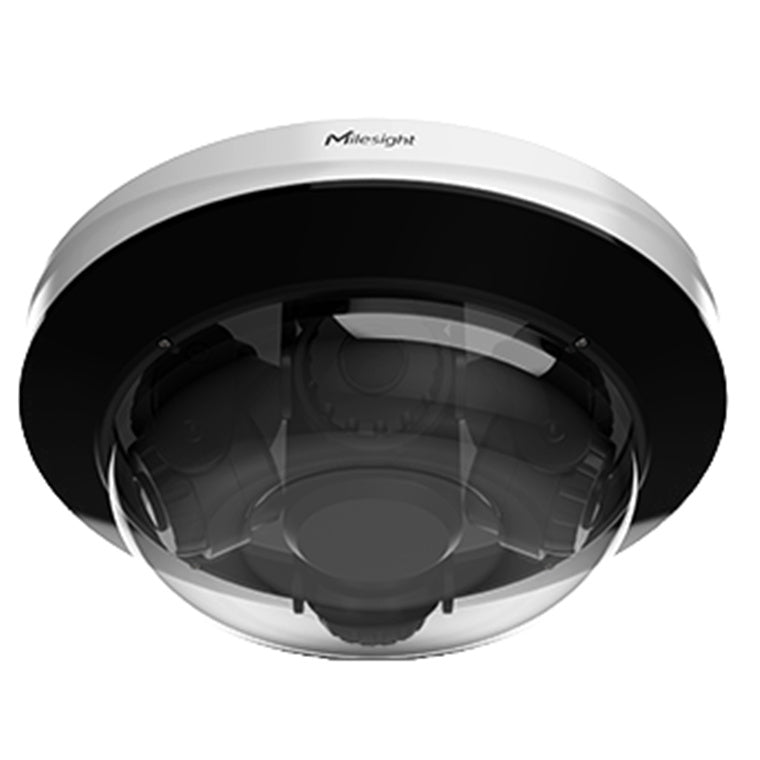

Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera
Features
Milesight 4x5MP NDAA AI Multi-Directional Network IP Camera
- 4*5MP Motorized Sensors
- Adjustable Sensors for Multi-directional Coverage
- Built-in 360° IR LED with Up to 30m IR Distance
- Support 2*1TB SD Card Storage
- Enriched with Advanced AI Event
- Excellent Industrial Design
- H.265+ Video Compression
- Comprehensive Integration with 3rd-party Platform
Big Views with Multi-Directional Vision
Discover the power of this advanced camera, featuring four adjustable 5MP sensors that deliver 20MP exceptional multi-directional vision. Each camera can focus on different areas, providing multiple perspectives to customize your surveillance according to your specific needs. Additionally, one lens is designed to capture ground-level views, ensuring comprehensive coverage and enhanced security.
Reduce Costs and Effort by Replacing 4 Cameras with One
Milesight multi-directional camera is designed to replace up to four traditional cameras, cutting down on the number of devices needed for complete coverage. This means fewer cameras, fewer mounts, and less complex installation-saving you both time and labor. Additionally, with a reduced number of cameras, the VMS licenses and maintenance cost will be cut down as well.
360° All-day & All-around Protection
The camera provides unmatched 360° protection around the clock. Equipped with 360° IR illumination, it provides up to 30 meters of night vision in every direction, ensuring all-around visibility. The camera's 360° coverage range is enhanced by fully rotatable and motorized lenses, allowing each lens to achieve ultimate flexibility. This versatile design enables precise, targeted adjustments to cover every angle effortlessly.
4-Channel AI for Tailored Surveillance
Equipped with a newest AI chip, this camera offers independent AI analysis for each of the channels, allowing for customized monitoring across different areas. This powerful feature adapts to diverse security needs, from intrusion detection to the latest e-scooter detection. Achieve efficient, targeted surveillance with AI-driven insights in every direction.
Versatile Installation for Every Application
Milesight offers a variety of mounting options and brackets to suit different installation needs. With wall mounts, ceiling mounts, and pole mounts, you can easily adapt the camera to any environment.
Industrial-Grade Design: Elegant, Safe, and Easy
Designed with precision and built for durability, this camera features a modular structure that makes installation easier than ever. While spring-latch design ensures the camera stays securely in place, preventing accidental disconnections. Additionally, its short-circuit protection enhances safety, providing reliable performance in even the most demanding environments.
Easy & Seamless Integration
Milesight multi-directional Camera offers seamless compatibility with Milesight software. Additionally, it efficiently integrates with third-party platforms through ONVIF G/M/S/T protocols, ensuring flexible and hassle-free deployment.
Specifications
Technical Specifications
| Model | 4x5MP AI Multi-directional Network Camera |
|---|---|
| Image Sensor | 4x1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.6B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D:64m ~ 150m/ O:23m ~ 59mR:9.5m ~ 28.5m/ I:3m ~ 14m |
| IR Wave Length | 850nm |
| IR Distance | 30m |
| S/N | >55dB |
| Lens | Motorized 3mm~9mm @F1.6 |
| Mount | f14 |
| Field of View | H92° ~ H40°/ D116° ~ D49°/ V67°~V30° |
| Focus Control | Remote |
| Aperture | F1.6-F2.7 |
| Iris Control | Fixed |
| Camera Angle Adjustment | Pan ±120°, Tilt +15 to +105°, Rotation ±90°, Twist ±30° |
| Max. Image Resolution | 2592x1944 (5MP)x4 |
| Primary Stream | 60Hz: 30fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)50Hz: 25fps@ (2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@ (1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) |
| Bundle Stream | 60Hz: 30fps@ (1920x1080, 1280x960, 1280x720)50Hz: 25fps@ (1920x1080, 1280x960, 1280x720) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 4x8 areas |
| ROI | Up to 4x8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Web Access | Support Chrome/Microsoft Edge/Safari/Firefox/Browser |
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| Alarm I/O | 1/1 |
| Audio I/O | 1/1 |
| Network Storage | NAS(Support NFS, SMB/CIFS) |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| WLAN | 802.11n/802.11g(For Installation and Commissioning) |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Target Classification | Human, Motor Vehicle(Car, Motorcycle, Bus, Truck), Non-motor Vehicle (Scooter) |
| Alarm Event | Network Disconnected; IP Address Conflict; Record Failed; No SD Card; SD Card Full; SD Card Error; SD Card Uninitialized |
| Storage | Supports 2 microSD/SDHC/SDXC cards for local storage, each with a maximum capacity of 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Deblur, Watermark |
| SIP/VoIP Support | Support |
| Event Trigger | Motion Detection, Network Disconnection, Audio Alarm, External Output, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. |
| System Compatibility | ONVIF Profile G & S & T & M, API |
| Working Temperature | -40° C~60° C |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V±20% |
| Power Consumption | DC Max. power consumption: 20WPOE Max. power consumption: 23W |
| Surge Protection | 4KV |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Weight | 3.1kg(Only camera), 3.8kg(With package) |
| Dimensions | 280mm x 97mm |
| Brand | Milesight |
|---|---|
| Product Type | Smart Home & Security > Security Cameras > PoE Cameras |
| Weight | 0.5 kg |
