Milesight

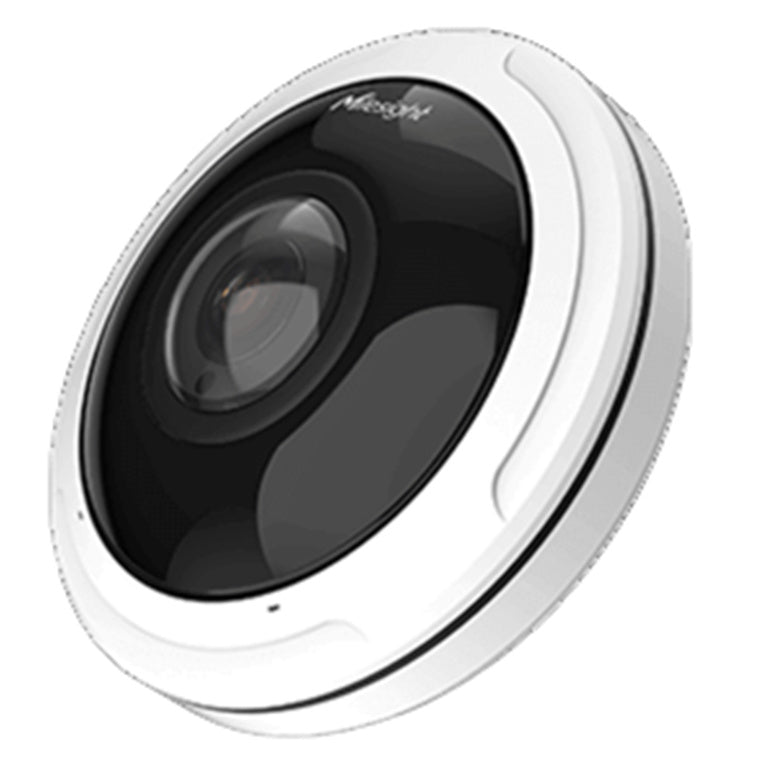

MS-C8274-PA - Milesight NDAA 4K AI 360° Fisheye Network Camera - Multiport

SKU: MS-C8274-PA ● In Stock
$1,097.33
Free shipping over $299 Genuine product 7-day returns

MS-C8274-PA - Milesight NDAA 4K AI 360° Fisheye Network Camera - Multiport

Features

Milesight MS-C8274-PA  4K AI 360  Fisheye Network Camera - Multiport

The Milesight 360° Panoramic H.265+ Fisheye Network Camera Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.

- 4K
- Ultra High Resolution
- 360° Panoramic View
- People Flow Analytics
- Auto Tracking
- 120dB Super Wide Dynamic Range (WDR)
- IP67 & IK10 rated Housing
- 15m Infrared Distance
- ONVIF Profile G & Q & S & T, API Compatibility
- vGRID SaferCity Platform Compliant

Revolutionary IR Performance

The upgraded Smart IR II Technology extends the viewing range to 15m, using three High Beams and three Low Beams LEDs for improved image clarity. It ensures even IR light distribution in different situations, with adjustable brightness. The IR anti-reflection panel greatly enhances infrared light transmittance.

Genius AI Deep Learning

Equipped with a bunch of cutting-edge smart functions like Al Video Analytics, People Counting, Heat Map and People Flow Analytics, it offers more powerful and accurate surveillance solutions to help level up the monitoring efficiency and security.

360° Panoramic View

Offers a panoramic experience equivalent to over 4 regular network cameras but with higher efficiency. It provides a 360° surround view with no blind spots.

People Flow Analytics

Milesight People Flow Analytics function can analyze up to 6 different directions of people flow based on real-time tracking for space planning and business decisions making.

Fisheye Auto Tracking

With Fisheye Auto Tracking, Milesight Fisheye Camera enables automatic tracking of moving objects in the 360° Panoramic View. This ensures comprehensive security by digitally panning, tilting, and zooming within specific areas to avoid missing any details.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

Specifications

Technical Specifications

Product Code MS-C8274-PA
Name 4k AI 360° Fisheye Network Camera
Image Sensor 1/1.8? Progressive Scan CMOS
Min. Illumination Color: 0.008Lux @ F1.8 B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 1.5mm @ F1.8
Mount M12
Field of View Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Shutter Time 1/100000s~1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 15m
Mount Mode Ceiling Mount/Wall Mount/Flat Mount
Decoding Mode On-board Dewarping/Client-side Dewarping
Max. Image Resolution 3840x2160
Primary Stream Fisheye View:60Hz: 30fps @ (2144x2144, 2048x2048, 1920x1920, 1280x1280)50Hz: 25fps @ (2144x2144, 2048x2048, 1920x1920, 1280x1280)
Secondary Stream Fisheye View:60Hz: 30fps @ (1280x960, 1024x1024, 736x736, 576x576)50Hz: 25fps @ (1280x960, 1024x1024, 736x736, 576x576)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Supported
Ethernet 1*RJ45 10M/100M/1000M Ethernet Port
Audio I/O Built-in Microphone and Audio Input/Output interface
Alarm I/O 1/1
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Storage Supports microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Auto Tracking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP upload, SMTP upload, SD card record, External Output, SIP Phone, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
Working Temperature -40?~60?
Working Humidity 0~90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 6W MAX, 8WMAX(With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions F140mm x 45.4mm
Weight 700g
