Milesight

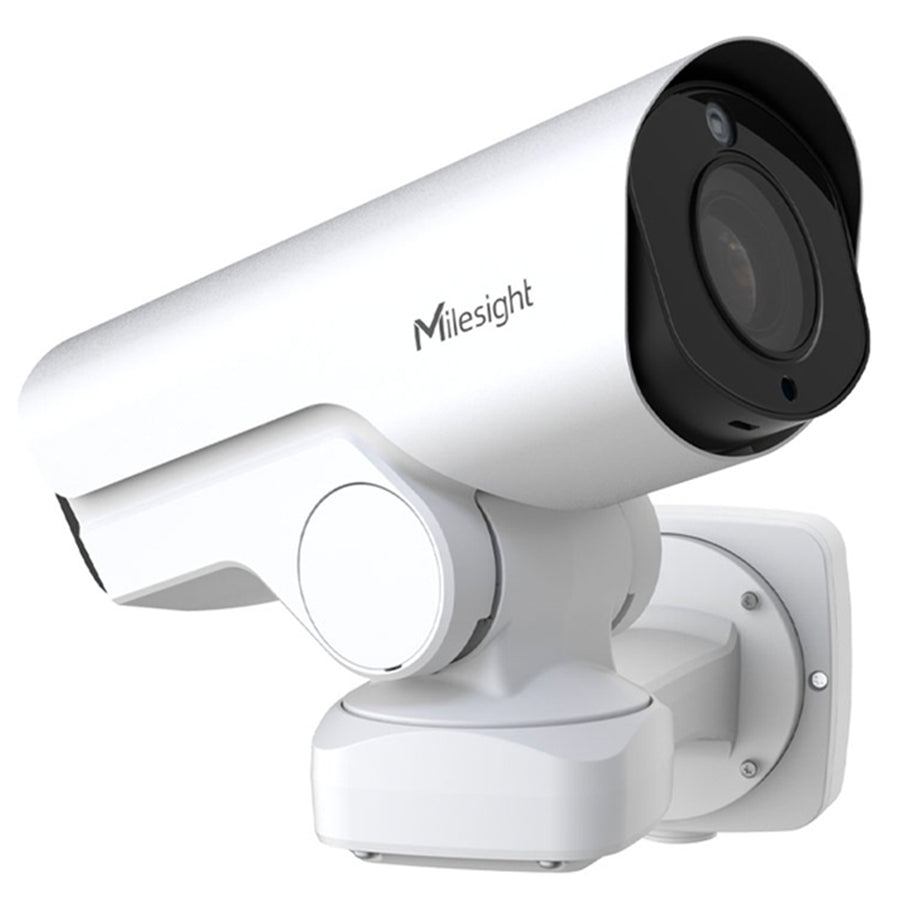

Milesight 5MP AI LPR Road Traffic 12X PTZ Bullet Plus Camera

SKU: TS5367-X12PE ● In Stock
$2,462.78
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

The Milesight License Plate Recognition (LPR/ANPR) 12X Mini PTZ Bullet Network Camera based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

- 5MP
- License Plate Recognition (LPR/ANPR)
- 12x Optical Zoom
- 3 in 1 Super WDR Pro
- 0.005Lux Ultra Low-light
- IP66
- 3D Positioning
- PTZ Auto Tracking
- PTZ Motion Detection
- 90fps High Frame Rate
- PoE (802.3at)
- Traffic Violation Detection
- vGRID SaferCity Platform Compliant

Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 8 patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.

12x Optical Zoom

The 12x Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

Traffic Flow Statistics

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

Intelligent AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.

3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions.

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Specifications

Technical Specifications

Product Code TS5367-X12PE
Product Name Milesight 5MP AI LPR Road Traffic 12X PTZ Bullet Plus Camera
Min. Illumination Color: 0.008Lux @ F1.6 B/W: 0Lux with IR onWDR
Shutter Time 1/100000s~1s
Digital Zoom 16x
Focal Length 5.3~64mm, 12x Optical Zoom
Zoom Speed Approx 4s
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000~1500mm(Wide-Tele)
Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom Support
Patrol 8 Patrols, up to 48 presets each patrol
Auto Tracking Supported
Other Functions Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Up to 140m
Irradiation Angle Auto/Manual
LPR Max Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Supports simultaneous detection of 4 regions
Vehicle Detection Supports vehicle direction detection
White/Black List Up to 1000 records inside the camera
Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps @ (2592x1944), 30fps @ (2048x1536), 30fps @ (1920x1080, 1280x960, 1280x720, 704x576) 50Hz:25fps @ (2592x1944),25fps @ (2048x1536), 25fps @ (1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps @ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)50Hz: 25fps @ (704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)50Hz: 25fps @ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 8 areas
Region Of Interest Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interfaces Ethernet(10/100), Audio I/O(1/1), Alarm I/O(4/2), RS485(1)
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Supported
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function Auto-tracking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Supported - Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input(Optional), Audio Alarm(Optional), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
System Compatibility ONVIF Profile G & Q & S & T, API
Working Condition Temperature: -40?~60? / Humidity: 0~90%(Non-condensing)
Power Supply PoE(802.3at)/ DC 12V/2A±10%
Power Consumption 13W MAX, 23W MAX(With IR on)
Enclosure Up to IP66-rated for weather-resistant performance
Dimensions 110mm x 337mm x 220mm
Weight 2.9Kg
