Milesight

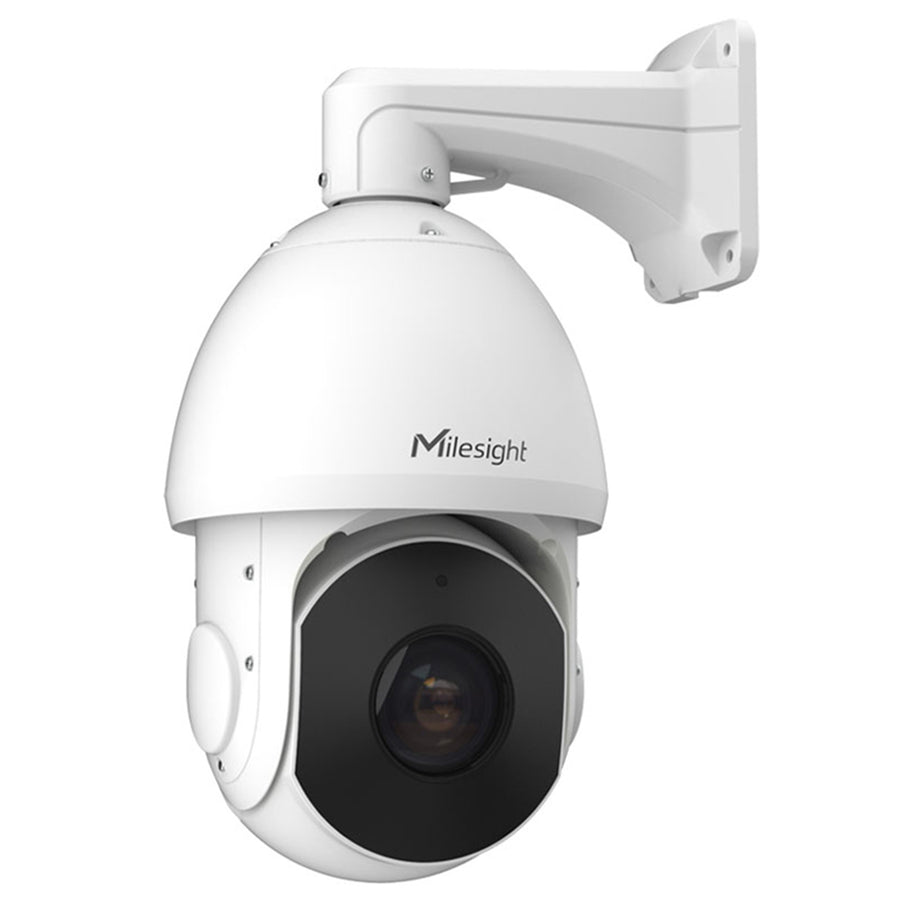

Milesight NDAA 4K AI 36X Speed Dome Network Camera with Wiper

SKU: MS-C8241-X36PE/W ● In Stock
$4,474.19
Free shipping over $299 Genuine product 7-day returns

Features

AI Empowers Security

Milesight AI Camera with deep learning AI algorithms can intelligently filter objects to focus on human and vehicle detection, fitting into various situations to help level up the monitoring efficiency and security.



Smart Rain-Sensing Wiper

The rain sensor is used to detect the rain, realizing a smarter control of the wiper function. The speed and frequency of the wiper are intelligently adjusted according to the rain. By smart rain-sensing wiper, the camera can clear rainwater automatically, providing sharp images even in rainy days.



Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 95° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.



36X Optical Zoom

The 36X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.



3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.



PTZ Privacy Mask

Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.



IP66 & IK10 (Optional for IK10)

Equipped with industry-leading IP66-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

*lK10 is optional for non-wiper versions.

Specifications

Technical Specifications

Name 4K NDAA AI 36X Speed Dome Network Camera with wiper
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.009Lux @F1.55, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s~1s
DORI Distance D: 151~4240m O: 59.5~1670m R: 30~835m l: 15~417m
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Digital Zoom 16X
Focal Length 5.7~205.2mm, 36x Optical Zoom
Zoom Speed Approx 7s(Wide-Tele)
Field of View H65°~H2.5°/D72°~D2.9°/ V40°~V1.4°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1500/1500mm (Wide/Tele)
Aperture F1.55~F4.8
Iris Control Auto
Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°~250°/s, Pan Preset Speed: 250°/s
Tilt Range/Tilt Speed -5°~90°(Auto Flip)/ Tilt Manual Speed: 0.5°~160°/s, Tilt Preset Speed: 160°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Auto Tracking Support
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Irradiation Distance Up to 300m
Irradiation Angle Auto/Manual
Max. Image Resolution 3840x2160
Primary Stream 60Hz: 30fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)50Hz: 25fps@ (3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@ (704x576, 640x480, 640x360, 352x288, 320x240)50Hz: 25fps@ (704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Image Enhancement BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 4/2
RS485 Support
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Video Analysis VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Attribute Extraction Simultaneously detect up to 50 targets and capture humans and vehicles in real time.Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter).
Face Detection&Face Attribute Recognition Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
Object Counting & Report Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Basic Event Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc.
Exception Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP Support Yes, Voice&Video-over-IP
System Compatibility ONVIF Profile G & M & S & T, API
Working Condition Temperature: -40?~60? / Humidity: 0~90%(Non-condensing)
Power Supply PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption Min.: 11.5W (DC 12V), 14.5W(PoE)Max.: 24.5W (DC 12V), 28.4W(PoE)
Heater Support
Surge Protection 6KV
Dimensions/Weight F205mmX308mm/4Kg
EMC CE-EMC (EN 55032, EN 55035), FCC (PART 15B)
Safety CE-LVD (EN IEC 62368-1)
Environment CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
Protection IP66, IK10(Optional)
