Milesight IoT CT105-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT105 With 500A Current Capacity
Milesight IoT

Milesight IoT CT105-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT105 With 500A Current Capacity

SKU: CT105-915M ● In Stock
$291.47
Free shipping over $299 Genuine product 7-day returns

CT105-915M

Milesight IoT CT105-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT105 With 500A Current Capacity

Description

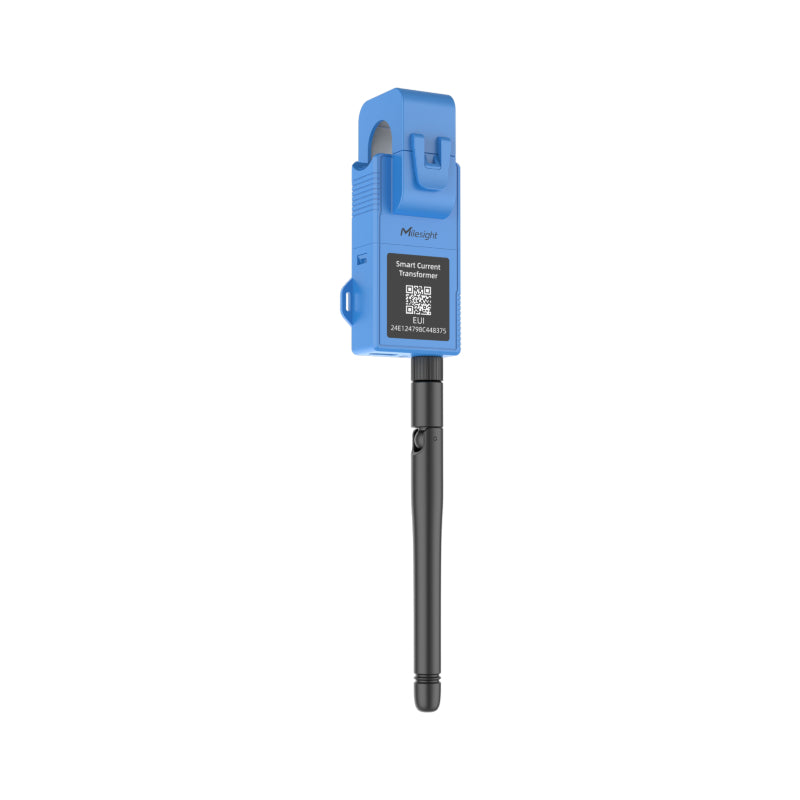

Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT105 With 500A Current Capacity. The Milesight CT105 is a compact LoRaWAN IoT Smart Current Transformer for monitoring the energy and analyzing consumption remotely. CT10x provides multiple current options to suit energy monitoring and support sending threshold alarms. CT10x is detachable, the compact size and clamp design allow it to be installed in any indoor space quickly and safely without de-energizing a facility, simplifying the installation and saving the cost. Compliant with Milesight LoRaWAN® gateways and Milesights IoT Cloud solution, CT10x can be monitored via webpage or mobile App remotely. CT10x is widely used for energy motoring of smart buildings, machine failure detection and prevention, etc

Perfect for smart buildings, smart city deployments or industrial use-cases.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Self-Powered Operation
  • Superior Accuracy with Up to 3.3kHz Frequency
  • Real-time Accumulated Ampere Hour Calculation
  • Non-invasive Installation
  • Irregular Current Status Alert
  • External Wire Temperature Sensor
  • Detachable and Cable-Free Design
  • LoRaWAN® Wireless Technology
  • Compliant with standard LoRaWAN® gateways and network servers

Specifications

Details
Product Code CT105-915M
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Detection Parameter RMS Current
Sampling Frequency 3.3 kHz
Working Frequency 50~60Hz
Rated Primary Current 500 Arms
Minimum Reporting Current 30Arms (1min Int),10Arms (10min Int)
Accuracy ±1 % (>5Arms), ±3 % (≤ 5Arms)
Resolution 1 mA
Temperature Sensor Measuring range: -20°C ~ 100°C
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Dimensions 86.5 × 31 × 37.4 mm (5.7 × 3.54 × 1.47 in)
Wire Hole Ф 16 mm (Ф 0.63 in)
Insulation Voltage 2.5kVac(r.m.s)(1mA/1min)
Extension Cable Length 100Cm
Operating Temperature -20°C~70°C
