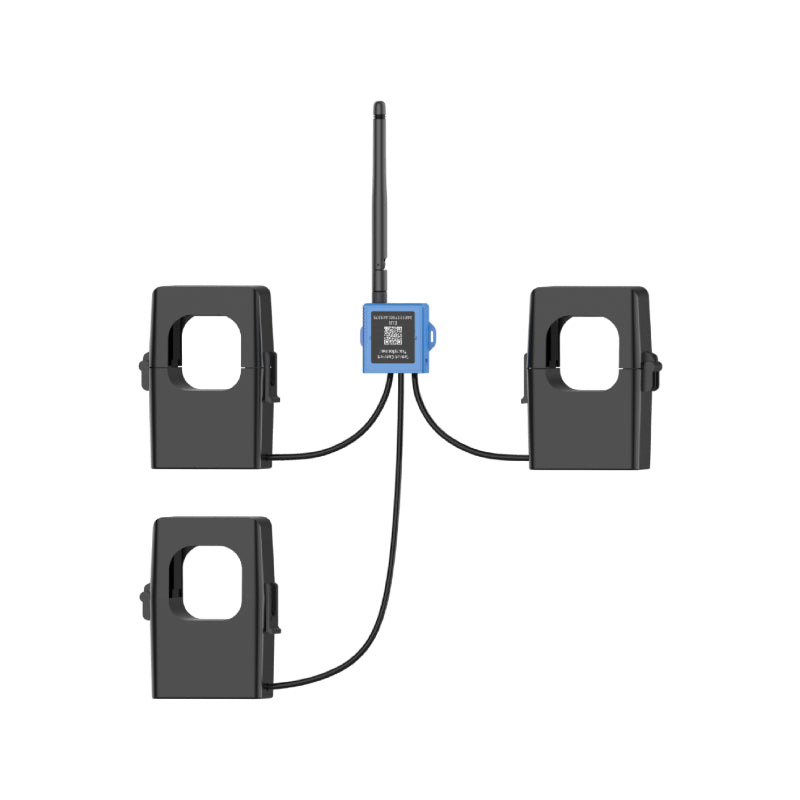

Milesight IoT CT303-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT305 With 3 Phase 300A Current Capacity
Milesight IoT

Milesight IoT CT303-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT305 With 3 Phase 300A Current Capacity

SKU: CT303-915M ● In Stock
$357.42
Free shipping over $299 Genuine product 7-day returns

CT303-915M

Milesight IoT CT303-915M - Milesight LoRaWAN AS923/AU915 Smart Current Transformer CT305 With 3 Phase 300A Current Capacity

Description

CT303 is a LoRaWAN Smart Current Transformer for monitoring energy consumption and analyzing usage remotely. CT303 provides multiple current options to suit different energy monitoring applications and supports sending threshold alarms. Its compact size enables quick and safe installation in any indoor space without de-energizing Circuits, thereby simplifying the installation and saving costs. Compliant with Milesight LoRaWAN gateway and Milesight Development Platform solution, CT303 can be conveniently monitored via webpage remotely. CT303 is widely used for energy monitoring in smart buildings, machine failure detection and prevention, etc.

Perfect for smart buildings, smart city deployments or industrial use-cases.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Report the RMS current and accumulated current data by minutes
  • High measuring accuracy with a sampling frequency of up to 3.3 kHz
  • Self-powered, free from batteries or external wires
  • Utilize a sampling rate of up to 1s for real-time monitoring and quick alarm response
  • Non-invasive clamp design ensures easy and safe installation without the need for power
  • de-energizing
  • Enable simultaneous detection of three phases with a significantly wide optional detection range of 300A and 500A or 1000A
  • Compliant with standard LoRaWAN® gateways and network servers
  • Equipped with LED indicator to indicate working status and alarms

Specifications

Details
Frequency AU915/AS923
Tx Power 20dBm
Sensitivity -137dBm @300bps
Detection Parameter RMS Current
Sampling Frequency 3.3 kHz
Working Frequency 50~60Hz
Rated Primary Current 300 Arms
Minimum Current 8Arms
Minimum Reporting Current 1 Minute interval 25Arms
Minimum Reporting Current 10 Minute interval 15Arms
Ingress Protection IP30
Accuracy ±1 %
Resolution 1 mA
Temperature Sensor Measuring range: -20°C ~ 100°C
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Transceiver Dimensions 38 × 39.7 × 16 mm
CT Clamp Dimensions 56.5 × 36.5 × 68.5 mm
CT Clamp Wire Max Wire Dia Ф 24 mm (Ф 0.94 in)
Insulation Voltage 3kVac(r.m.s)(1mA/1min)
Extension Cable Length 100Cm
Operating Temperature -20°C~70°C
