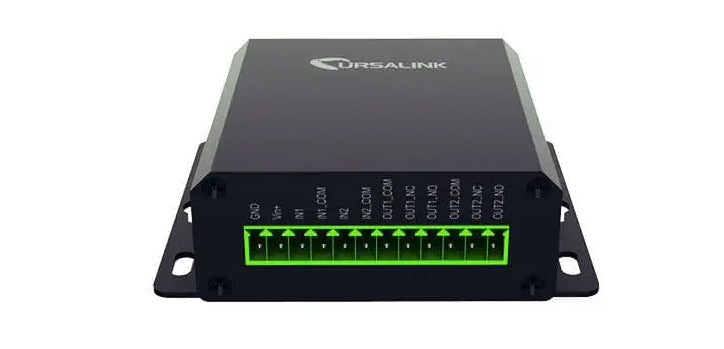

Milesight IoT UC3452 - Ursalink 4G/LTE Remote I/O with RS232/485, digital Input and Relay
Milesight IoT

Milesight IoT UC3452 - Ursalink 4G/LTE Remote I/O with RS232/485, digital Input and Relay

SKU: UC3452 ● In Stock
$97.00
Free shipping over $299 Genuine product 7-day returns

UC3452

Milesight IoT UC3452 - Ursalink 4G/LTE Remote I/O with RS232/485, digital Input and Relay

Description

Ursalink 4G/LTE Remote I/O with RS232/485, digital Input and Relay. Ursalink UC3452 is designed as a cost-effective industrial machine monitoring device that monitors and controls up to 1 RS485, 1 RS232, 1 DC signal and 1 drivable relay output. With the aid of the Ursalink UC3452, the alarm condition brings attention to engineering personnel immediately. Also, with Ursalink Cloud, the engineering personnel can trigger any relay outputs from anywhere at any time. The device can give immediate response to the status of both input and output conditions. A cellular modem is embedded in the Ursalink UC3x52.

(Model Naming Rule: UC3252 = 2G network version, UC3352 = 3G network version, UC3452 = 4G network version, UC3552 = NB-IoT network version)

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • 1 digital input connected with up to 1 DC signal
  • 1 relay drivable output
  • Provide serial interface with 1 RS232 and 1 RS485
  • Combined with data collection and transmission
  • Easily configured by USB or Ursalink Cloud
  • Ursalink Cloud for remote monitoring and control
  • Support public cloud like AWS, Azure and Alibaba Cloud
  • Support private UDP/TCP server
  • Support MQTT protocol
  • Operate autonomously even when network is down
  • Automatic switch of field devices at set times
  • Customizable conditions & programmable actions
  • Send alerts via email
  • Reliable performance with built-in watchdog

Specifications

Details
Product Code UC3452
SIM Card Micro SIM
Antenna 50 Ω SMA Female
RS485 Baud rate：2400-115200bps, Protocol: Modbus RTU
RS232 Baud rate：4800-115200bps, Protocol: TCP/UDP transparent
Digital Input Opto-isolated depending on voltage, Can accept any DC signals of any type, including: Dry Contacts, DC Voltage (3 - 20V), High Voltage: +3V ~ +24V, Low Voltage:+1V max
Digital Output 1 x SPDT Relay Contact Rating, Maximum Load Current: 250VAC/30VDC@3A
IO Connector type Screw Terminals
DC Power Supply 5-24 VDC
Power Consumption Max: 1.6 W, Average: 0.56 W
Operating Temperature -40°C to +70°C (-40°F to +158°F, reduced cellular performance above 60°C)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Relative Humidity 0% to 95% (non- condensing)
Dimensions 79 x 60 x 24 mm
