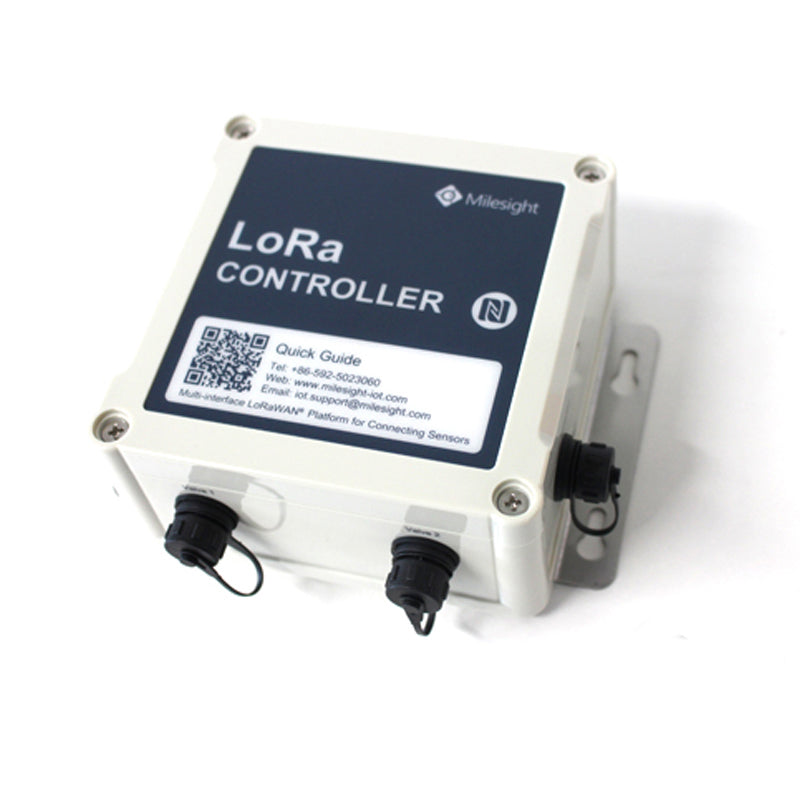

Milesight IoT UC512-DI-915M - Milesight UC512 AU915/AS923 LoRaWan IoT Controller with Latching Solenoids and Pulse Meter support
Description
The UC512 Battery Powered LoRaWAN® wireless IoT controller is a device used to control the status of DC latching solenoids. It contains 2 solenoid interfaces and 1 pulse interface, which supports 2 pulse meters. The UC511 can be easily and quickly configured by NFC or USB-C. For outdoor applications, it is equipped with an IP67-rated enclosure and M12 connectors to protect from water and dust under harsh environments.
The UC512 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and APIâs for third party connectivity.
Consult with Scopious IoT today!
The UC512 is perfect for multiple use cases including Golf Course/Farm/Lifestyle irrigation, Dust suppression, frost suppression, etc.
Need help selecting the right IoT solution?
Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and APIâs for third party connectivity.
Consult with Scopious IoT today!
Features
- Compatible with standard DC latching solenoids
- Transmission distance up to 11km with line of sight
- Waterproof design including IP67 case and M12 connectors
- Solar powered
- Quick wireless configuration via NFC
- Data visualization and remote management via Milesight IoT Cloud
Specifications
| Details | |
|---|---|
| Manufacturer's Code | UC512-DI-915M |
| Frequency | AU915/AS923 |
| Tx Power | 20dbm |
| Sensitivity | -147dBm @300bps |
| Mode | OTAA/ABP |
| Interface type | M12 A-coded Male |
| Ports | 2 Ã Solenoid Interfaces |
| Solenoid Support | 2 wires 12V DC latching solenoids |
| Cable Length | 1.5m |
| Pulse Interface | 1 Ã Pulse Interface, support 2 pulse meters |
| Logical Level | Low: 0~0.9V, High: 2.5~3.3V |
| Cable Length | 1.5m |
| Power On/Off | NFC, power button (Internal) |
| Configuration | Mobile APP(via NFC) or PC software(via USB Type-C) |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 120.1 Ã 120.1Ã 55.4 mm |
| Power Supply | 19000mAh replaceable Li-SOCL2 battery + 5-24 VDC supply |
| Brand | Milesight IoT |
|---|---|
| Product Type | Networking & Wireless |
| Weight | 0.5 kg |
