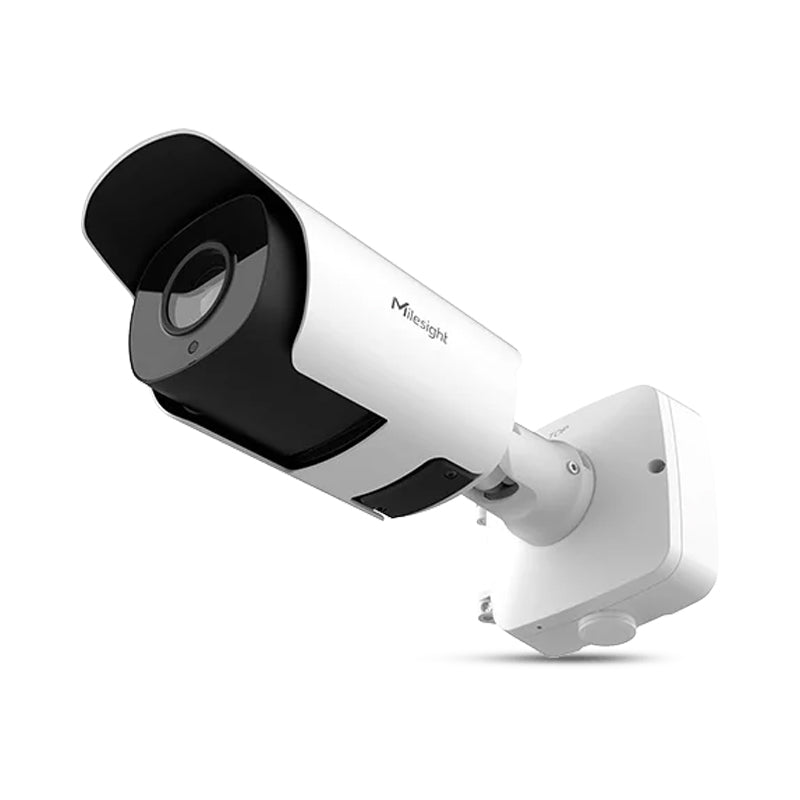

Milesight NDAA AI LPR Road Traffic Pro Bullet Plus Camera

SKU: TS8266-X4RIPG1 ● Out of Stock

$2,500.88

Free shipping over $299 Genuine product 30-day returns

TS8266-X4RIPG1

Description

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.

Features

ONVIF Profile G & Q & S & T, API Compatible
Supports 802.3at PoE
Traffic Violation Detection
Intelligent AI-powered LPR Algorithm
Traffic Flow Statistics
Evidence Camera Linkage
4X AF Lens
Up to 4K Ultra High Definition
1/1.8'' Sensor & 0.005Lux Starlight
60fps High Frame Rate

Specifications

Details
Product Code	TS8266-X4RIPG1
Product Name	NDAA AI Road Traffic Pro Bullet Plus Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Min. Illumination	Color: [email protected] B/W: 0Lux with IR on
Shutter Time	1/100000s~1s
Day/Night Mode	Day/Night/Auto/Customize/Schedule
IR Wave Length	850nm
Illumination Distance	Up to 60m
S/N	>55dB
Lens	8~32mm, 4X Optical Zoom
Field of View	H44°~H13°/D51°~D15°/V25°~V7°
Mount	Φ14
Focus Control	Auto/Manual
Aperture	F1.6~F1.7
P-Iris	Support
Iris Control	Auto
Max. Vehicle Speed	120km/h
Capture Rate	99%
Recognition Accuracy	98%
Coverage	3 lanes
Country Region Supported	More than 80 countries and regions
ANPR Distance	Up to 50m
Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection * Vehicle Color and Plate Color identification are not supported in low-light or night conditions.
Smart Traffic Function	Evidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting
White/Black List	Up to 20,000 records inside the camera
LPR Smart Search	Support
Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O	1/1
Alarm Input	2
Alarm Output	2 (1 relay output; 1 open collector output, max. 12V DC/10mA)
Wiegand	1
RS485	1
Max. Image Resolution	3840x2160
Primary Stream	60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream	60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy Masking	Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI	Up to 8 areas
Image Setting	Brightness/Contrast/Sharpness
Network Storage	NAS (Support NFS, SMB/CIFS), ANR
Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate	8/16/32/44.1/48KHz
Audio Bit Rate	16~256kbps
Two-way Audio	Support
System Compatibility	API, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, EIS, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support	Yes, Voice & Video-over-IP
Event Trigger	Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
Working Temperature	-40℃~60℃
Working Humidity	0~95% (Non-condensing)
Power Supply	PoE (802.3at) / DC 12V±10%
Power Consumption	Min.: 5.1W (DC 12V), 6.2W(PoE) Max.: 15.9W (DC 12V), 19.1W(PoE)
Weather Proof	Up to IP67-rated for Weather-resistant Performance
Housing	Vandal-proof IK10-rated Metal Housing
Surge Protection	4KV
Weight	1300g
Dimensions	346mmX134mmX126mm
Warranty	3/5 Years
EMC	CE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020))
Safety	CE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018)
Environment	CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
