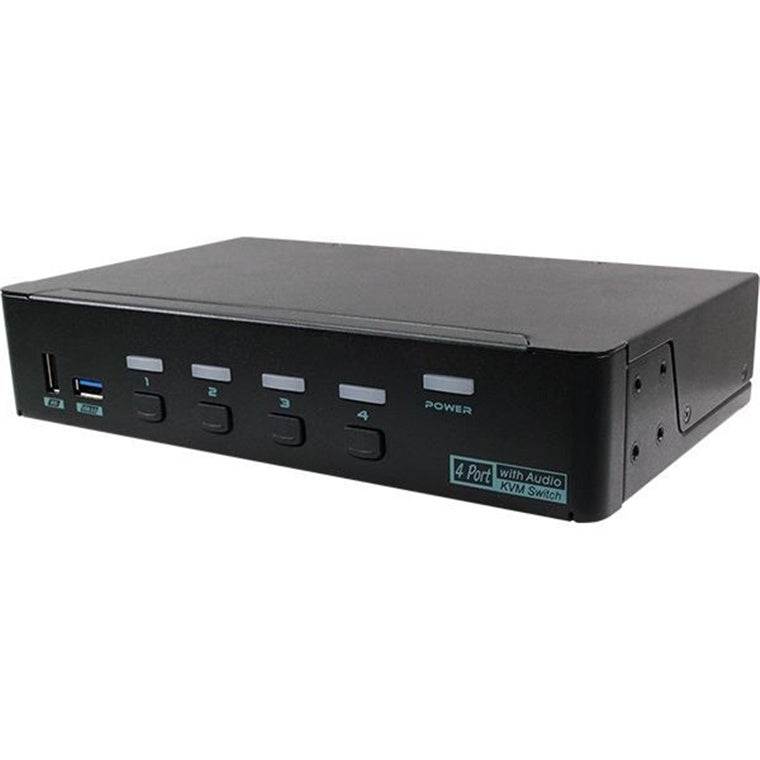

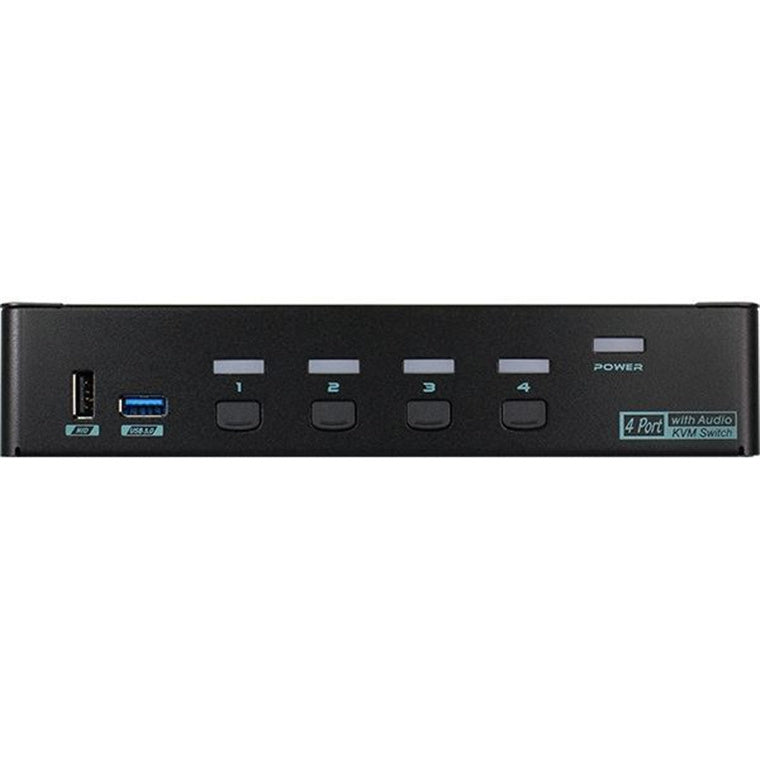

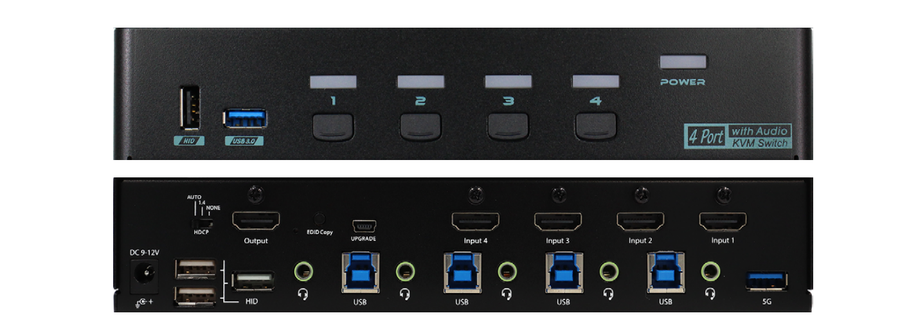

REXTRON MKAG-G3114 - 4 Ports True 4K HDMI KVM Switch w/ HDCP Engine & 3.5mm Audio Built-In USB 3.2 Gen 1

MKAG-G3114 is a 4 Ports True 4K HDMI 2.0 KVM Switch with HDCP Engine and 3.5mm audio built-in, and allows users to share one set of keyboard, mouse, monitor, and audio between four computers. This 4 Ports desktop KVM Switch supporting most popular resolutions up to 4K 60Hz (4:4:4) is ideal for multimedia applications. Besides, there is no need for software or interface card installation. Just connect the cables, power up the system and you are ready to have vivid video images with excellent clarity.

HDMI 2.0 KVM Switch with HDCP Engine 3.5mm audio EDID management function ensures the optimized picture output without flickering or black screen compatibility issues. Independent 3.5mm stereo analog audio and USB 3.2 Gen 1 ports provide excellent I/O speed to meet most requirements. For your convenience, there is also a buzzer sound effect for operation confirmation.

- Allows 4 Computers Share 1 Set of KVM Console
- HDMI 2.0 Video Supports Most Popular Resolutions Up to 4K 60Hz ( 4:4:4 )
- HDR10 Support for Best Visual Experience
- HDCP 2.2 / HDCP 1.4 Compliance Ensures Uninterrupted Video Playback
- HDCP Engine Ensures Low-Latency Switch
- EDID Management, Including EDID Copy / Auto EDID, Ensures Display Compatibility
- Plug-and-Play without Software or Driver
- Front and Rear USB Ports Allow Easy Access
- USB 3.2 Gen 1 Provides Excellent 5Gbps Speed

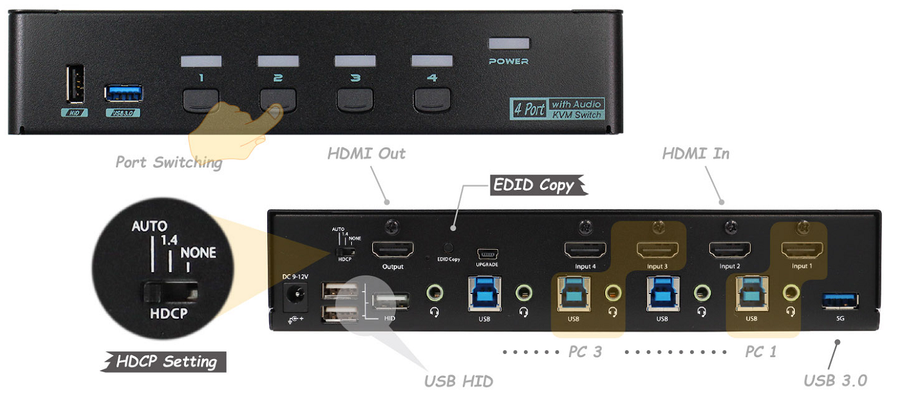

Special Design for HDCP Slide Switch

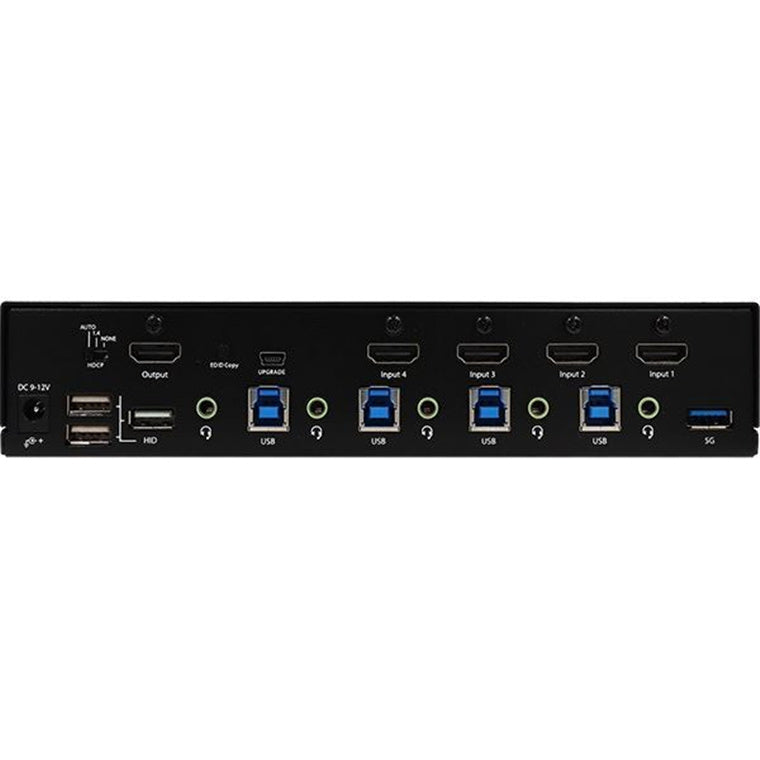

This 4 Ports HDMI 2.0 KVM Switch enables users to copy or automatically learn EDID from the connected monitor, and the exclusive HDCP slide switch on the rear panel allows users to select the 3 preset HDCP modes:

Mode-1: Auto mode allows HDCP 2.2 or HDCP 1.4 content pass-thru (factory default)
Mode-2: HDCP 1.4 mode allows HDCP 1.4 content to be licensed
Mode-3: NONE mode allows non-HDCP content to be played

NOTE: The upgrade port (mini USB-B port) is designed for firmware update.

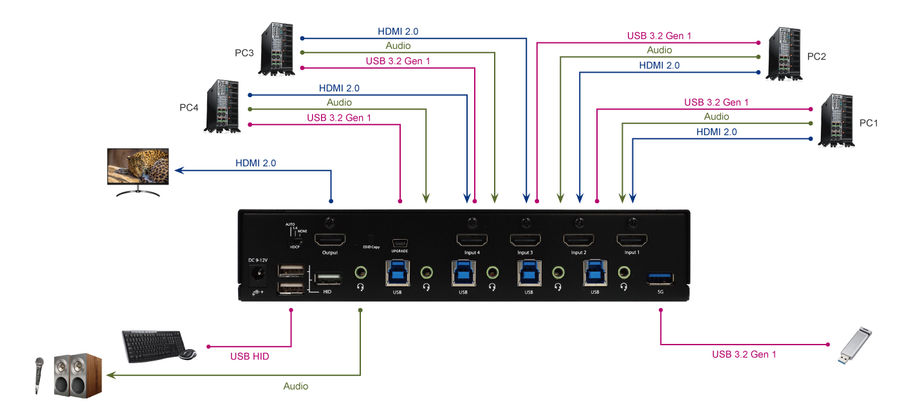

Connection

What Is KVM Switch?

KVM stands for "Keyboard, Video, and Mouse". KVM allows you to access multiple computers or servers via only one set of Keyboard, Mouse and Monitor. Computers may be selected by pressing the KVM push button directly, by issuing hotkey commands or by activating OSD window. KVM switch is a compact size pure hardware solution plug-and-play system without any driver or software installation. It simply reduces redundant cables and encourages a neat and tidy working environment, saving you space, time, equipment, and money.

Where Do KVM Switches Use?

The KVM switches basically have 2 to 4 USB ports, allowing you to share keyboards and mice, printers, USB thumb drives, webcams, and headsets, or other peripherals. Rextron USB KVM Switch products are suitable to be used in SOHO, Server Rooms, Airports, Stations or the environment that needs to control multiple PCs at the same time.
