NEAT BAR PRO ***NOTE: PURCHASE NEATBARPRO -PAD-BUNDLE***
Features

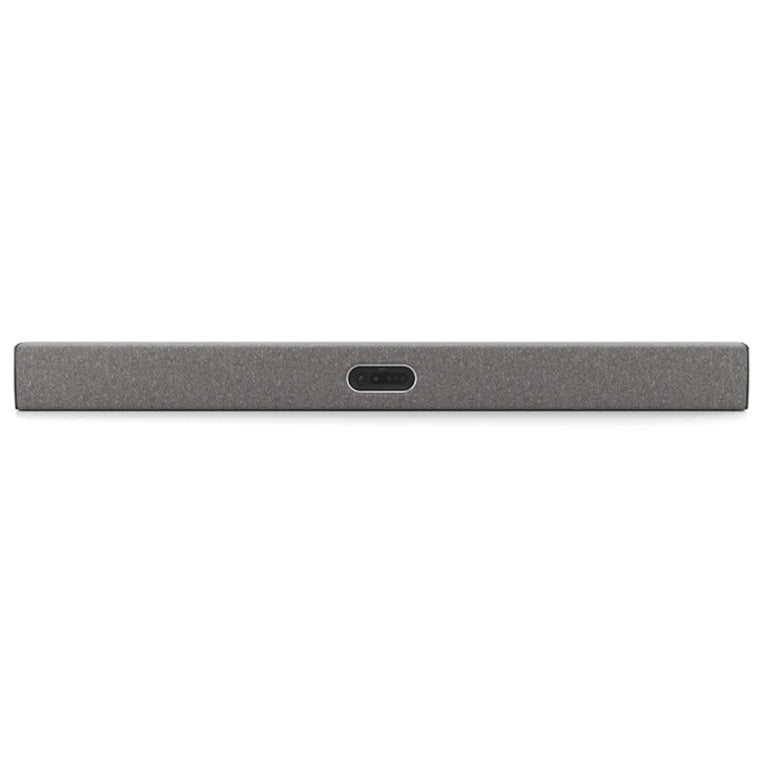

Neat Bar Pro
Go up a notch.
Pro experience throughout any space.
Neat Bar Pro packs a stack of tech into a simple and elegant slimline device. Capable of driving three large screens, it enables you to see people and content together more clearly. Simultaneously, its uncompromising audio and video quality give you an incredibly immersive, natural meeting experience throughout any space.
Speaker system.
Neat Bar Pro is bursting with audio power, thanks to a subwoofer with two opposing drivers for vibration cancellation and three full-range speakers, which produce direct stereo sound throughout any room.
Microphone array.
An advanced pyramid-shaped 16x microphone array ensures clear vocal pick-up, while Neat Audio Processing means no garbled 'double talk' issues or problems with background noise.
Extreme cameras.
Neat Bar Pro is especially ideal for bigger meeting spaces as its camera configuration incorporates a telephoto and wide-angle lens and an image depth sensor which combined deliver 16x zoom.
Simple set-up.
Neat Bar Pro can be placed on a table, or wall mounted either above or below one, two or three screens(*). Everything you need is in the box, including mounts and cables. Simply follow the instructions on the Neat Pad controller, and let Neat Bar Pro adapt to your placement and realign your view.
* Three screens is not yet supported by Microsoft Teams.
Scope for more.
Neat Bar Pro will be audio extensible in a future software update so that you can connect it to existing installations. If needed, you can also add more Neat Pad devices and use them as multiple controllers in your meeting space or schedulers for various entrances(*).
* Multiple consoles and panels are not yet supported by Microsoft Teams
Example spaces
Highlights
Networking & ports
- WiFi
- AC power (internal power supply)
- Ethernet
- USB-C for input when connected to a touch screen (*)
- 3x HDMI out for external screens
- HDMI-in for screen sharing
- Auxiliary port for 3rd party audio extensions (RJ45) (**)
* Feature not supported by Microsoft Teams
** Supported in future software update
*** Needs to be purchased from Zoom or Microsoft
Size & weight
- Width: 35.04 inches (890 mm)
- Height: 3.15 inches (80 mm)
- Depth: 3.15 inches (80 mm)
- Weight: 6.83 pounds (3.1 kg)
Specifications
Technical Specifications
| General | Wakeup sensor (radar)Depth sensor (time-of-flight VGA 60° FOV)Orientation sensor (accelerometer)Ambient light sensorCamera LEDSystem LEDTripod mount compatible (1/4-20 UNC threads)Table stand, wall mount and screen mountSecurity lock slot (Kensington compatible)Secure bootTriple screen support (*)Sensors for temperature, humidity and air quality (*) |
|---|---|
| Audio | Speakerbox for maximal tonal range with minimal distortion3 full-range speakers ready for directional and stereo soundWoofers with two opposing drivers for vibration cancellation4 tracking mics16 microphones in a beamforming arrayHardware accelerated audio processingUltrasonic support for wireless content sharingEcho cancellationNoise suppressionAutomatic gain controlDereverberation |
| Video | Pro 100 MP camera system with wide and tele camerasWide camera: 50 MP, ƒ/2.8 aperture, 113° horizontal field of viewTele camera: 50 MP, ƒ/1.8 aperture, 70° horizontal field of viewHybrid zoom up to 16xAutomatic people framingHardware accelerated video encode and decodeDistortion correctionNoise reductionChromatic aberration correctionAutomatic white balance and color correctionPeople video resolution: Up to 1080p / 30Content video resolution: 720p / 60, 1080p / 30 |
| Electrical and environmental requirements | 100-240V ~ 50/60Hz 1.2AAmbient operating temperature: 32° to 95° F (0° to 35° C)Storage temperature: -4° to 140° F (-20° to 60° C)Relative humidity: 10% to 90%Built-in power supply |
| Power consumption | Idle: 6WIn call: 8-15W |
| Neat Bar Pro | HDMI cable (6.5 feet / 2 meters)Ethernet cable (9.8 feet / 3 meters)Power cable (9.8 feet / 3 meters)Mount adapter, wall mount, screen mount and table stand4 × M8 screw (0.94 in / 24 mm) for VESA mount4 × M6 screw (0.94 in / 24 mm) for VESA mount2 × spacer (to secure parallel TV mount)1 × 5 mm hex key for the screen mount1 × 2 mm hex key for the mount adapter2 additional screw bags for dual or triple screen setup(2 ×):4 × M8 screw (0.94 in / 24 mm) for VESA mount4 × M6 screw (0.94 in / 24 mm) for VESA mount4 × spacer (to secure alignment of all screens) |
| What you need | Internet connectionDisplay (16:9 aspect ratio) with 1080p resolution or betterLicence for Zoom Rooms or Microsoft Teams (***) |
| Brand | NEAT |
|---|---|
| Product Type | Computers & Tablets > Industrial PCs & IoT > IoT Gateways |
| Weight | 0.5 kg |
