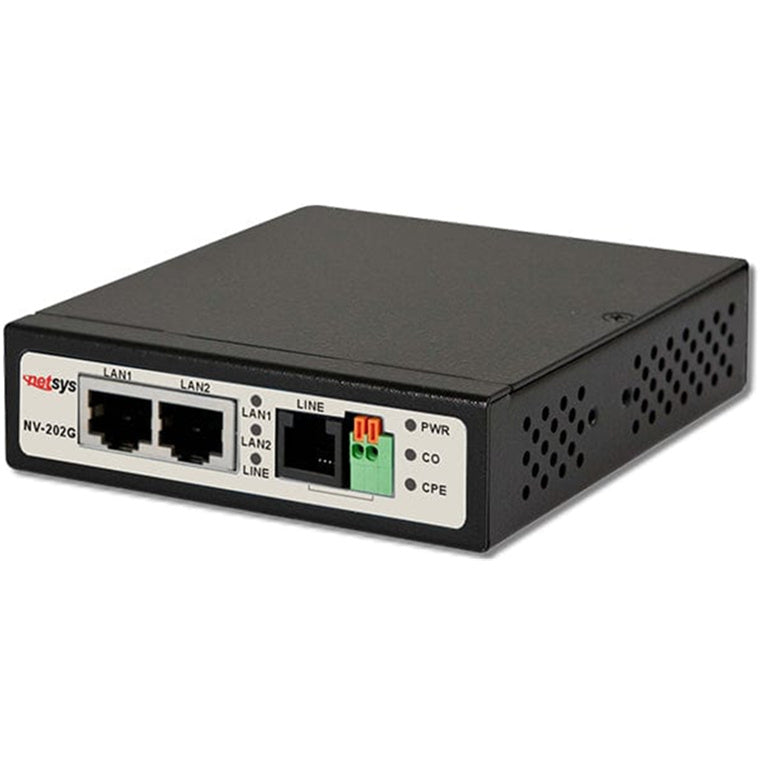

NETSYS NV-202G - 2 Giga LAN VDSL2 Extender. Symmetric LAN bridge copper. 100Mbps bridge over single
NETSYS NV-202G - 2 Giga LAN VDSL2 Extender. Symmetric LAN bridge copper. 100Mbps bridge over single
NETSYS NV-202G - 2 Giga LAN VDSL2 Extender. Symmetric LAN bridge copper. 100Mbps bridge over single
NETSYS

NETSYS NV-202G - 2 Giga LAN VDSL2 Extender. Symmetric LAN bridge copper. 100Mbps bridge over single

SKU: NV-202G ● In Stock
$210.43
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

- Supports RJ-11/Terminal Block combo for Line port.
- Supports high bandwidth up to 160Mbps symmetric over Line ports
- Supports 2 10/100/1000m LAN ports
- Supports long reach mode up to 3 km with 24 gauge phone wire
- Supports auto speed for Line port and Interleave mode selectable through CO side DIP switch
- DIP switch with CO and CPE mode selectable
- Supports long packet size up to 1536 bytes
- Supports Surge protection
- Supports wall mounting
- Supports DIN-Rail mount installation (Optional)
- Compact size and metal case design
- Supports point-to-point applications
- Supports G.INP function, which enhances performance by mitigating noise and ensuring more reliable connections.
- NV-202G is fully compatible with NV-202

Specifications

Technical Specifications

Cable Connections RJ-45 (Ethernet): Category 3~6 UTP/STPRJ-11/Terminal Block (VDSL2): Twisted Pair phone or network grade cable

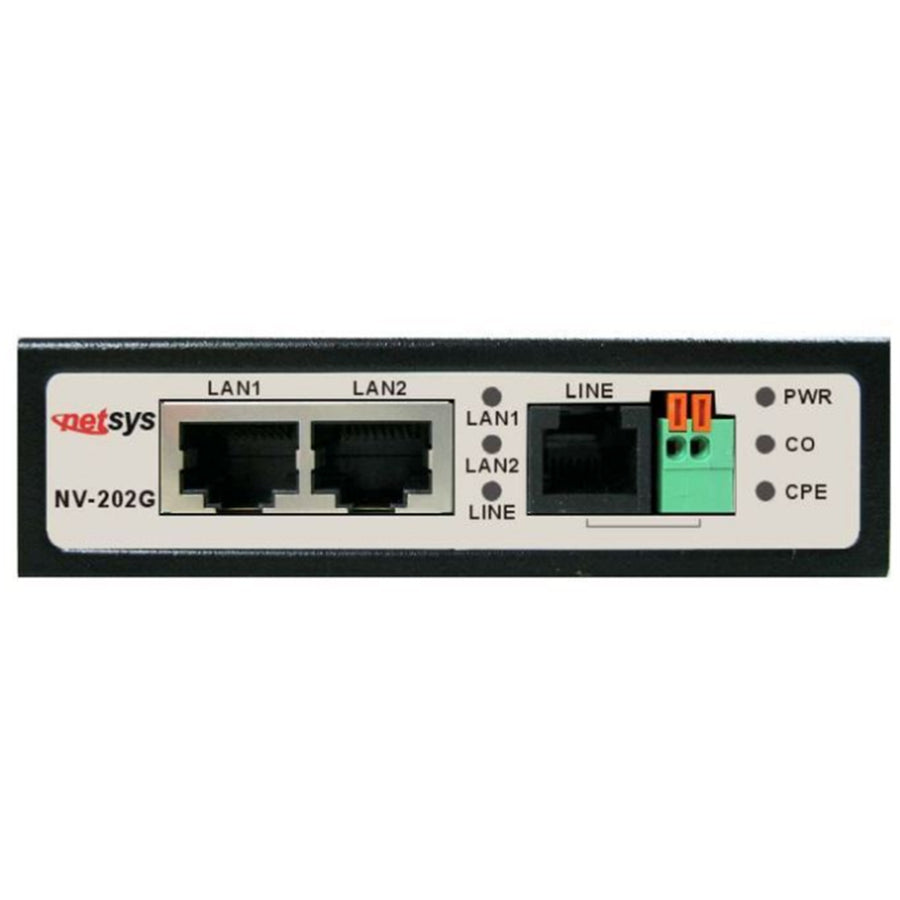

LED Indicators 1 x Power LED2 x Link/Active Status for Ethernet port1 x Link/Active status for SFP Slot1 x Link LED for VDSL2 (Line) Port1 x CO Mode indicator LED1 x CPE Mode indicator LED
VDSL2 Line Code Discrete multitone (DMT) modulation
Typical Power Consumption 5 W
Power Requirement: Input Voltage 12VDC / 1A (Commercial-grade Power Adapter)
EMC EMI Compliant: FCC class AEMS Compliant: CE mark
Operating Temperature 32°F ~ 122°F(0°C ~ 50°C)Fanless, free air cooling
Storage Temperature -4°F ~158°F (20°C ~ 70°C)
Humidity 10% to 90% (non-condensing)
Mounting Method Desktop or Under Counter
Dimensions 3.74" X 4.33" X 1.06" (95 mm X 110 mm X 27 mm)
Power Requirements External Switching Power Adapter(Input: 100~240VAC, 50/60Hz Output: 12V/1A)
Agency Compliance FCC Part 15 Class A, CERoHS compliant
