NVS8-8MD4 - Reolink 8MP 4K+8 Channel NVR Surveillance System with Built-in2TB HDD Range
NVS8-8MD4 - Reolink 8MP 4K+8 Channel NVR Surveillance System with Built-in2TB HDD Range
Features

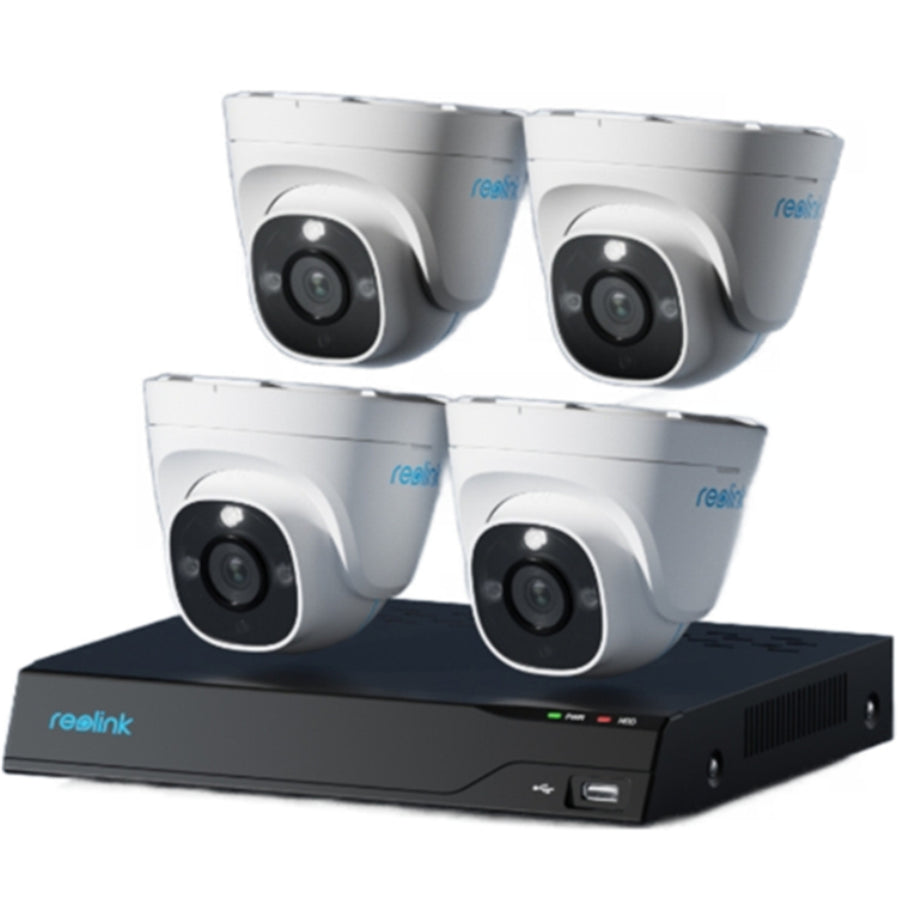

Intelligent 4K UHD Kit for Complete Surveillance
- Power over Ethernet
- Person/Vehicle Detection
- With 8-Channel NVR
- 2TB HDD Built-In
"A Person/Vehicle Is Detected."
With advanced detection technology, NVS8-8MD4 is capable of distinguishing people and cars from other objects, so you'll receive alerts that really matter. Reliable and free of charge!
Like Looking out of the Window
The sparkling 4K Ultra HD (3840*2160) camera is engineered to deliver insanely flawless videos in astounding clarity and superfine sharpness. It streams and records everything in 4K, adding an extra layer of protection by more visible details and rich colors. When you view videos on Reolink App/Client, it feels like you are watching on the scene.

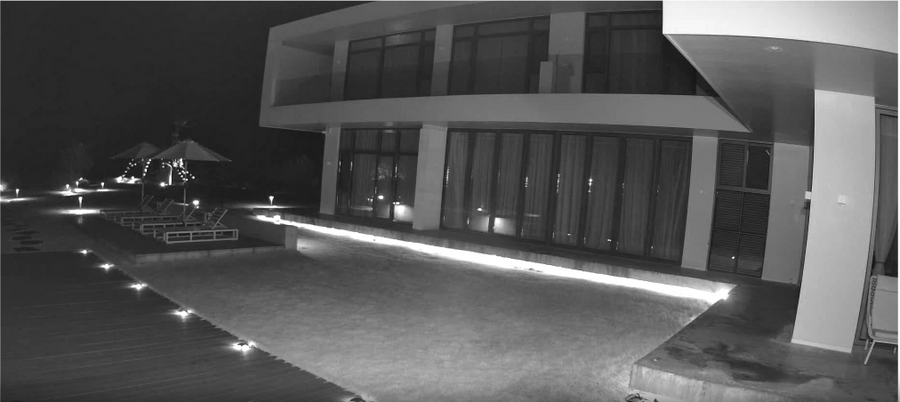

Keep a Watchful Eye at Night
Each camera of the functional kit is equipped with 18pcs infrared LEDs, which makes it possible to detect activity up to 100 feet in darkness. It captures critical evidence even in low-light conditions, watching over your property from day to night.

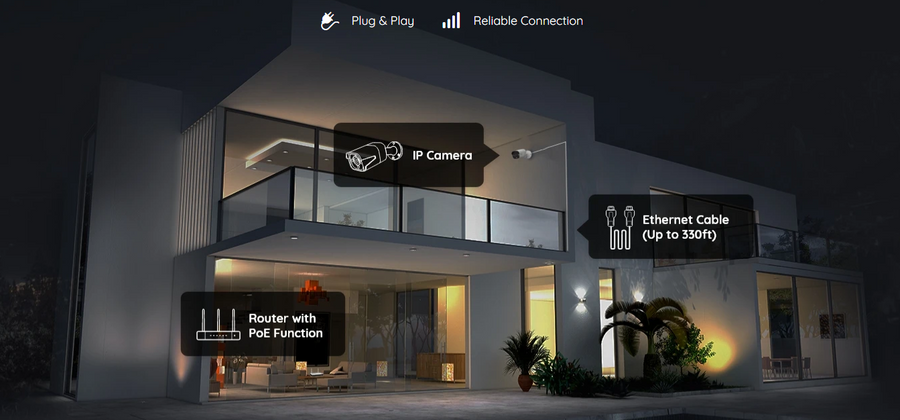

PoE - Faster, Easier & Lower-Cost Installation
Thanks to Power over Ethernet (PoE) technology, each camera of this security system can transmit videos and be charged simultaneously via only one network cable. You can install these cameras quickly and nicely.

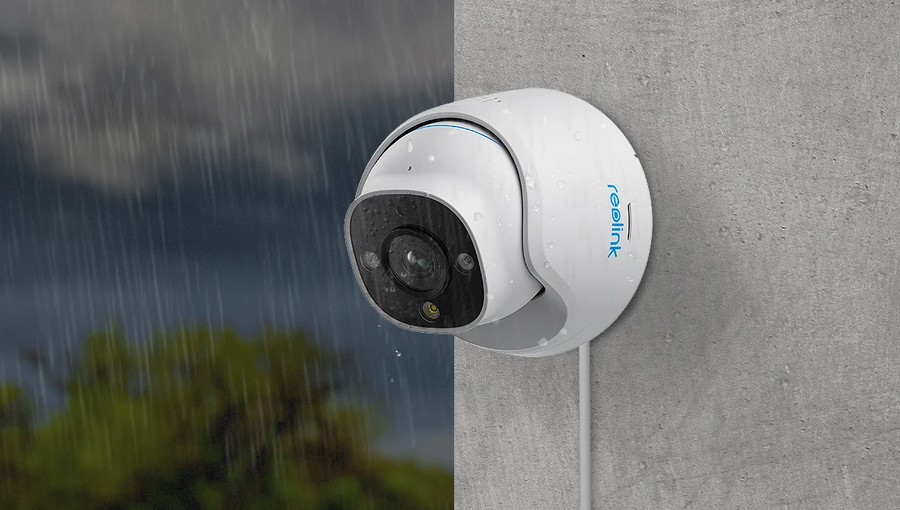

Harsh Elements Are Not Troubles
The sturdy and stylish cameras in this kit are featured with an IP67 weatherproof rating. Enduring any severe weather condition, they are designed for indoor and outdoor use. You can mount the camera anywhere you want.

Your World at Your Fingertips
Staying tuned with your home or business has never been so easy. With a few clicks on Reolink App or Client, watch live feed, be informed of the emergency, replay key moments and more - from anywhere, anytime.

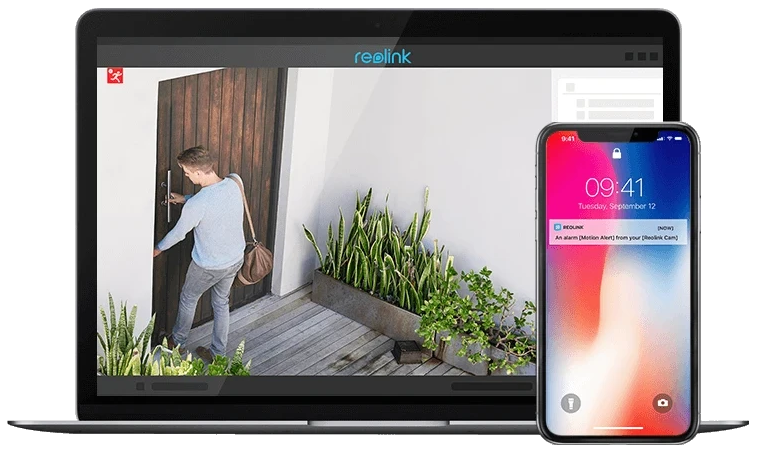

Motion Alerts
Once something suspicious is detected, the cameras will inform you by sending to your device an instant push notification or email. Know what's happening all the time.

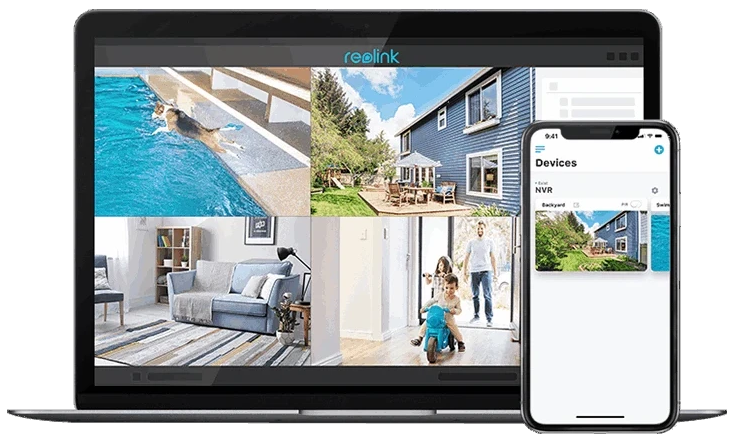

Multi-Cam Live Feed
See the live feed of multiple cams on the same screen. Easier to have an overview of your property.

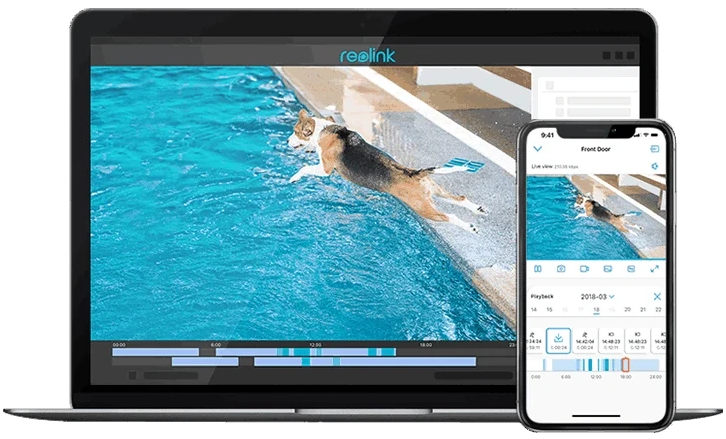

Smart Playback
You can not only replay saved videos to find key information but also filter the video by detection modes and control the timeline to quickly locate what you want to see.

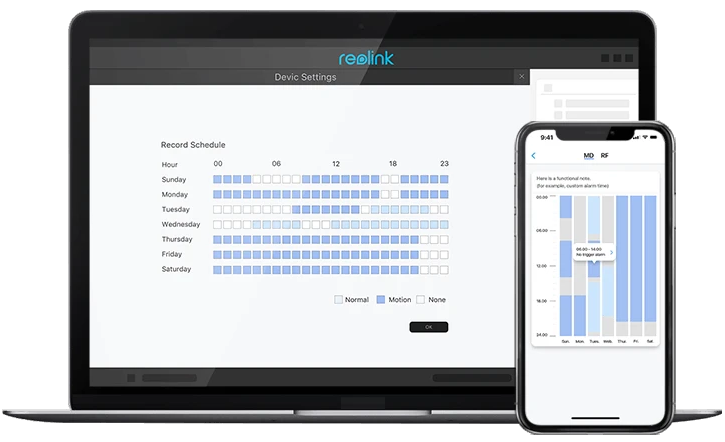

Record Scheduling
You can choose to have the camera record 24/7 continuously, only when the movement is detected, or in accordance with your daily schedule.

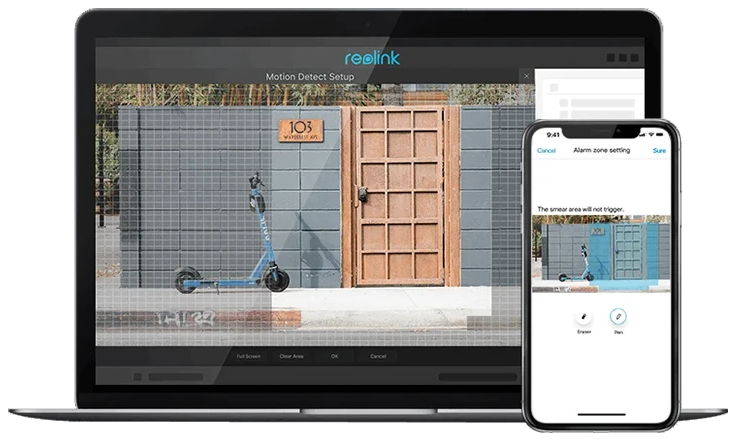

Motion Zone
You can customize the motion zone to your liking, deciding where objects' movements will be detected and where they will not.

Specifications
Technical Specifications
| Image Sensor | 1/2.49" CMOS Sensor |
|---|---|
| Video Resolution | Default: 3840x2160 (8 megapixels) @20fps |
| Lens | f=4.0 mm fixed, F=2.0, with IR cut |
| Video Format | H.265 |
| Field of View | - Horizontal: 87°- Vertical: 44° |
| Day & Night | IR-cut filter with auto-switching |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) |
| Frame Rate | - Mainstream: 2fps - 20fps (default: 20fps)- Substream: 4fps - 15fps (default: 10fps) |
| Code Rate | - Mainstream: 4096Kbps - 8192Kbps (default: 6144Kbps)- Substream: 64Kbps - 512Kbps (default: 256Kbps) |
| Audio | Audio recording |
| Smart Alarms | Person detection/vehicle detection/motion detection |
| Recording Modes | Motion-triggered recording (default); scheduled recording, 24/7 recording |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V=1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Audio | Built-in microphone |
| Temperature | Operating temperature: -10°C~+55°C (14°F~131°F) |
| Humidity | Operating humidity: 10% ~ 90% |
| Waterproof | IP67 |
| Dimension | F105*93mm |
| Weight | 480g |
| Hardware | V2 |
| IP Video Input | PoE IP camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| Display Resolution | - HDMI: 4096*3072, 3840*2160, 1920*1080, 1440*900, 1280*1024, 1280*720, 1024*768- VGA: 1920*1080, 1440*900, 1280*1024, 1280*800, 1280*720, 1024*768 |
| Audio output | 1-channel, RCA |
| Video Format | H.264, H.265 |
| Live View/Playback Resolution | 7680×2160, 4608×1728, 4512×2512, 4096×3072, 3840×2160, 2560×2560, 2560×1920, 2560×1440, 2048×1536, 2304×1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| SATA | 1 x SATA interface (1 x Seagate 2TB HDD included) |
| External HDD | 1 eSATA interface for HDD |
| Capacity | Up to 12TB (Max. 6TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | - 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN- 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V/1.875-2.5A |
| Power Consumption | <10W (without HDD & PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 260 x 41 x 230mm |
| Weight | 1.4kg |
