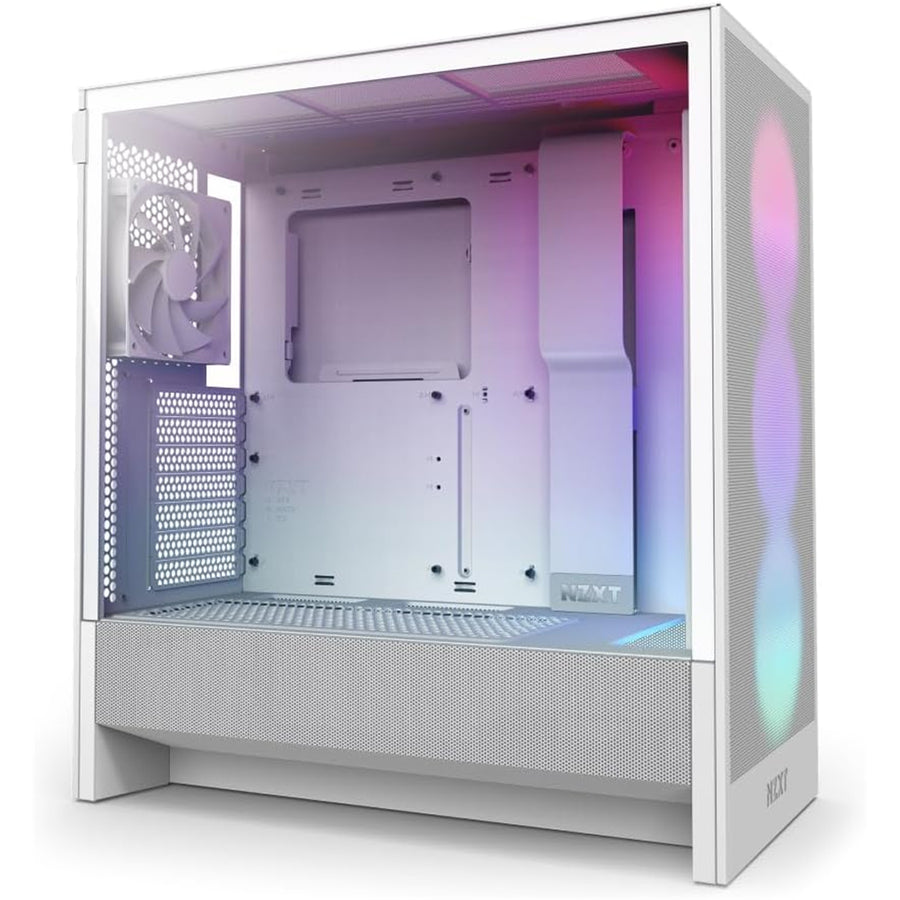

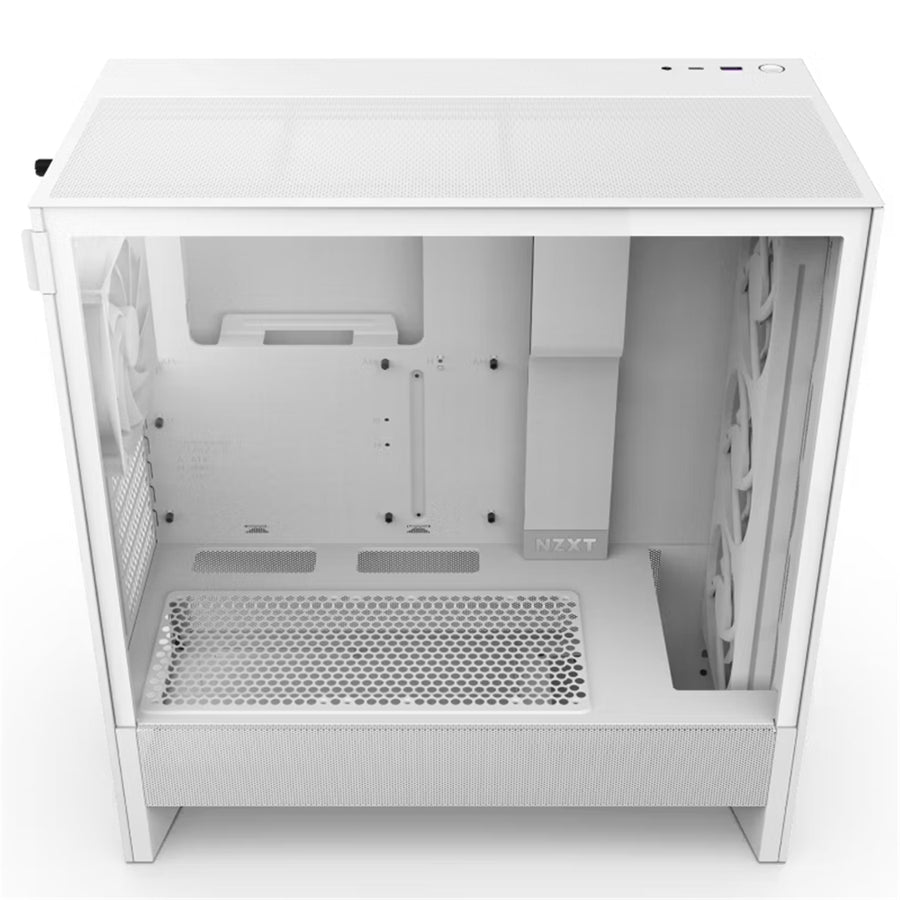

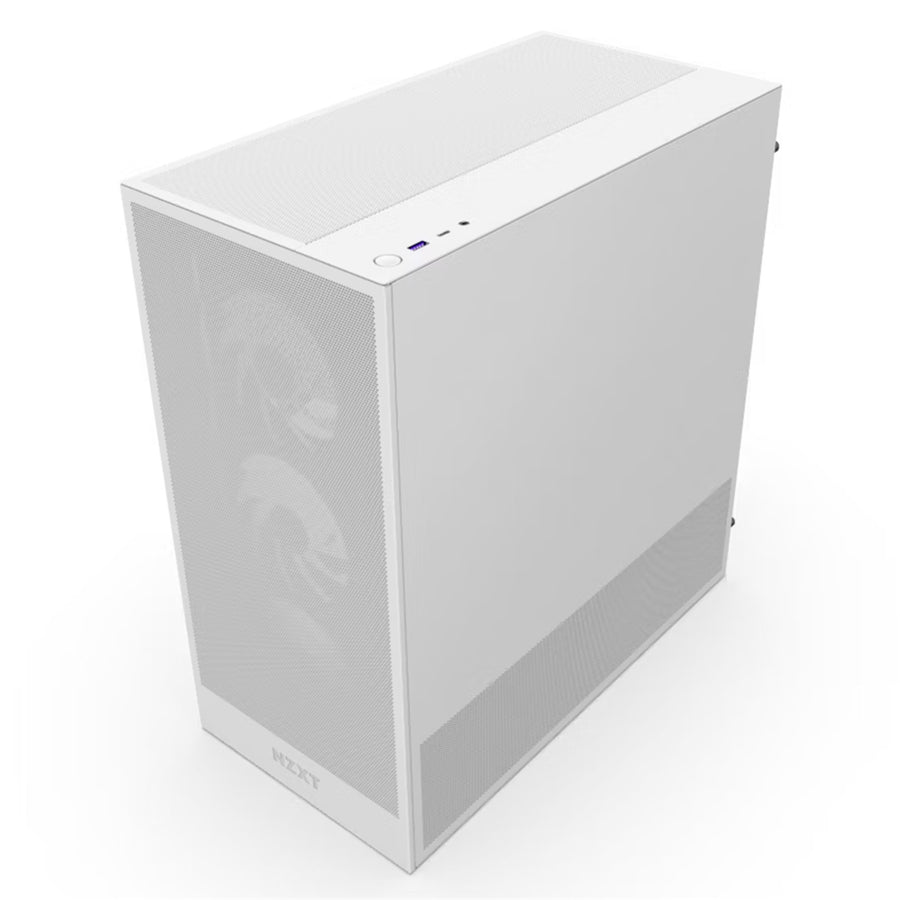

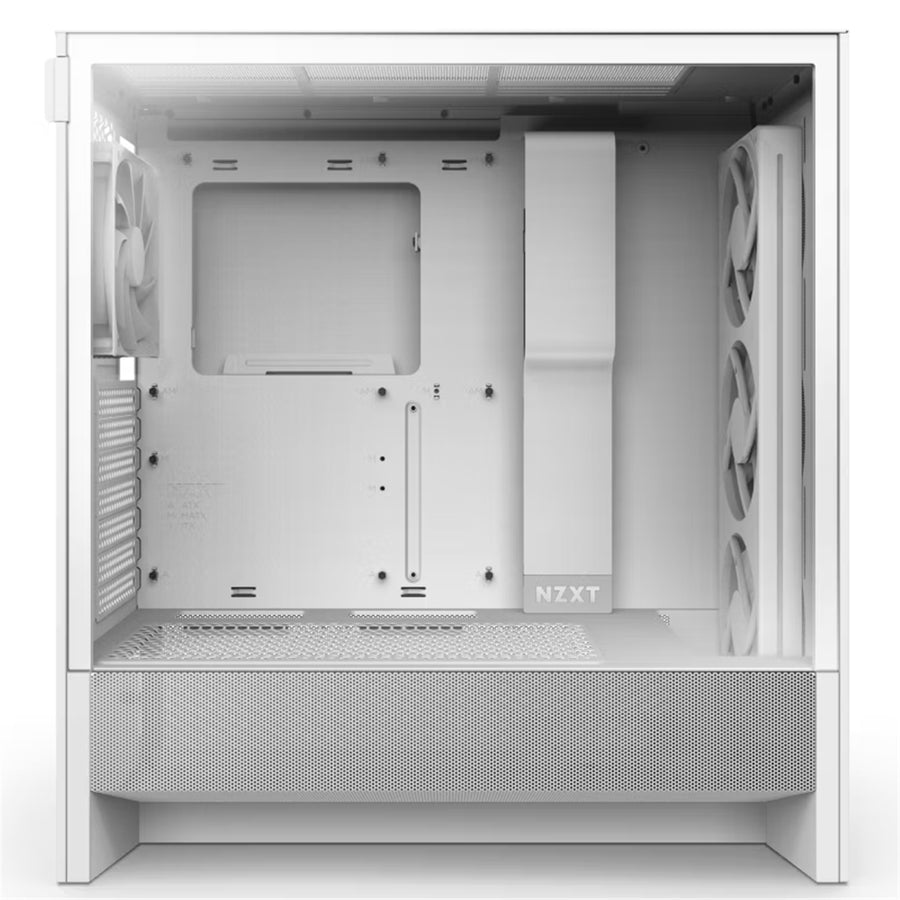

NZXT H5 Flow Tempered Glass ATX Mid Tower Gaming Case - White RGB 2024 Edition
Features
H5 Flow RGB - Compact ATX Mid-Tower Airflow Case with RGB Fans
The H5 Flow RGB boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support-all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with a front-mounted F360 RGB Core (CV) single-frame fan and rear-mounted F120Q (CV) fan for strong out-of-the-box cooling and lighting.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
H5 Flow RGB
Compact ATX mid-tower chassis with high airflow, optimal GPU cooling, and large radiator support.
More Air to the GPU
Mesh PSU shroud maximizes air intake from two 120mm bottom-mounted fans (not included).
Fits Large Radiators
Supports a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling setups.
Optimized for Airflow
Ultra-fine mesh panels facilitate exceptional airflow and help filter pesky dust particles.
Pre-Installed Fans*
Front-mounted F360 RGB Core fan and rear F120Q fan for out-of-the-box cooling and lighting.
*Case Version (3-pin DC)
Easy Cable Management
Effortlessly route and conceal cables using the wide channels, hooks, and straps.

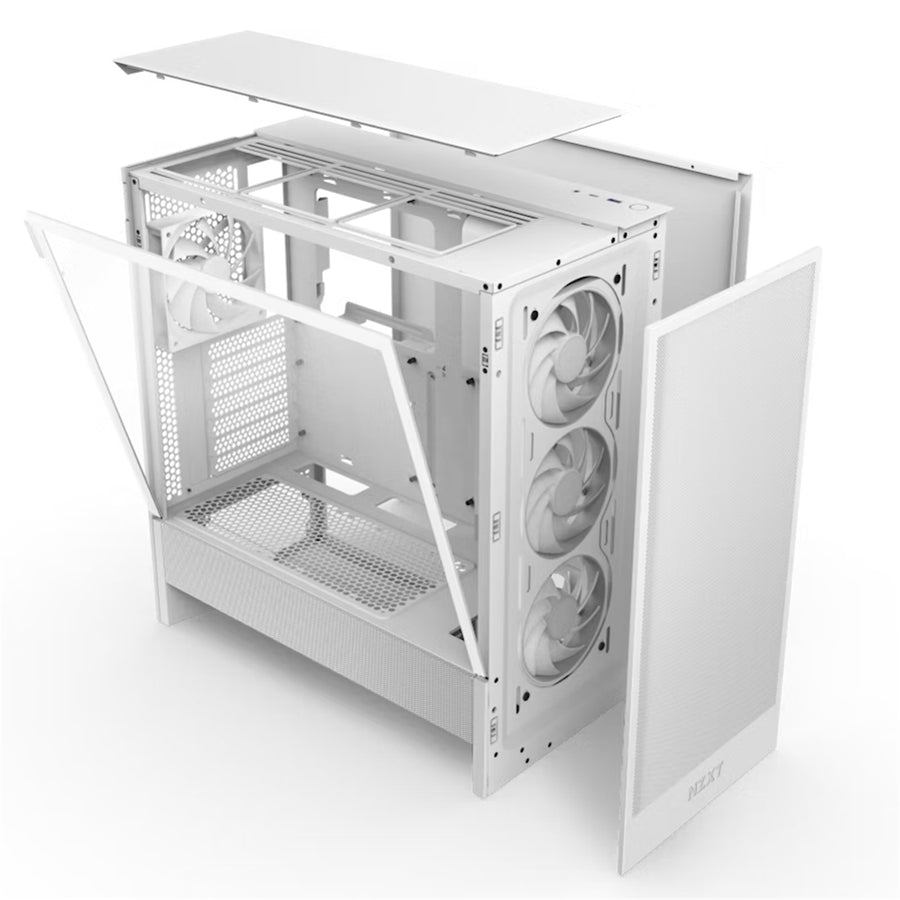

Tool-less Access
Easily open up the front, side, and top panels without any tools.
Strong and Sleek
Crafted from thick steel and tempered glass for long-lasting quality.
Specifications
Technical Specifications
| Motherboard Support | E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX |
|---|---|
| Enclosure Type | Mid-Tower |
| Case Material | SGCC Steel, Ultra-Clear Tempered Glass (White) |
| Height (with feet) | 465 mm / 18.31 in |
| Width | 225 mm / 8.86 in |
| Depth | 430 mm / 16.93 in |
| Weight | 7.28 kg / 16.04 lb |
| CPU Cooler Height | Up to 170 mm |
| GPU Length | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Cable Management | Up to 28.7 mm |
| Top Radiator | Up to 240 mm (280 mm with low-profile memory) |
| Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness | Up to 55 mm |
| USB 3.2 Type-A | 1 |
| USB 3.2 Type-C | 1 |
| Headset Audio Jack | 1 |
| Standard | 7 |
| Vertical | 0 |
| 2.5" | 2 |
| 3.5" | 1 |
| Front | 3 x 120 mm / 2 x 140 mm (1 x F360 RGB Core Case Version included) |
| Top | 2 x 120 mm / 2 x 140 mm |
| Bottom | 2 x 120 mm |
| Rear | 1 x 120 mm (2 x F120Q Case Version included) |
| Front | Up to 360 mm |
| Top | Up to 240 mm (280mm with low-profile memory only) |
| Model | F360 RGB Core (Case Version) |
| Speed | 1,700 ± 200 RPM |
| Airflow | 50.1 CFM |
| Static | 1.27 mm-H2O |
| Noise | 23.3 dBA |
| Fan Connector | 3-pin |
| Model | F120Q (Case Version) |
| Speed | 1,350 ± 150 RPM |
| Airflow | 60.2 CFM |
| Static | 1.05 mm-H2O |
| Noise | 24.1 dBA |
| Fan Connector | 3-pin |
| Brand | NZXT |
|---|---|
| Product Type | PC Parts |
