OKINOS Air Cross Tempered Glass ATX Mid Tower Case
Features
Optimized Intake Space
Front PSU and HDD-free bottom maximize airflow, with reverse fan cooling the GPU directly for performance.
5 Pre Installed High-Performance Fans
Enhanced Bottom Cooling Space
HDD moved behind motherboard to keep bottom intake clear for better cooling and easier build.

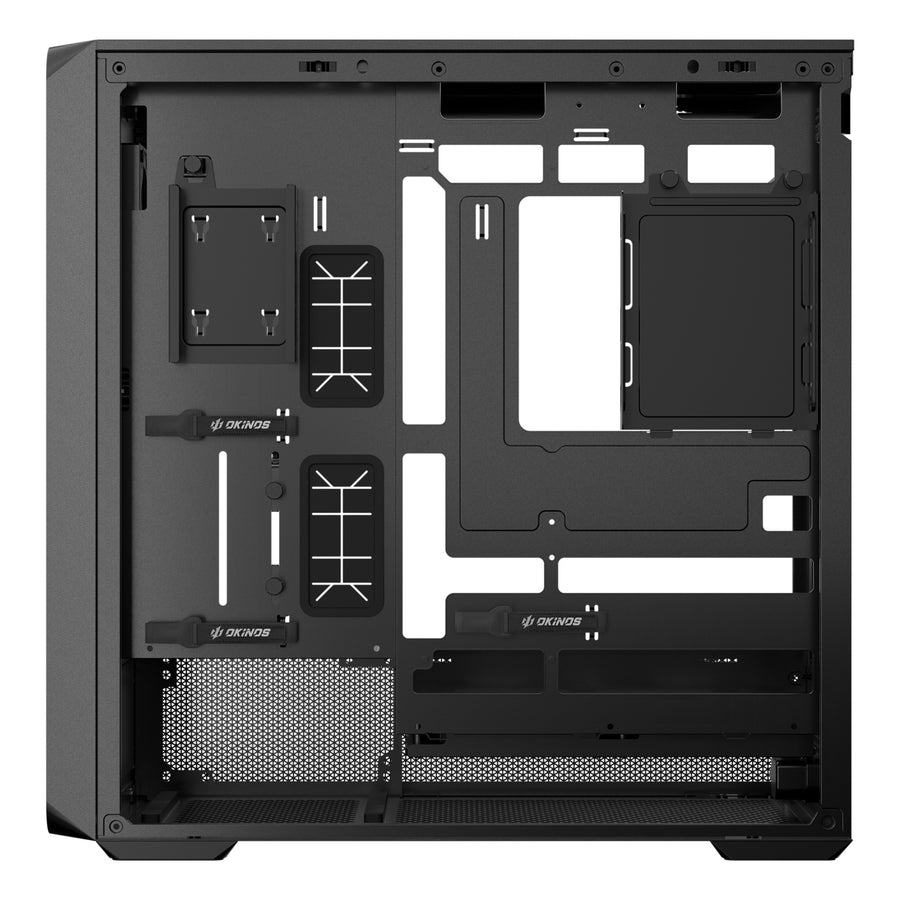

Cable Management Spaces
Cable management spaces are 37mm at the front and 33mm at the back.
Back Connect Design
Back-connect design hides cables for better airflow and a cleaner look, with grommets and Velcro straps for easy, protected cable management.
Mutli-Function Zone
USB ports are primarily for data transfer and not recommended for power charging, as most motherboards USB ports support a maximum voltage of 5V.
Front mounted PSU Design
By moving the PSU to the front, it frees up bottom and rear space, enhancing airflow and vertical cooling.
Power Extension Cable Installation
Tool-Free Design for Fast Builds
Rear Fan Installation
Always install the top 360mm radiator before mounting the rear 140mm fan.
GPU Compatibility
Max. GPU Length ≤ 400mm Perfect fit for 50 Series GPUs.
GPU Support Bracket
Removable GPU support bracket, able to be adjusted up, down, left and right.
Cable Management Routing
Experience Ultimate Cooling Solution
Specifications
Technical Specifications
| Dimensions | 468 x 238 x 462mm (DWH) |
|---|---|
| Form Factor | Mid Tower |
| Materials | Steel + Plastic + Wood |
| Mainboard Support | ATX, Micro-ATX , ITX |
| Front Access & Controls | Power, Reset ,USB3.0 x 2, Type-C 3.2 Gen 2 (10Gbps) x 1, Headphone/Mic Combo Jack |
| Side Panel | 4mm Tempered Glass |
| Expansion Slots | 7 |
| 3.5″ | 1 |
| 2.5″ | 2 |
| Front | 2x140mm |
| Top | 3×120/2x140mm |
| Power Supply Shroud | 2x120mm |
| Rear | 1×120/1x140mm |
| Included Fan(s) | 2 x 140mm H14C PWM Fans at the front + 2 x 120mm H12CR PWM Reverse Fans on the power supply shroud + 1 x 140mm H14 PWM Fan at the rear + 1-to-3 PWM splitter cable |
| Top | 360/280/240/140/120mm |
| Rear | 120mm |
| Max GPU Length | ≤400mm |
| Max CPU Cooler Height | ≤180mm |
| Max PSU Length | (Without cable)≤ 170mm |
| Dust Filter | Bottom |
| Net Weight | 8.17 Kg |
| Gross Weight | 9.74 Kg |
| Brand | OKINOS |
|---|---|
| Product Type | PC Parts |
