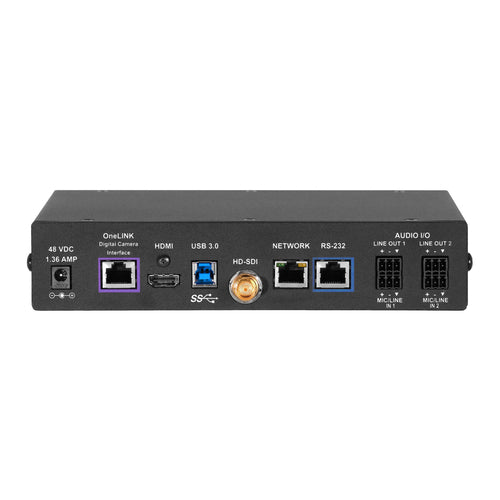

OneLINK Bridge for Vaddio HDBaseT Camera

Brings your Vaddio HDBaseT camera and non-USB audio components into your USB conferencing environment for traditional videoconferencing quality, without the traditional price tag.

Compatible with RoboSHOT (4K) 12E and (4K) 30E, RoboSHOT 20 UHD, RoboSHOT 40 UHD, RoboFLIP 4K, DocCAM 4K.

Key Features:
Simple, clutter-free camera extension with HDBaseT technology
Power, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)
Bridges audio and video for easy soft-client conferencing
Configurable audio matrix with AEC
Simultaneous HDMI, USB 3.0, IP streaming, and HD-SDI outputs
Up to 1080p/60 resolution available over uncompressed USB


TrainingThis course introduces the OneLINK Bridge and covers its features, specifications and common applications.

More Flexibility for Room Design and Installation

Makes your camera a conferencing camera: OneLINK Bridge connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Skype for Business, Google Hangouts, and Zoom. You get traditional videoconferencing audio quality with soft-client connectivity – and without the traditional videoconferencing price tag.

Sounds complicated – but it's not. This OneLINK Bridge kit simplifies installation by extending power, video and control to your Vaddio HDBaseT camera over a single Cat-5e cable up to 328 ft (100m).

Benefits:
More flexibility in camera placement
HDBaseT interface extends power, video and control up to 328 ft (100 m)
Delivers an uncompressed USB 3.0 media stream for high-definition cloud conferencing
Connect to any cloud conferencing application, such as Google Hangouts, Skype for Business, WebEx, Zoom and others
Plug and play usability for BYOD conferencing environments
Intuitive browser-based user interface for configuration and system administration


This Package Includes:
OneLINK Bridge Interface
Quick-start card
48V power supply with AC cord set(s)
4 qty 3-position phoenix-style connectors
6' (1.8m) USB 3.0 cable, type A to B
EZCamera RS-232 Control Adapter


New! Vaddio Deployment Tool

Simplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà! – remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.
