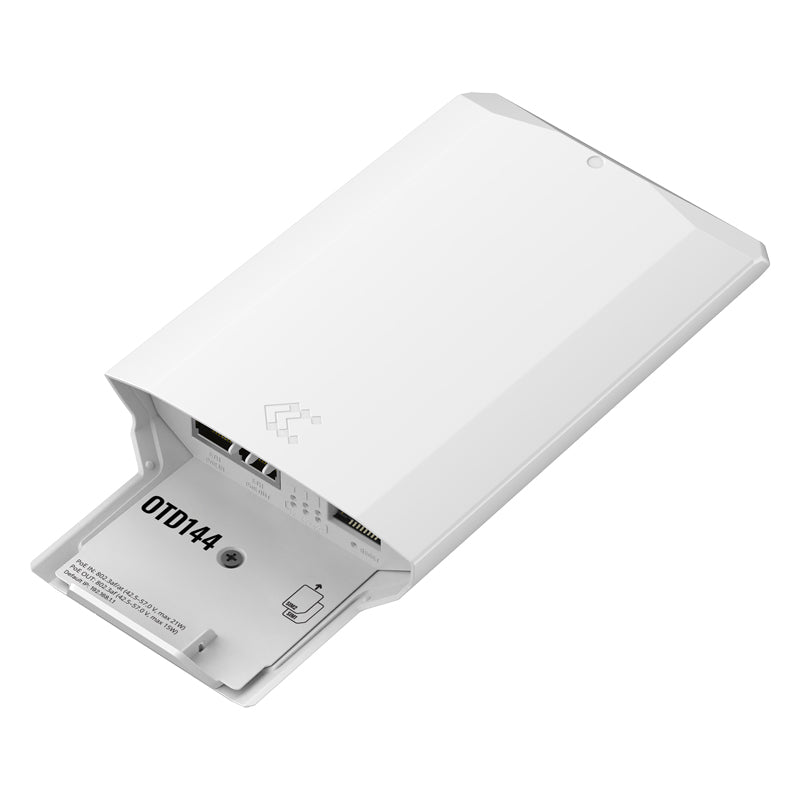

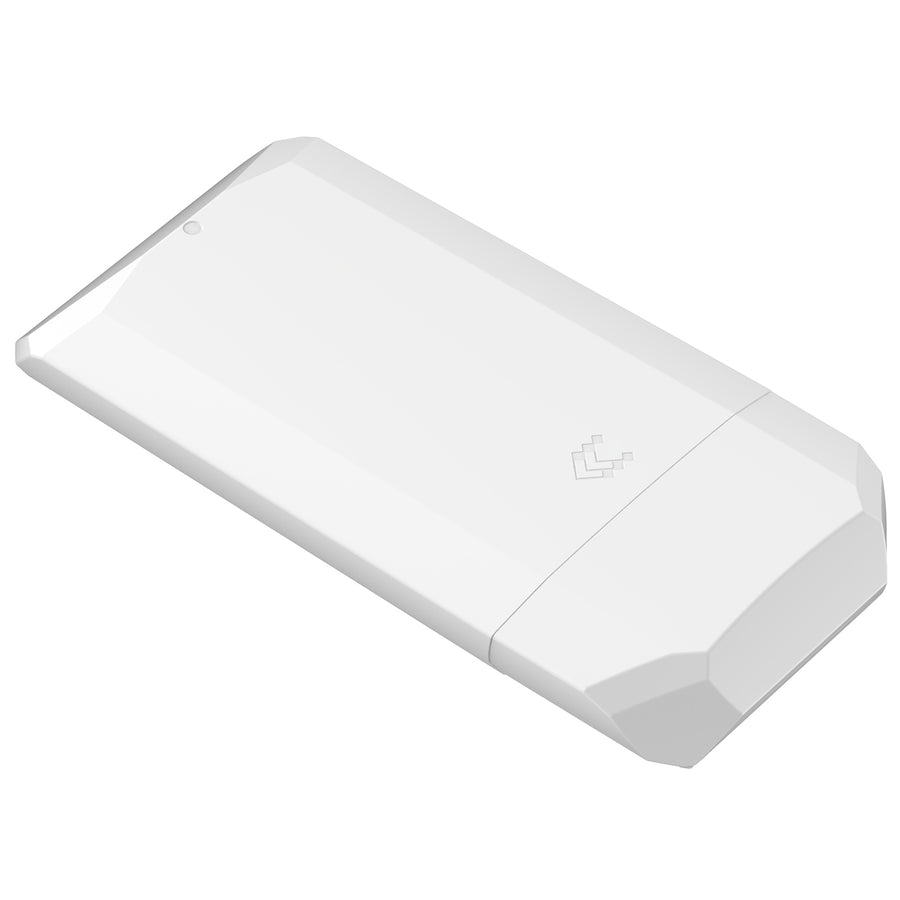

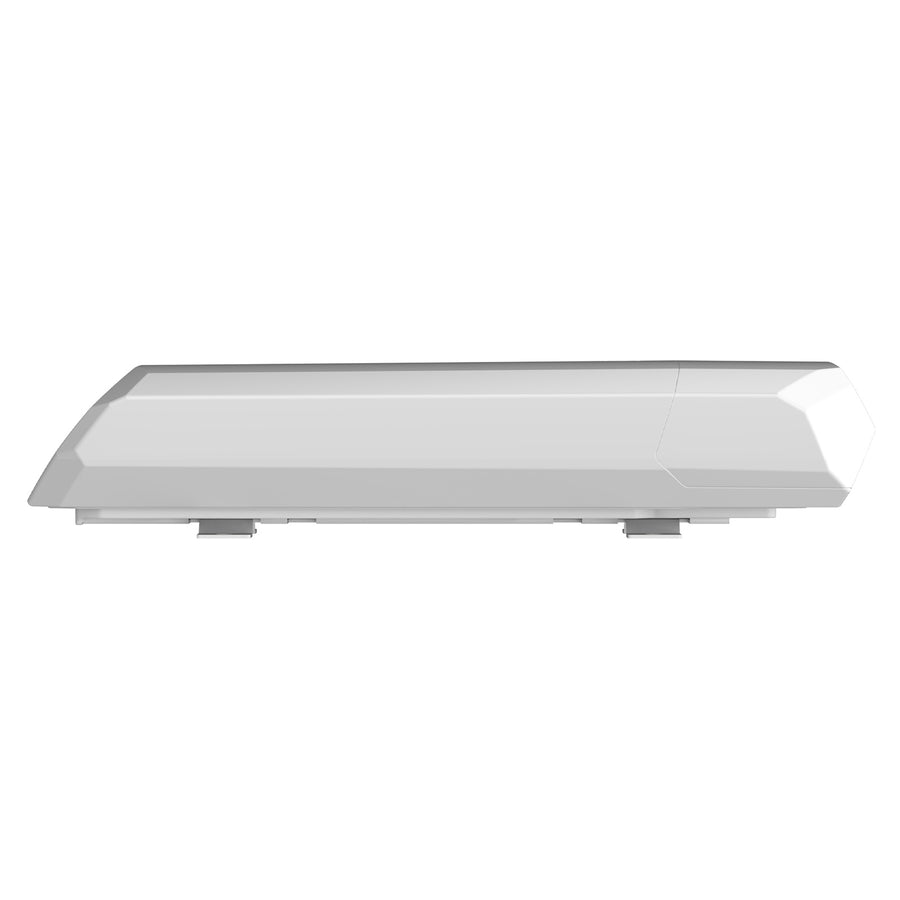

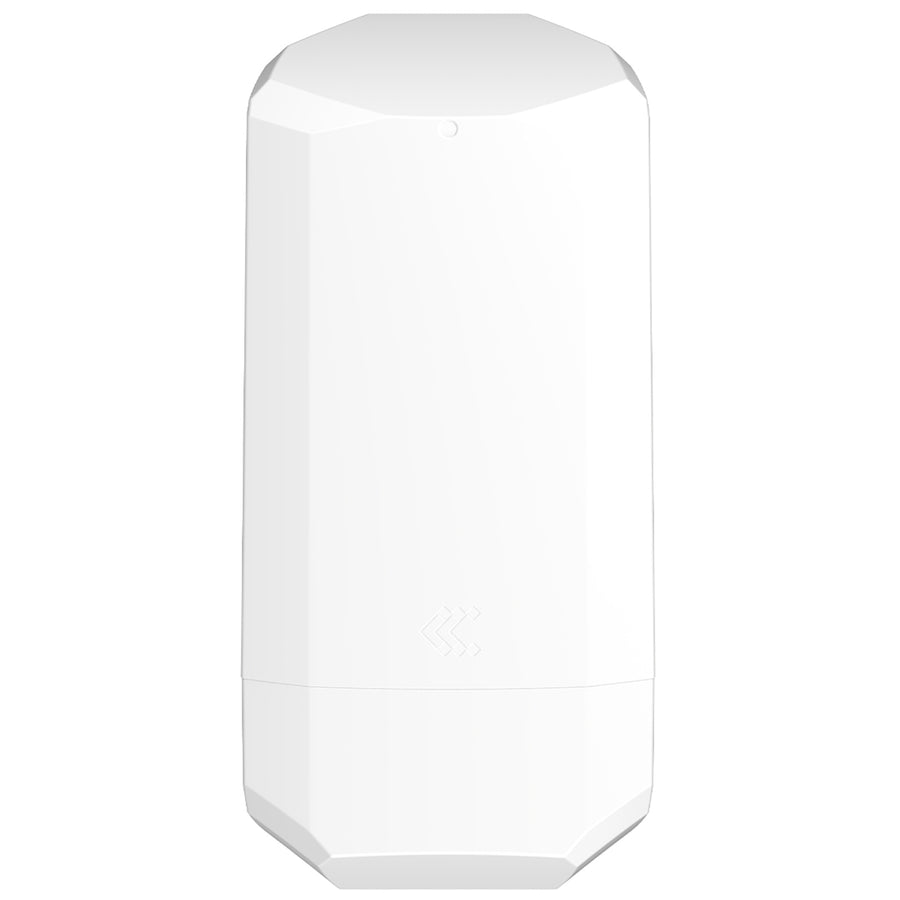

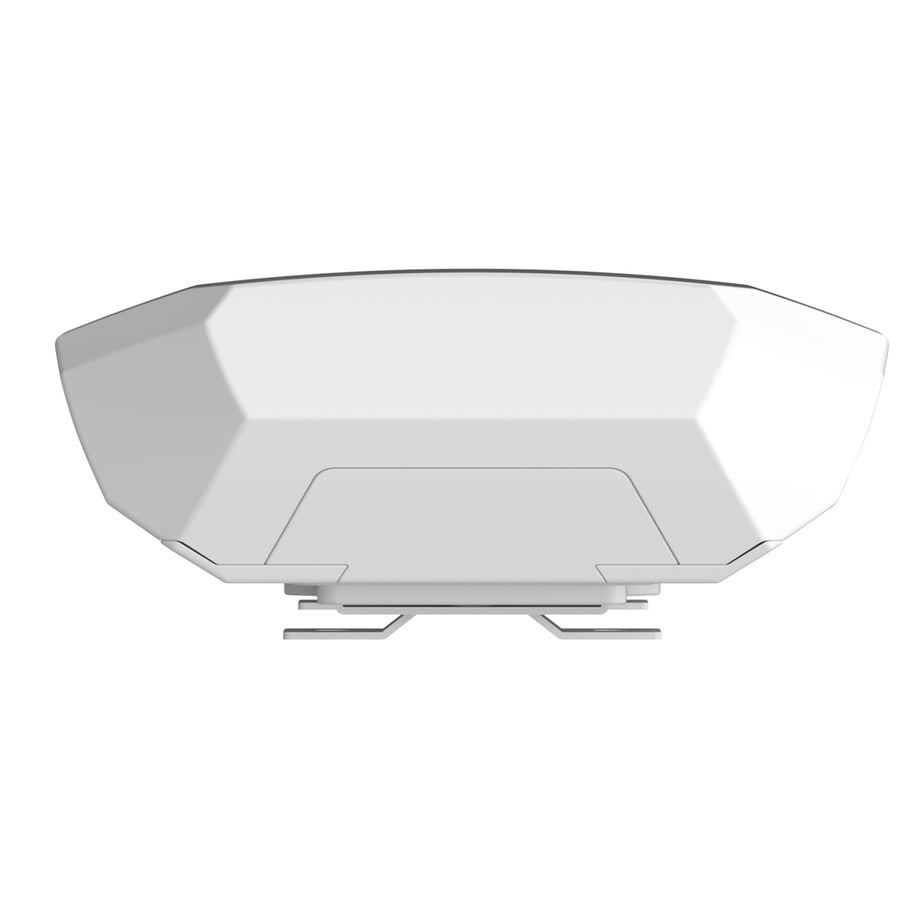

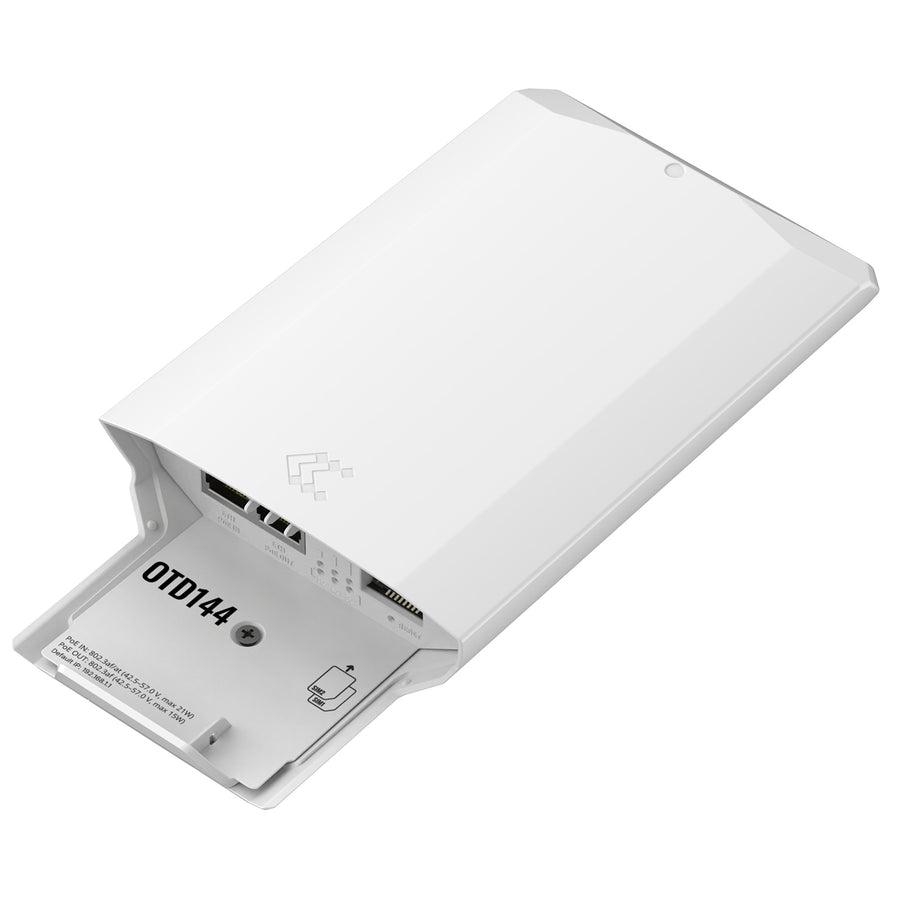

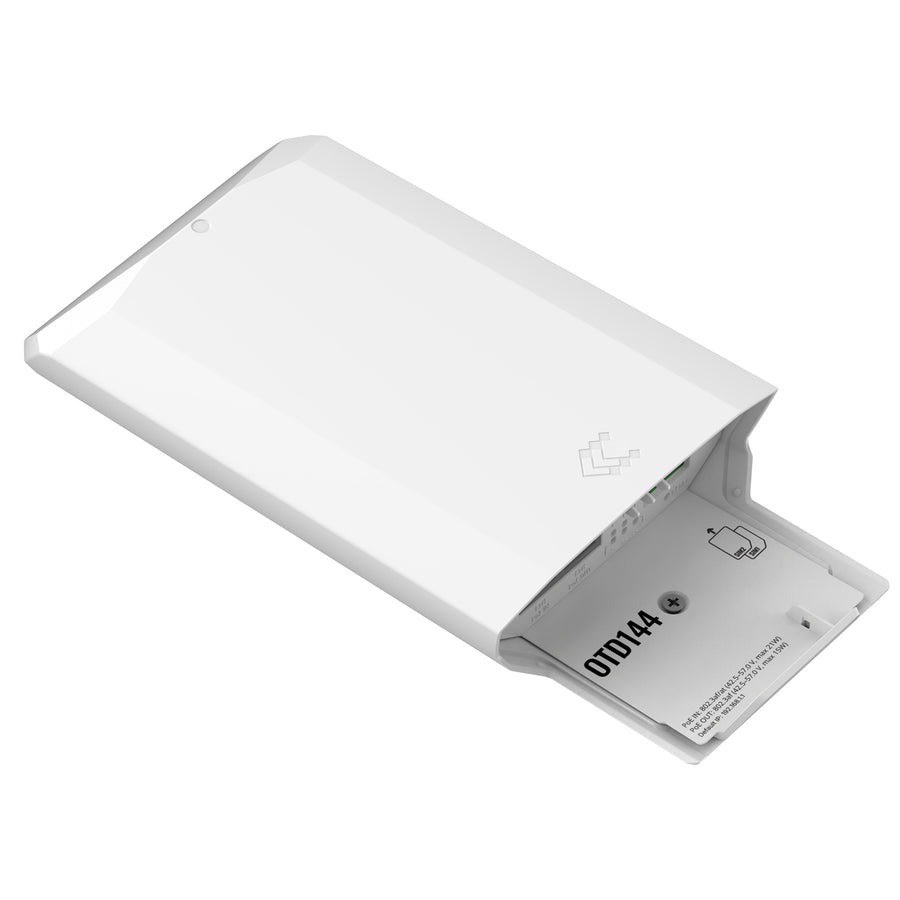

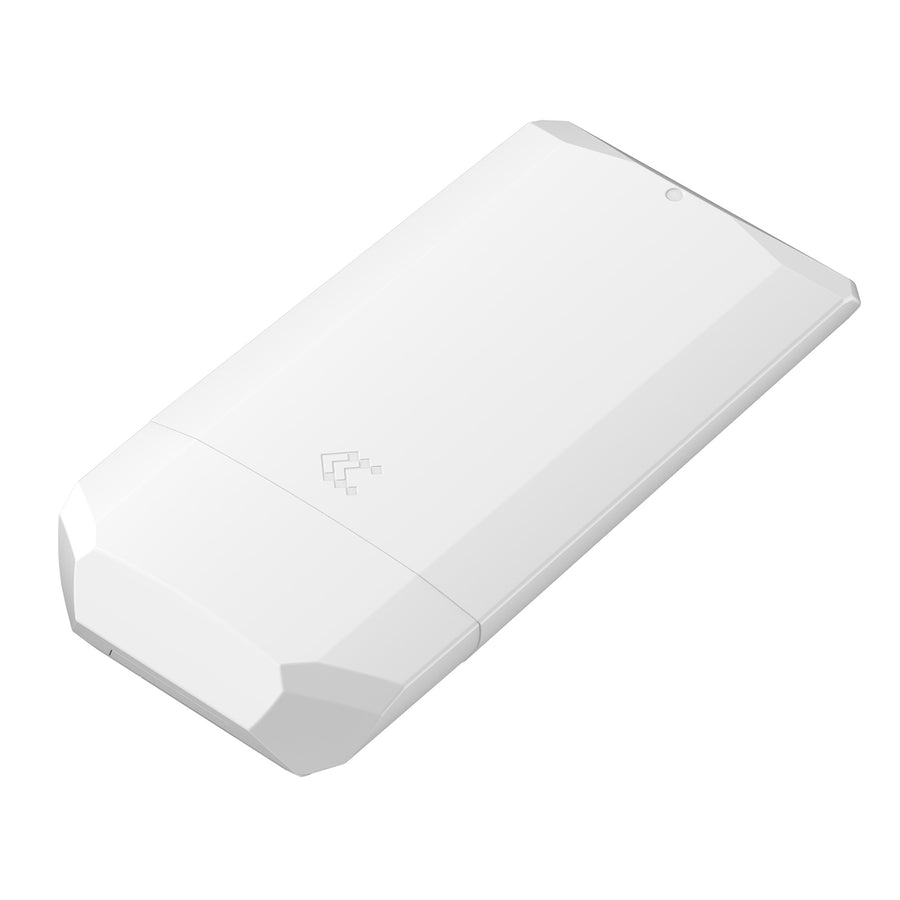

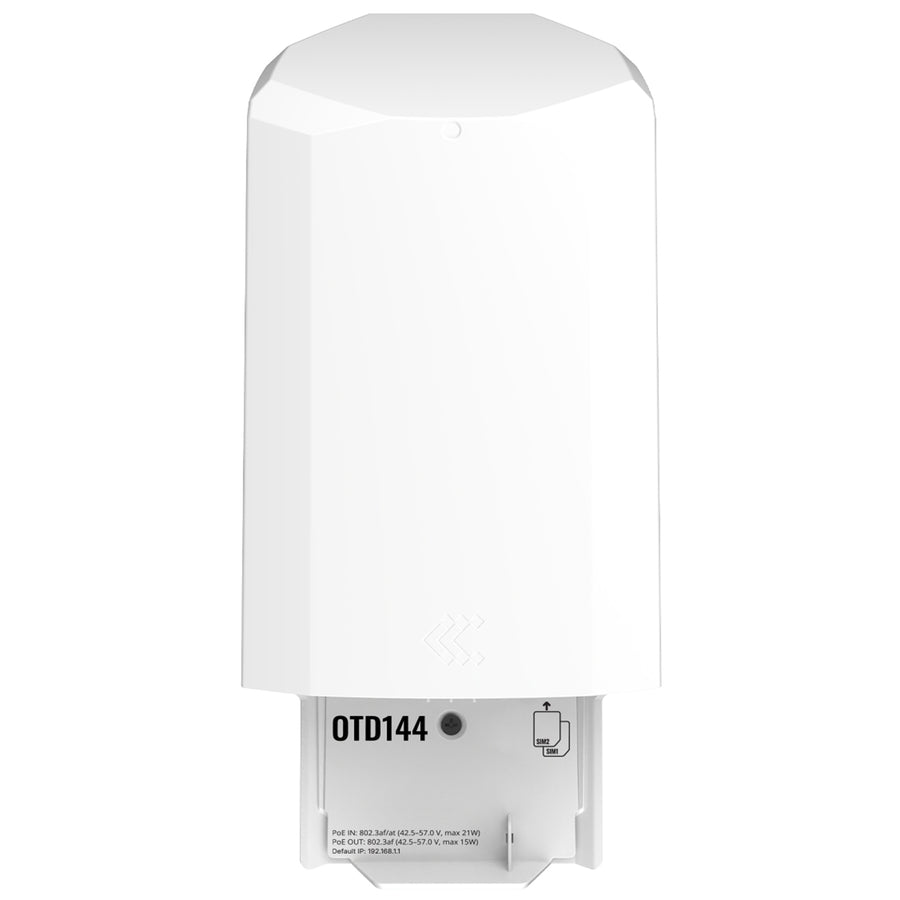

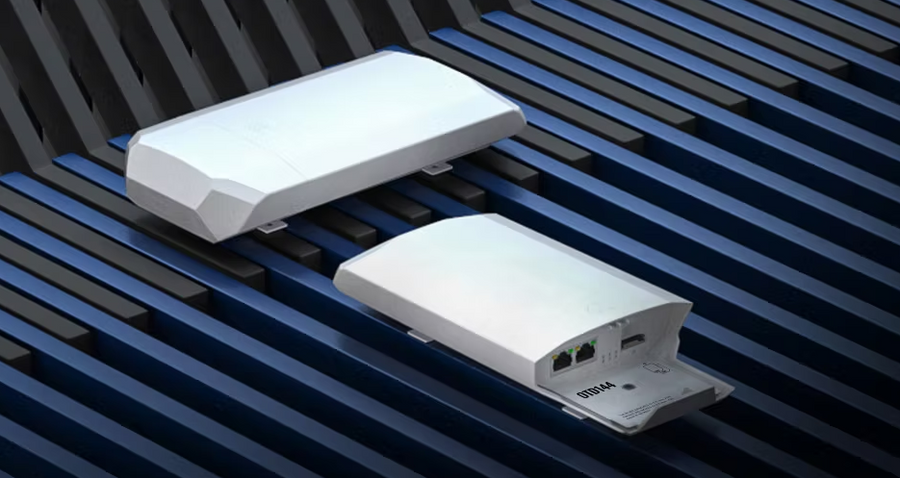

OTD144 - Teltonika OTD144 LTE Cat 4 Outdoor Cellular Router with Wi-Fi
Features
Teltonika OTD144 Outdoor Wi-Fi Router

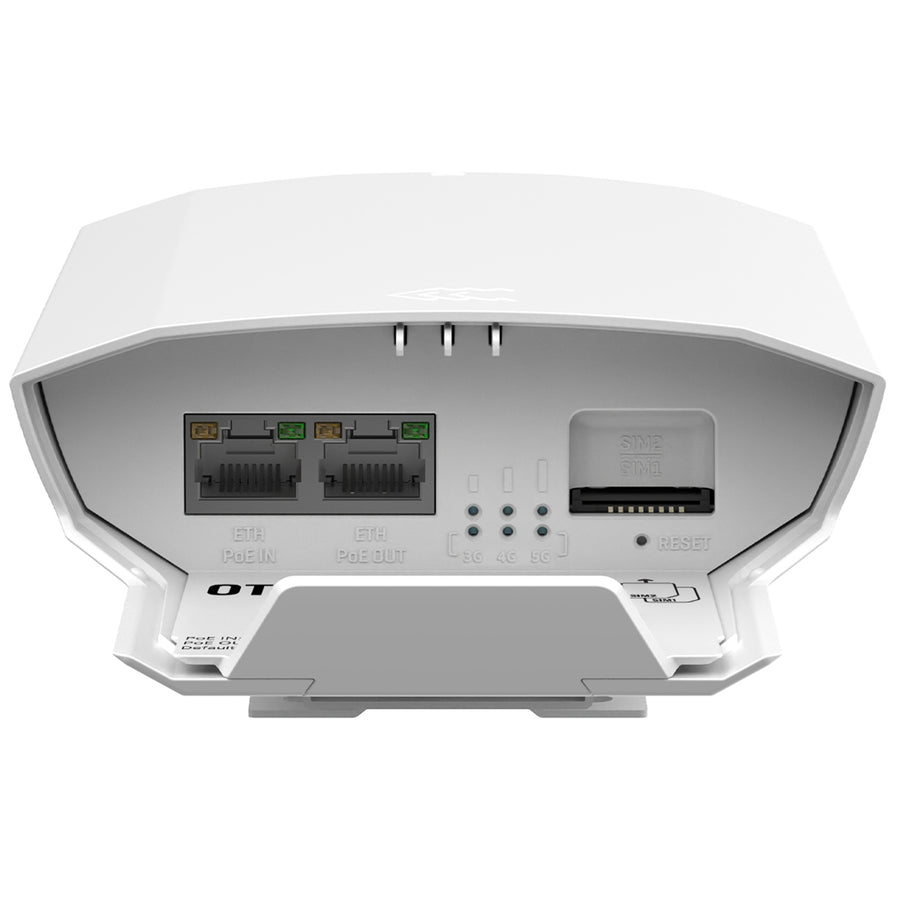

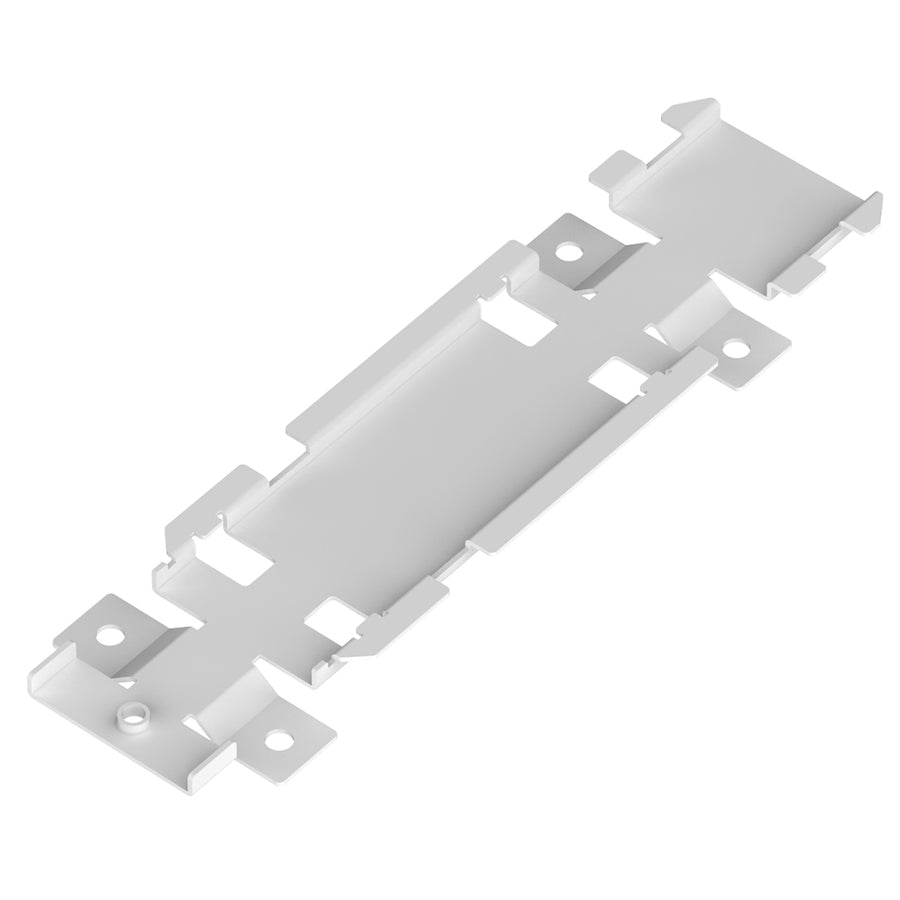

The OTD144 was designed to bring reliable Wi-Fi to outdoor environments where robust networking is essential. Built for challenging conditions, it combines LTE Cat 4 connectivity with dual SIM auto failover, built-in Wi-Fi, and two Ethernet ports - one supporting PoE-in and the other PoE-out. Its rugged IP55 housing with an integrated mounting bracket ensures simple, secure installation in the field. Powered by RutOS and fully compatible with RMS, the OTD144 also provides secure VPN, firewall, hotspot, and remote management features for complete control anywhere.
Outdoor Wi-Fi
Outdoor LTE Cat 4 router with integrated Wi-Fi
Rugged Design
Weather-resistant build with IP55 rating
Easy Installation
Single cable for power and data over PoE
Professional Management
Built-in VPN, hotspot, and remote management
Specifications
Technical Specifications
| Mobile | 4G (LTE) - LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps |
|---|---|
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| RAM | 64 MB, DDR2 |
| Storage | 16 MB |
| Powering options (PoE In) | RJ45, PoE In: 802.3af/at (42.5 - 57 VDC, max 21 W) |
| PoE Out | PoE Out: 802.3af/at (42.5 - 57 VDC, max 15 W - power supply unit dependent) |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V |
| Antenna connectors | 2 x Internal for Mobile, 2 x Internal for Wi-Fi |
| Ethernet | 2 x RJ45 ports, 10/100 Mbps: 2 x ETH ports (can be configured as WAN) |
| Wi-Fi | 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA) |
| Status LEDs | 3 x Mobile connection type, 3 x Mobile connection strength, 4 x ETH status LEDs |
| Operating temperature | -40 °C to 70 °C |
| Housing | Plastic (PC+ASA) |
| Dimensions (W x H x D) | 110 x 49.30 x 235 mm |
| Weight | 315 g |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, USSD, Block/Allow list, Band management, SIM idle protection service, SIM PIN code management, APN, Bridge, Passthrough |
| Wireless features | Wi-Fi security, SSID/ESSID, Wi-Fi users, Wireless Connectivity Features, Wireless MAC filter, Wireless QR code generator, TravelMate |
| Network features | VoIP passthrough support, Connection monitoring, Firewall, Firewall status page, Ports management, Network topology, DHCP, QoS / Smart Queue Management (SQM), DNS over HTTPS, DDNS, Network backup, Load balancing, Hotspot, Hotspot 2.0, SSHFS, VRF support , Traffic Management, IGMP Proxy |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control, SSL certificate generation, 802.1x |
| VPN and tunneling | OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc |
| Monitoring and Management | WEB UI, FOTA, SSH, SMS, Call, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS |
| Cloud solutions | RMS, ThingWorx, Cumulocity - Cloud of Things, Azure IoT Hub, AWS IoT Core |
| Services | BacNET, OPC UA, Modbus, Data to Server, Modbus MQTT GATEWAY, DNP3, DLMS/COSEM |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Routers |
| Weight | 0.5 kg |
| Warranty |
|---|
