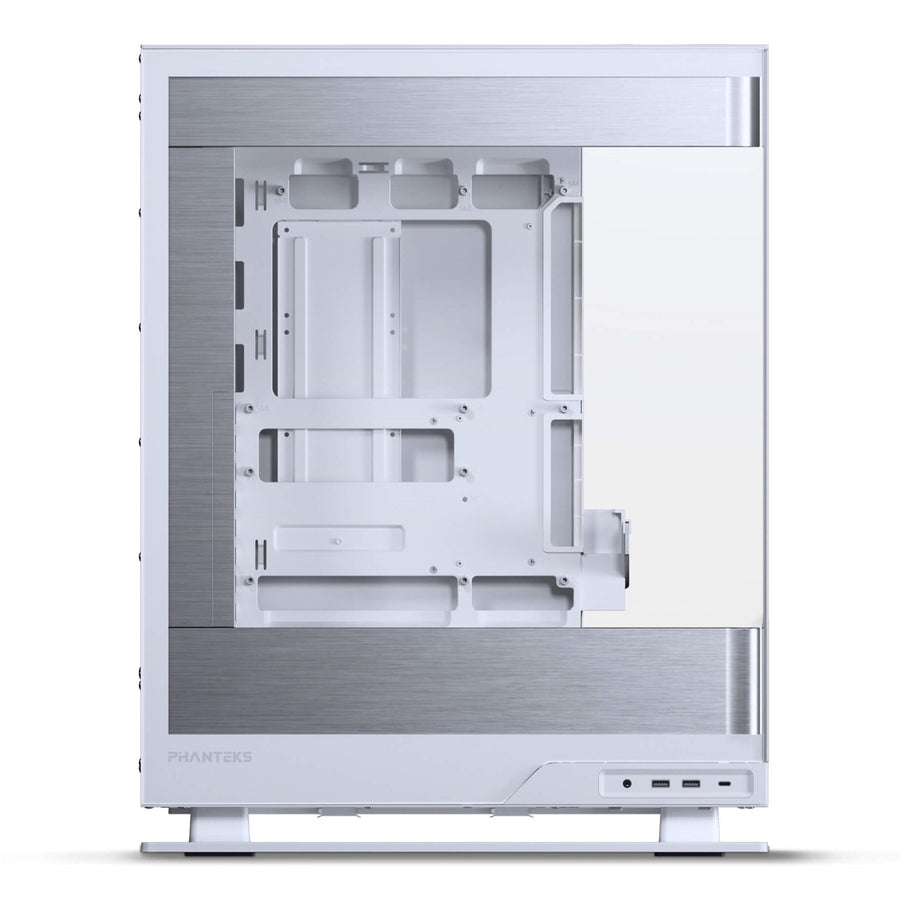

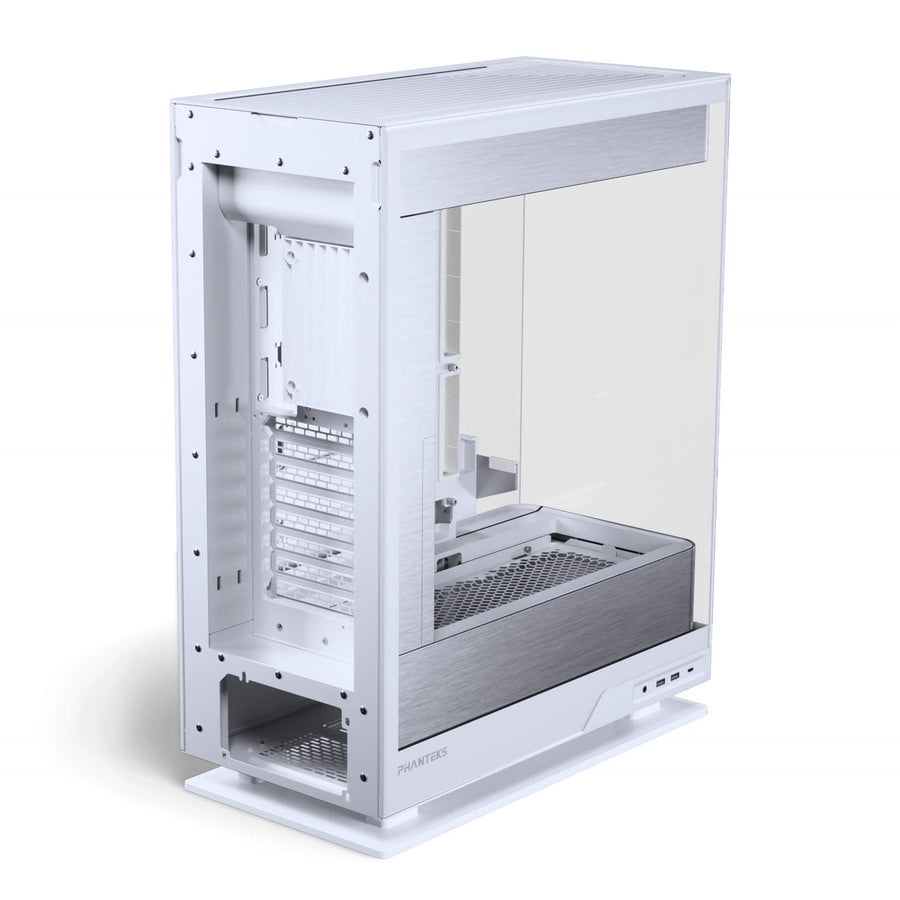

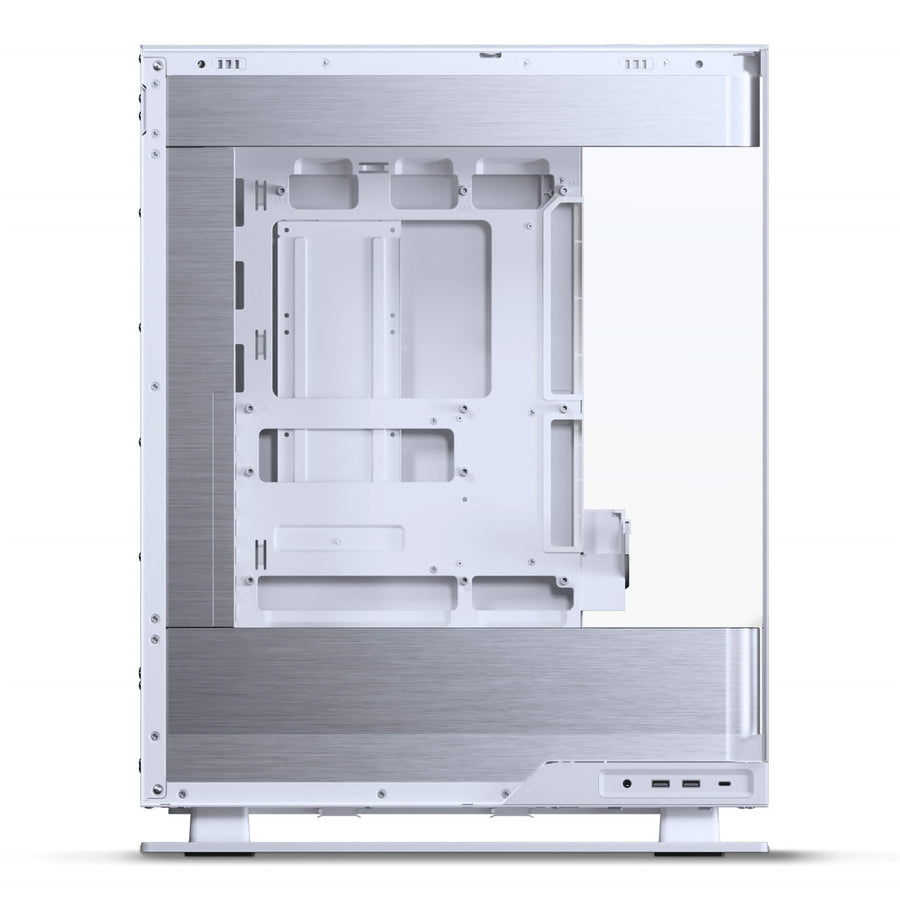

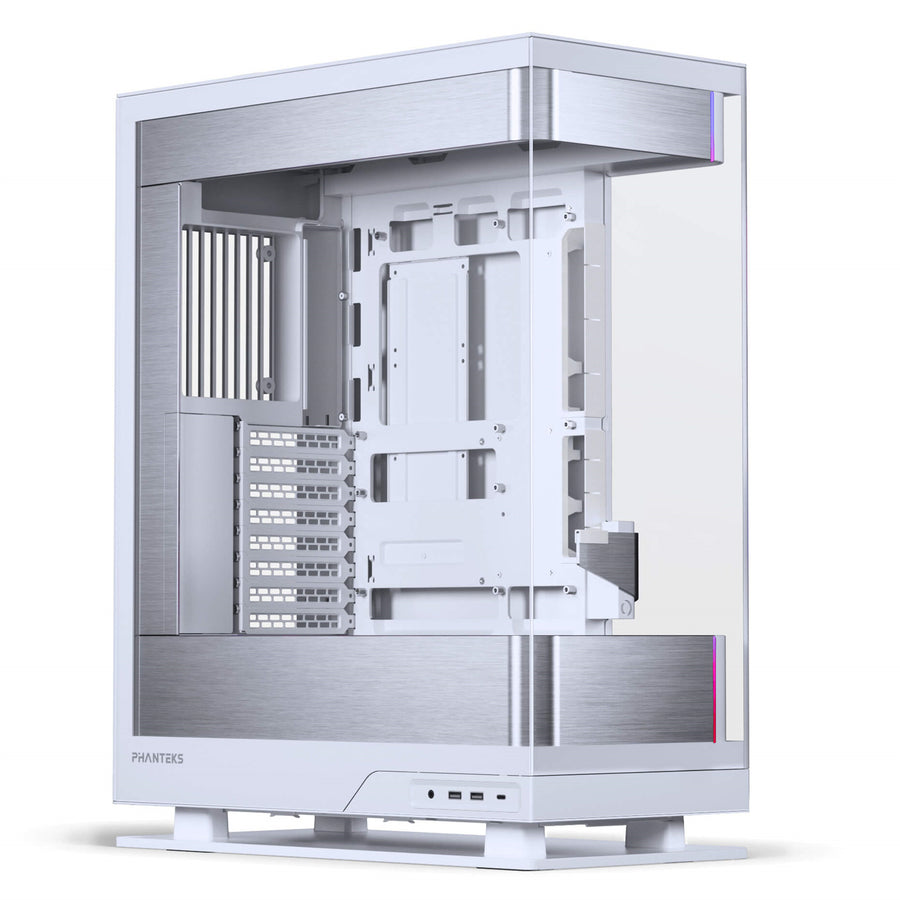

Phanteks EVOLV Series X2 Tempered Glass Window ATX Case - DRGB - White
Features
Evolv X2 - Redefine the desktop computer
The Evolv X2 redefines the desktop computer with its see-through glass design, aluminum interior, and powerful vertical cooling solution. The entire chassis floats above its base, drawing in surrounding air and channeling it efficiently through the GPU and CPU. Hot air is expelled through the top ventilation, enhancing thermal performance.
The interior of the Evolv X2 has been carefully designed to blend with the hardware components for a fully integrated look, with all cooling components sitting flush into the top and base. The integrated lighting and high-quality aluminum internal panels add flair to your system.
Designed To Cool
- Efficient vertical airflow design, drawing fresh air from the bottom and expelling warm air through the top.
- Floating chassis design ensures superior cooling by maximizing air intake through the bottom fan positions.
- Hot air is exhausted through the top, directed away from the user, thanks to the slanted grill design.
Looking Clean
- Mainboard and graphics card sitting front and center.
- Cooling fans and radiator sit hidden into the chassis as one.
- The large cover door fully hides all cables behind the mainboard.
- Supports rear-connect mainboards for a zero-cable build.
Premium Build Quality
- Super strong steel and aluminum C-frame design.
- Unique see-through chassis showcases the mainboard and graphics card.
- Brushed aluminum interior wrapped around the cooling components.
Integrated Lighting
- Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
- 3x built-in D-RGB LED strips are pre-installed and connected.
To operate the D-RGB lighting, it must be connected to a Phanteks controller or an A-RGB equipped mainboard. We strive to make it as easy to use and compatible as possible.
Storage
Side Storage Bracket
Supports 3x 2.5? SSD drives.
Bottom Storage Bracket
Supports 2x 3.5" HDD drives or 1x 3.5" HDD and 2x 2.5" SSD drives.
Fan Positions
Top
3x 120 mm
Rear
1x 120 mm
Bottom
3x 120 mm
Radiator Positions
Top
1x 360 Up to 410 x 130 x 38 mm
Specifications
Technical Specifications
| Model No. | PH-ES524XTG_DMW01 |
|---|---|
| Case Dimensions | 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in |
| From Factor | Mid-Tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX*Up to 280 mm wide |
| Materials | Steel chassis | Aluminum panels | Tempered glass window | ABS plastic |
| Color | Brushed aluminium |
| Expansion Slots | 8 |
| Vertical GPU Support | Yes, Riser cable & bracket sold separately |
| Internal 2.5" Positions | 5 + 1x 3.5" HDD |
| Internal 3.5" Positions | 2 + 3x 2.5" SSD |
| Front I/O | 2x USB 3.01x USB-C 3.2 Gen2x21x Microphone | Headphone comboPower buttonReset button |
| Fan Support | Top 3x120mmFront -Side -Rear 1x120mmBottom 3x120mm |
| Radiator Support | Top Max. 360Front -Rear -Bottom - |
| CPU Cooler Height | 170 mm | 6.69 in |
| GPU Length | 380 mm | 14.96 in |
| GPU Width | 170 mm | 6.69 in |
| Power Supply | 250 mm | 9.84 in |
| Top 360 Radiator (Length x Width x Height) | 415 x 130 x 38 mm | 16.34 x 5.12 x 1.50 in |
| Net Weight | 14.2 kg | 31.3 lbs |
| Gross Weight | 16.5 kg | 36.4 lbs |
| Scope of Delivery | 1x Evolv X2 chassis1x Storage bracket Pre-installed1x SSD bracket Pre-installed |
| Accessory Box | 6x Zip ties1x Stand-off removal tool1x D-RGB mainboard adapter 500 mm1x Microfiber cloth |
| Screws | 30x Mainboard | SSD screws4x Power supply screws8x HDD screws4x Vertical-GPU bracket screws1x Mainboard stand-off |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
