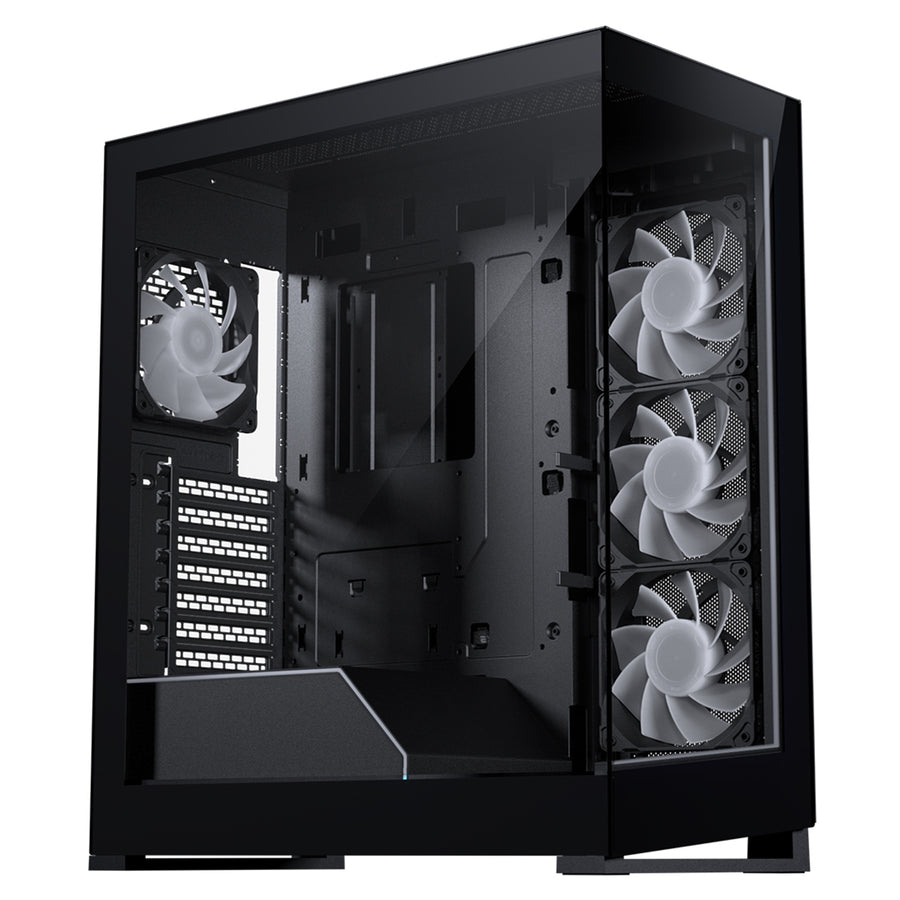

Phanteks NV Series NV5S Tempered Glass Window ATX Case - Black
Features
NV5S Showcase Mid-Tower Chassis

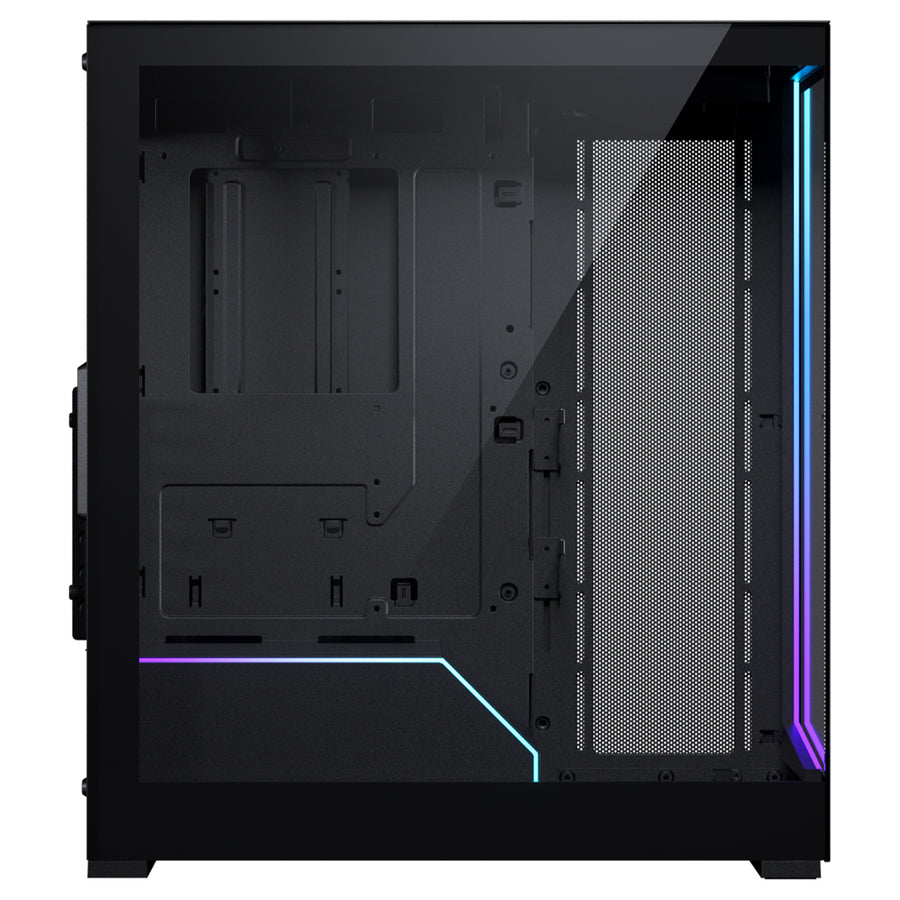

Meet the NV5S mid-tower chassis, featuring a stunning near-seamless glass view and support for 7 x 120 mm fans and dedicated space for a 360 radiator in the top. Its PSU cover opens for easy cable management, and its D-RGB lighting system is customisable and easy to sync. With its sleek design and convenient features, the NV5S is the perfect choice for a high-performance PC build that looks as good as it performs.

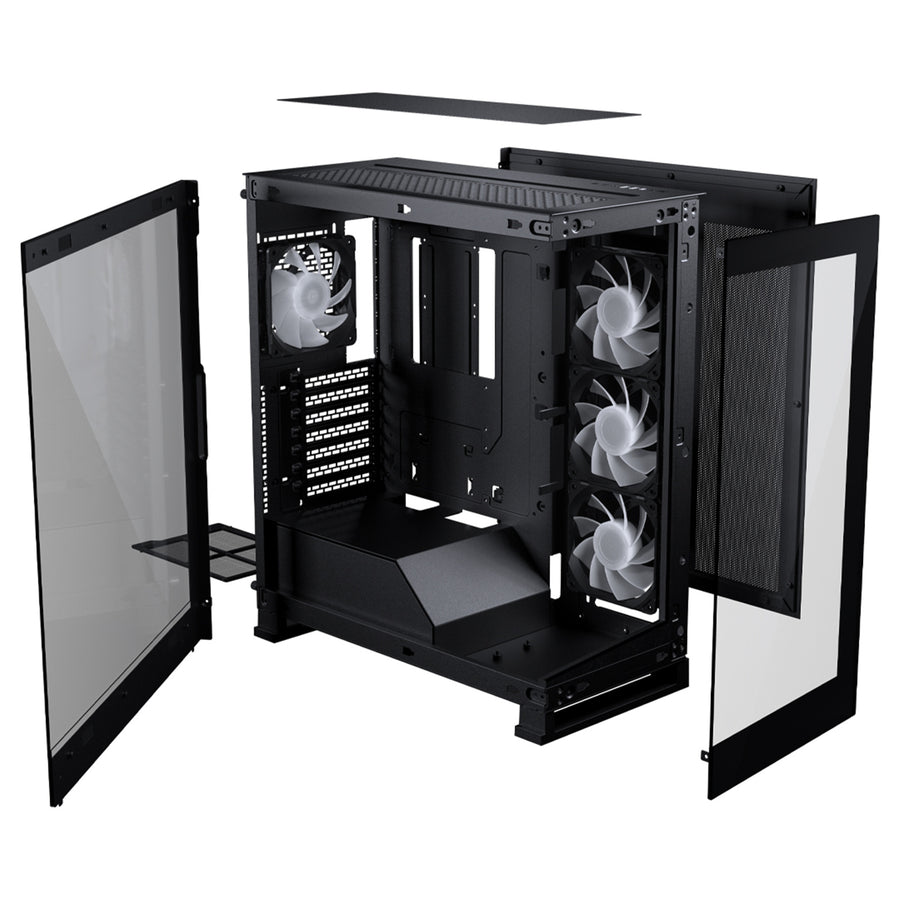

- Near-seamless glass panels for a perfect view of all your system components
- Ultra-fine performance mesh design for high airflow with good dust filtration
- A total of seven 120 mm fan positions for high end cooling performance
- Removable PSU cover for easy access and installation
- Integrated Digital-RGB lighting with software free controller
- GPU support bracket included(D-RGB vertical mount not included)
- 4x 120mm D-RGB fans included
Specifications
Technical Specifications
| Model Number | PH-NV523S_DBK01 |
|---|---|
| Colour | Black |
| Dimension | 218 x 450 x 505 mm / 8.6 x 17.7 x 19.9 in (W x D x H) |
| Form Factor | Mid Tower |
| Material(s) | Steel Chassis, Tempered Glass |
| Motherboard Support | ATX, micro-ATX, mini-ITX, E-ATX (Up to 280 mm with GPU support bracket) |

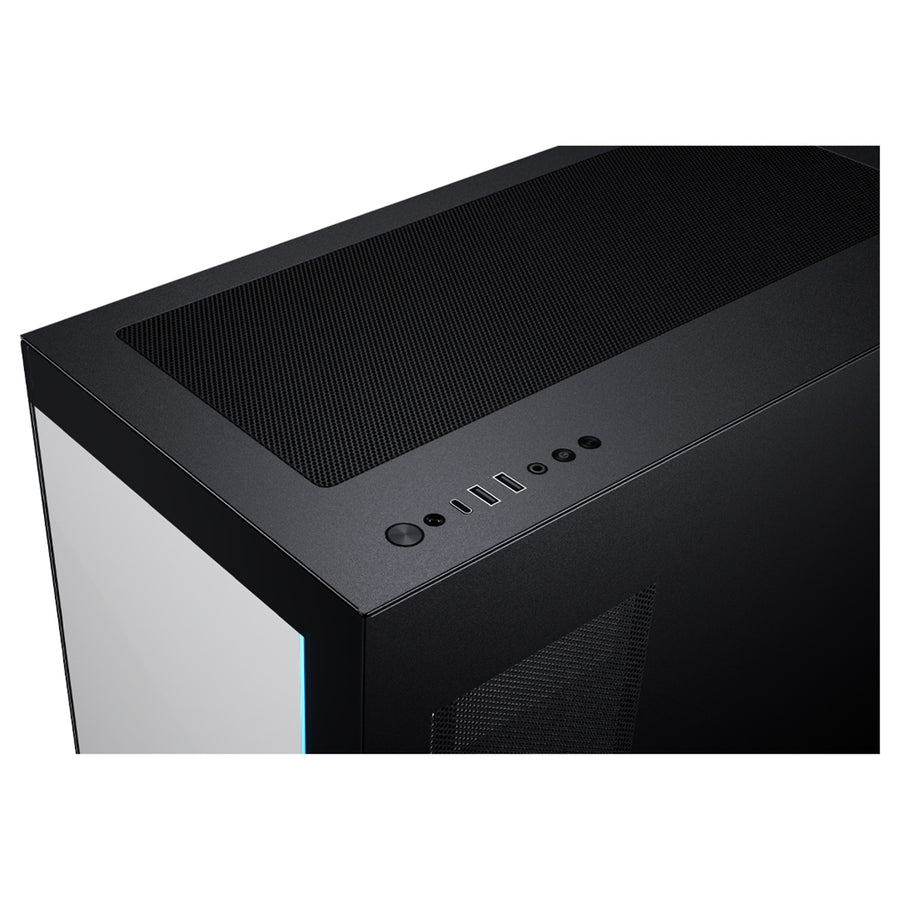

| Front I/O | 2 x USB 3.0, USB-C Gen2, Microphone / Headphone Combo, Power Button, Reset Button, D-RGB Mode, D-RGB Colour |
| Connectors | Power Switch, D-RGB, HD-audio, USB 3.0, SATA Power, Reset, USB 3.2 GEN 2 Type-C |
| Window | Yes, Front and Side Tempered Glass |
| Net Weight | 8.35 kg |
| What's Included | NV5S Chassis:4 x D-RGB 120 Fans1 x D-RGB Controller1 x Triple SSD Bracket1 x GPU Support Bracket (D-RGB vertical mount not included)1 x Accessory Box:MB/SSD ScrewThumb ScrewHDD ScrewStandoff Removal ToolMB stand-offPSU Screw |
| Expansion Slots | 7 |
| Vertical GPU Support | Yes, with optional bracket PH-VGPUKT4.0_03 |
| Internal 3.5" | 1 |
| Internal 2.5" | 3 |
| D-RGB Controller Output | 7 A |
| 120mm Fan | Side: 3x (included)Top: 3xRear: 1x (included) |
| 120mm Radiator | Side: Up to 360 (with vertical GPU only)Top: Up to 360Rear: 120 |
| Graphic Card Length | 430 mm |
| CPU Cooler Height | 170mm |
| PSU Length | 195mm |
| Side 360 Radiator | 120 x 400 x 60 mm |
| Top 360 Radiator | 120 x 400 x 60 mm |
| Rear 120 Radiator | 120 x 180 mm |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
