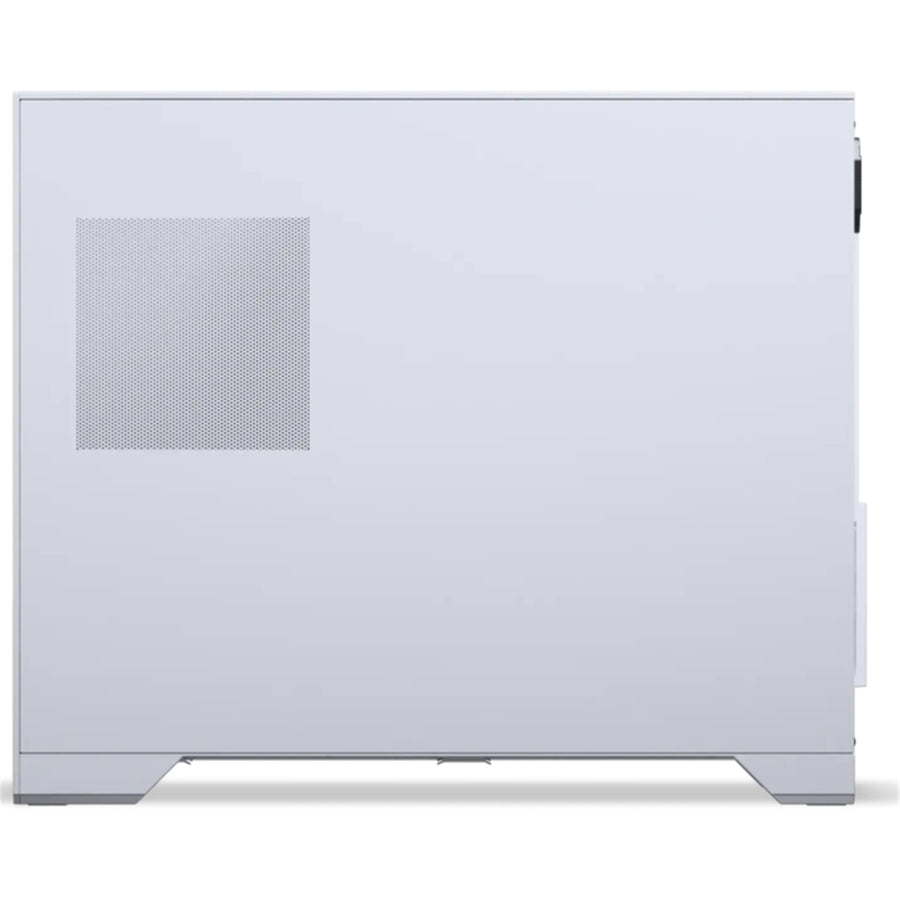

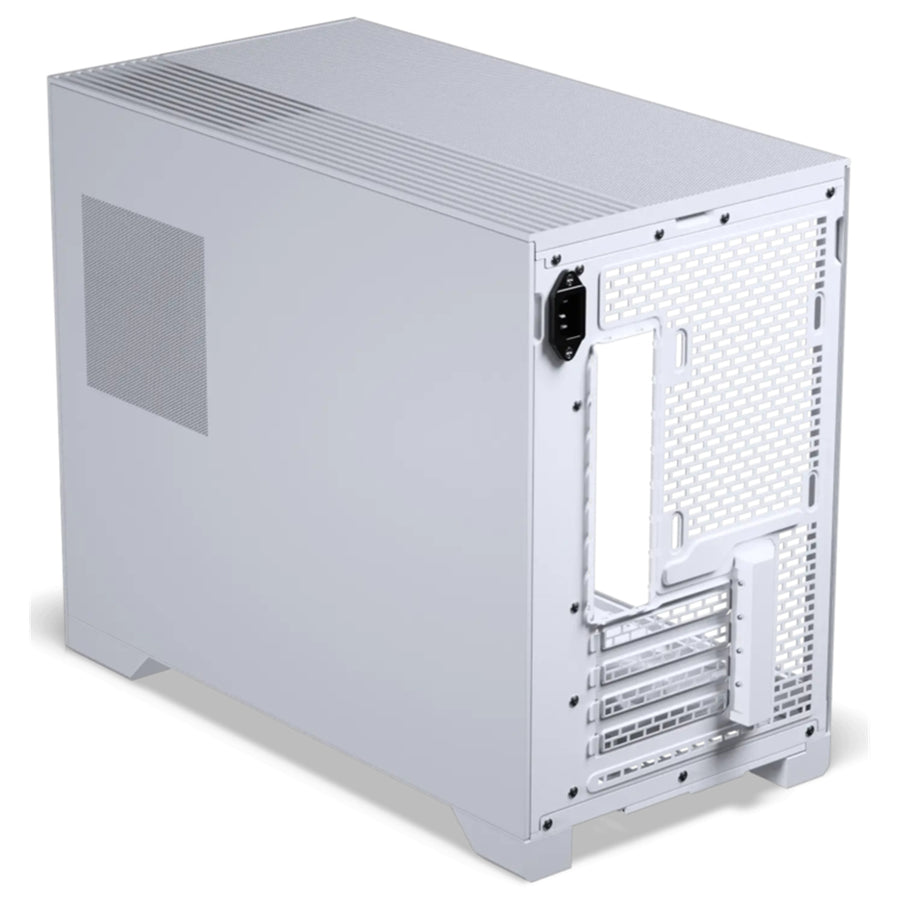

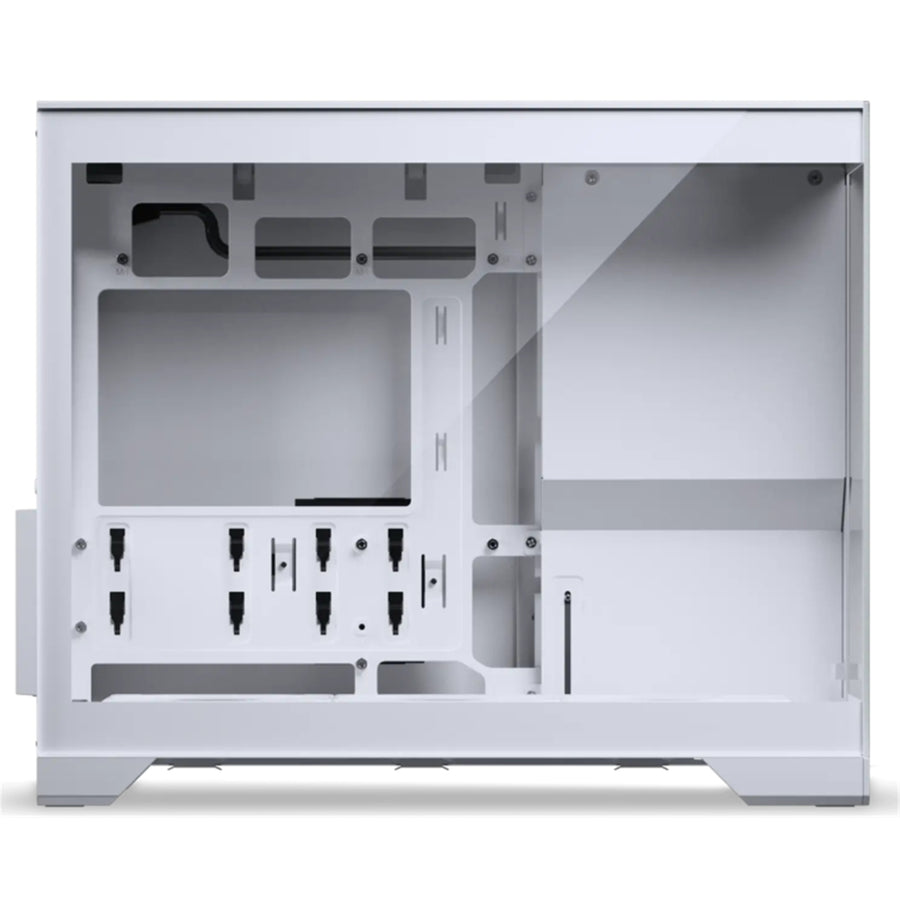

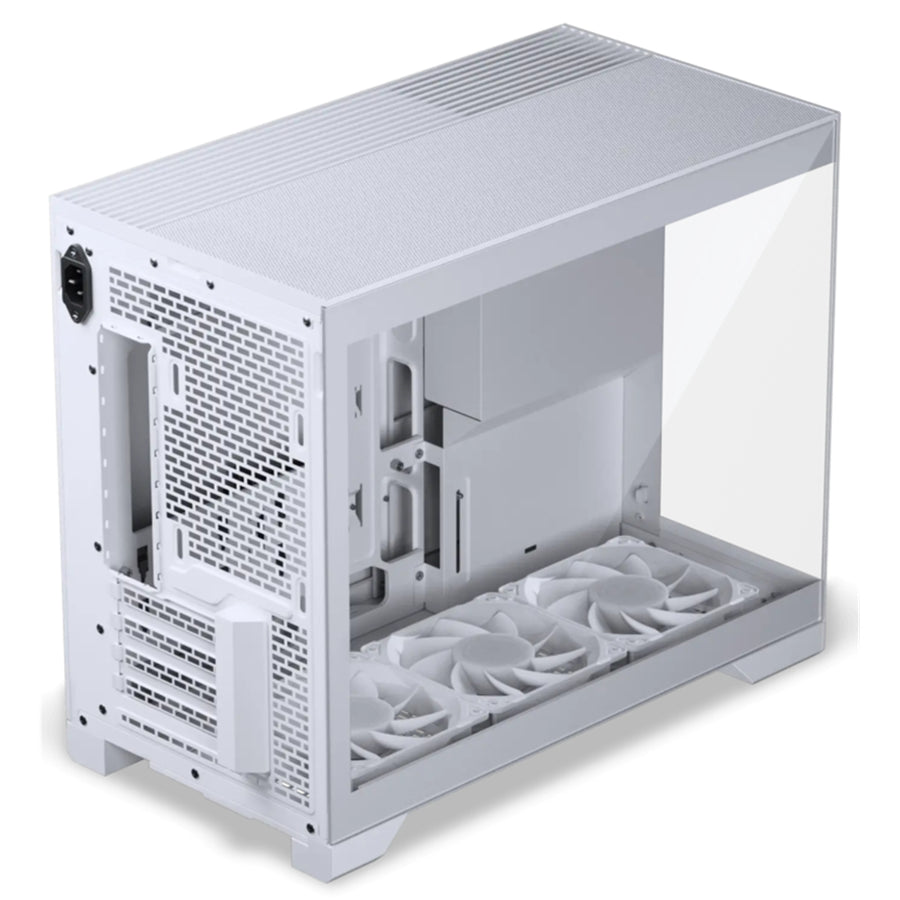

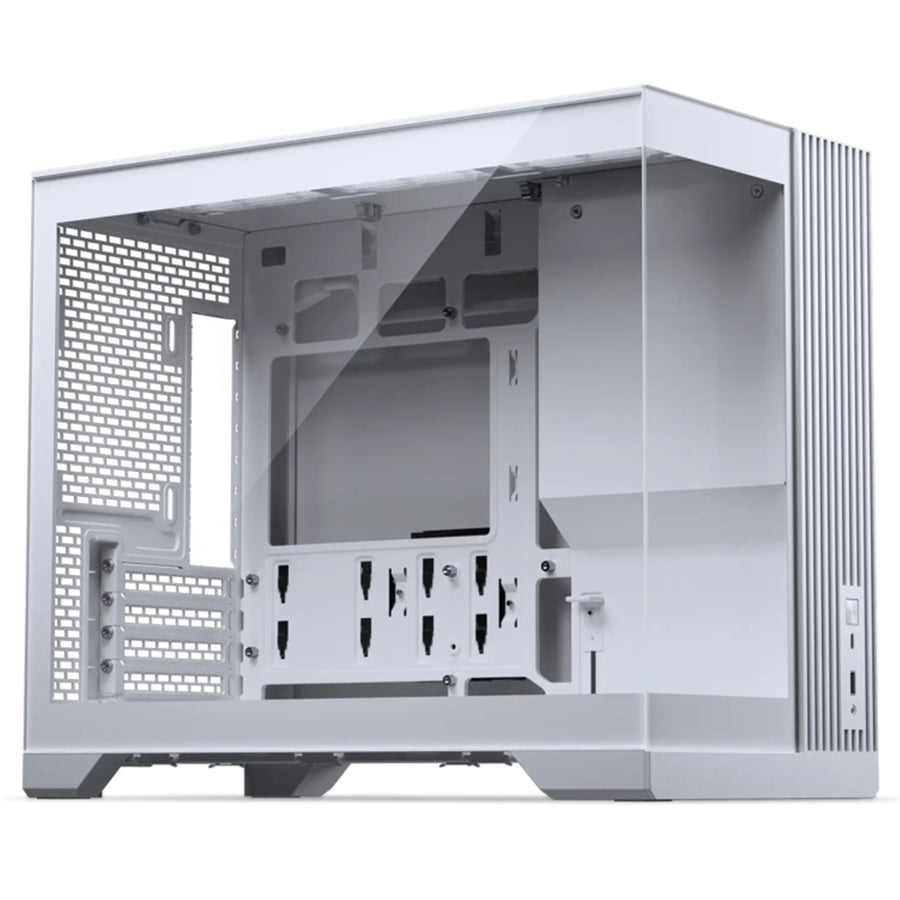

Phanteks XT V3 Tempered Glass mATX Case with 3 X ARGB Fans - White
Features
The XT V3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT V3 is a micro-ATX powerhouse ready for any cooling challenge.
Compact Gaming Chassis
- Supports a total of nine 120 fans for powerful cooling within this compact chassis.
- Dedicated 360 radiator space in the top of the chassis.
- Triple fan locations in the bottom for direct GPU cooling.
Organized by Design
- Spacious cable routing area for clean and efficient management.
- Fully compatible with Rear-Connect mainboards for streamlined builds.
Fan Positions
- 3x 120 mm top fans.
- 1x 120 mm rear fan.
- 3x 120 mm bottom fans.
Radiator Positions
- 1x 360 top radiator up to 410 x 122 x 60 mm
Storage
- SSD Storage Bracket
Supports 2x 2.5″ SSD drives.
- HDD Storage Bracket
Supports 1x 3.5" HDD drive.
Specifications
Technical Specifications
| Case Dimensions | 460 x 235 x 370 mm | 18.1 x 9.3 x 14.6 in |
|---|---|
| From Factor | Compact microATX tower |
| Mainboard Support | Micro-ATX | Mini-ITX |
| Materials | Steel chassis | Tempered glass window | ABS plastic |
| Color | Black |
| Expansion Slots | 4 |
| Vertical GPU Support | No |
| Internal 2.5″ Positions | 2+ 1x 3.5″ HDD |
| Internal 3.5″ Positions | 1+ 2x 2.5″ SSD |
| Front I/O | 1x USB 3.01x USB-C 3.2 Gen2x21x Microphone | Headphone comboPower button |
| Total Fans | 7 |
| Top | 3 |
| Rear | 1 |
| Bottom | 3 |
| Top | Max. 360 |
| CPU Cooler Height | 175 mm | 6.88 in |
| GPU Length | 430 mm | 15.94 inWithout front fans installed |
| GPU Width | 175 mm | 6.88 in |
| Power Supply | 150 mm | 5.90 in |
| Top 360 RadiatorLength x Width x Height | 410 x 122 x 60 mm | 16.14 x 4.80 x 2.36 in |
| Net Weight | 6.05 kg | 13.33 lbs |
| Gross Weight | 7.20 kg | 15.87 lbs |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
