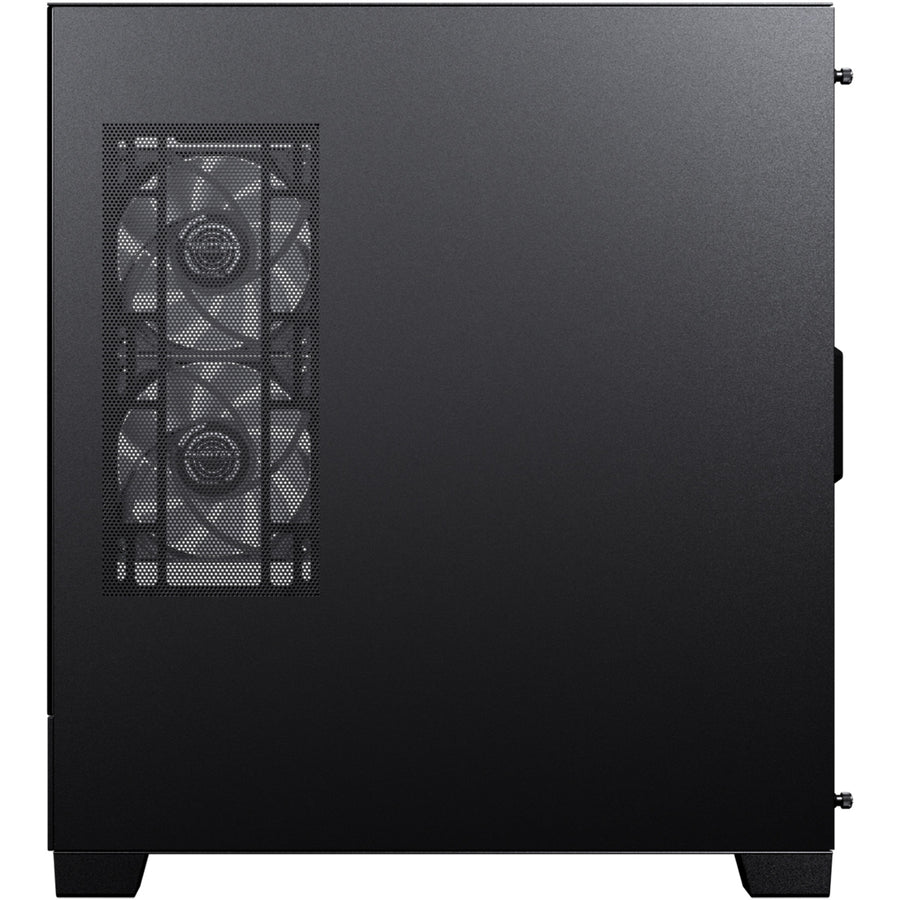

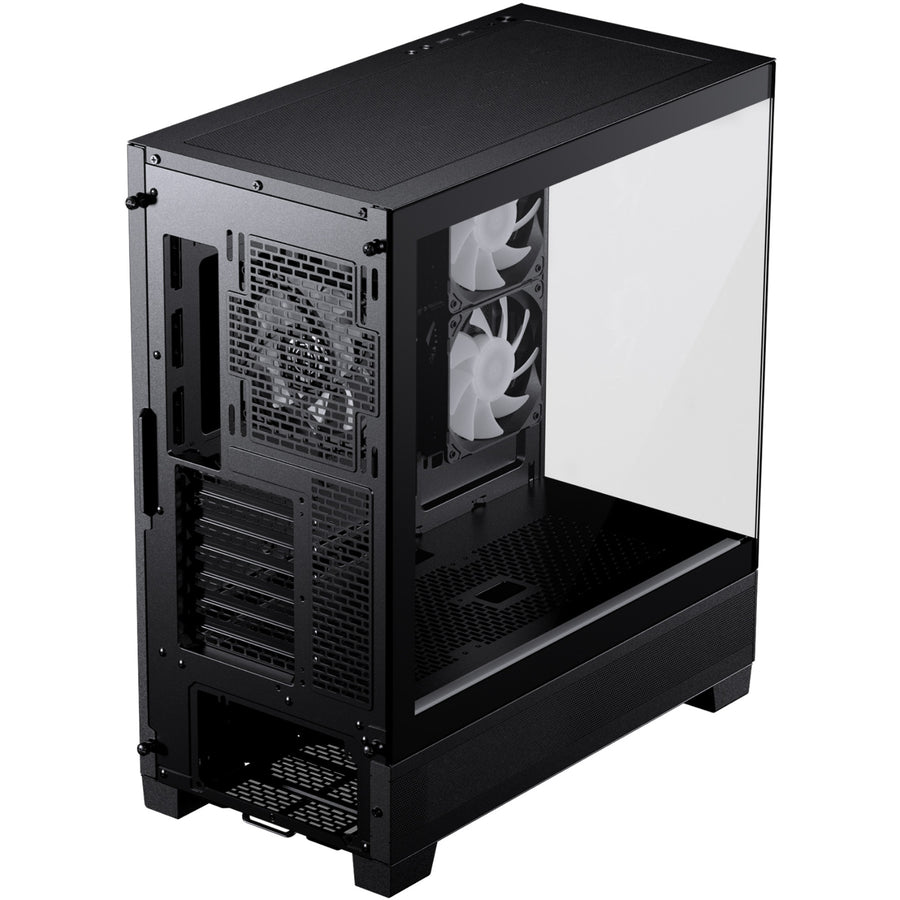

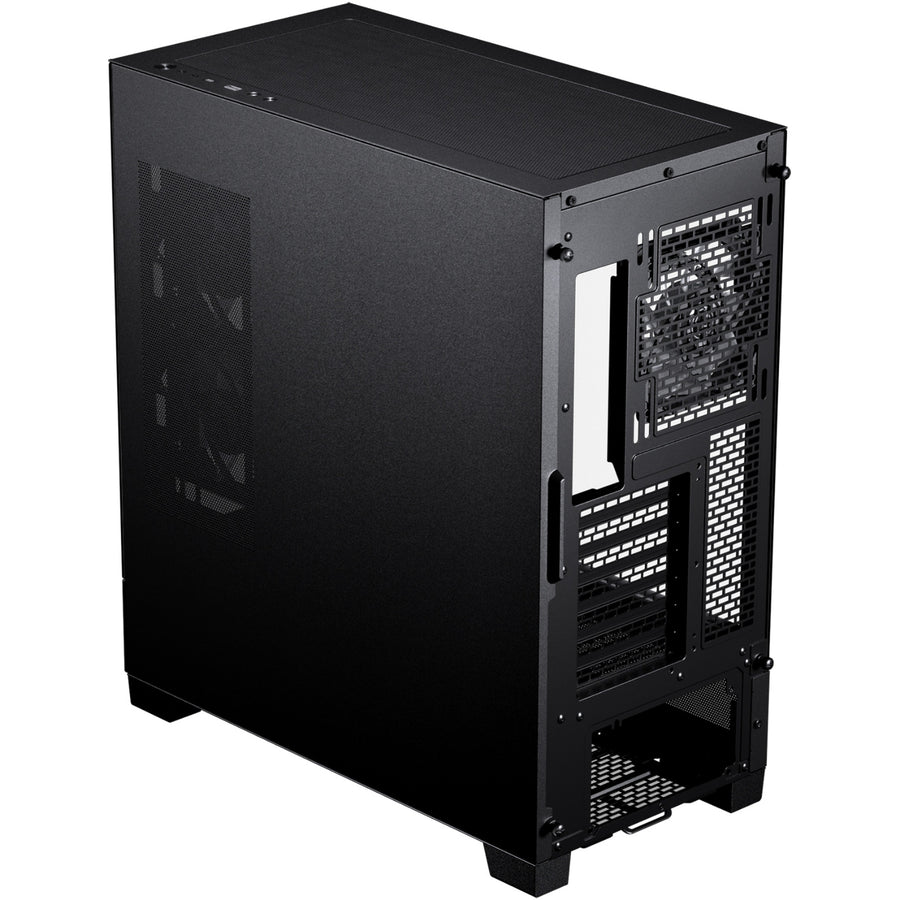

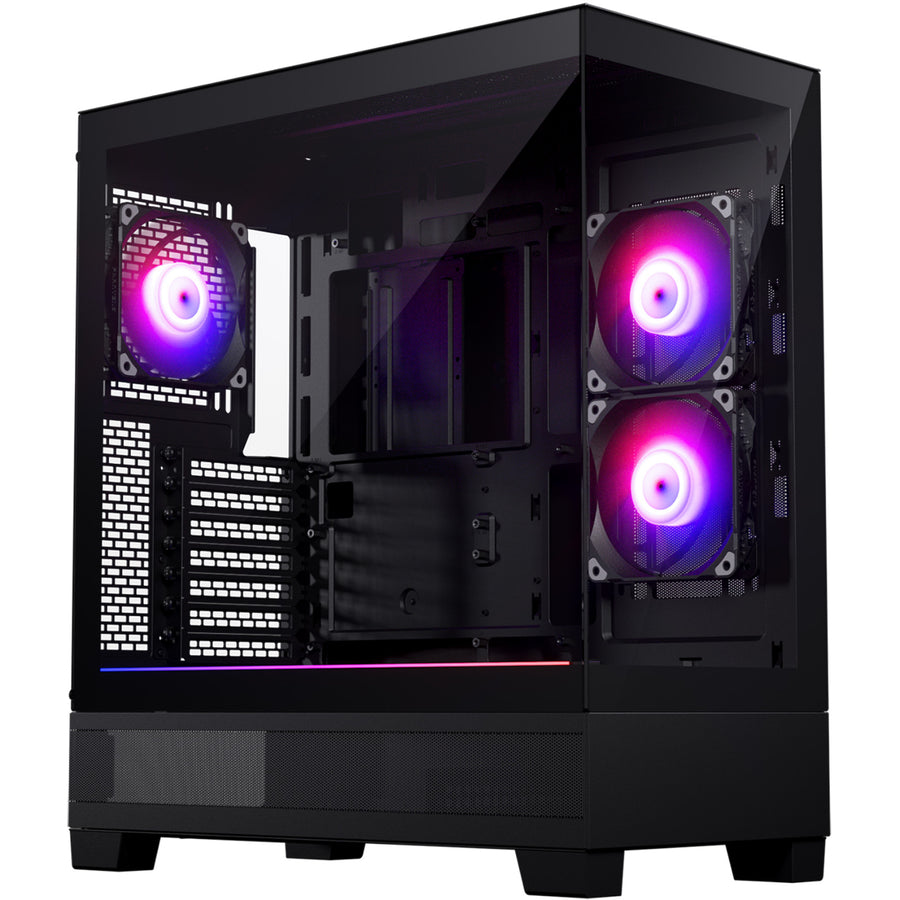

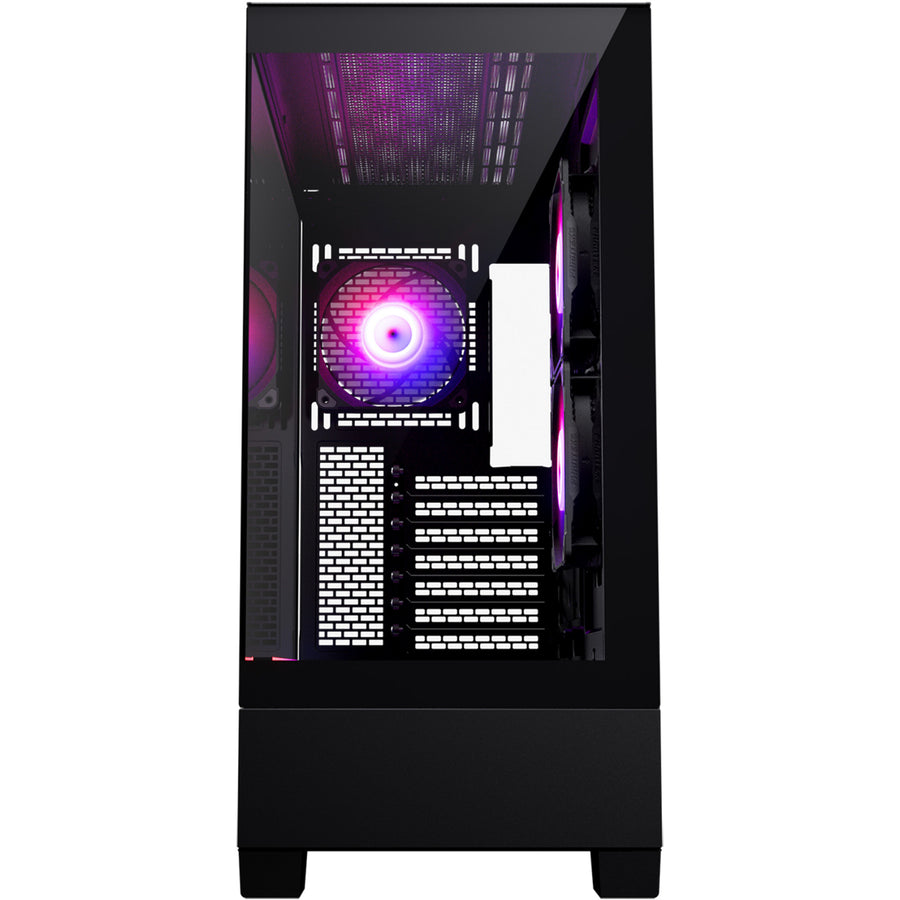

Phanteks XT VIEW Tempered Glass ATX Case - Black
Features
XT-Series, delivering extreme value
With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10 fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.
The XT-Series further innovates to bring support for the latest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.
- Support for the latest rear-side connector mainboards
- Front and Side Tempered Glass Windows
- 3x M25-120mm DRGB fans included
- Supports up to 9x 120mm fan positions
- Dedicated 360 radiator support in the top without restrictions
- Support for the largest graphics cards without compromise

Computing with a view
- Near-seamless glass panels
- Plenty of space for the most powerful graphics cards
- Mesh all-around for high-performance cooling

Cool and powerful
- Dedicated top 360 radiator space at the top
- Triple 120mm positions on the midplate for direct GPU cooling
- A total of 9 x 120mm fan locations

Build for the future
- Unlock the Zero-Cable Setup - Mainboards with hidden connectors on the rear-side are fully supported by the XT View chassis
- Support for MSI Project Zero mainboards
- Support for ASUS BTF mainboards

Packed with value
- Powerful and cool with 3 x D-RGB 120mm fans built-in
- USB-C 3.2 Gen 2 for ultra-fast data transfers
- Integrated D-RGB lighting and controller
D-RGB by Phanteks (A.K.A A-RGB)
- Works out of the box (plug-and-play)
- Can be switched off, and on again
- Standard JST connector
- Always compatible with third-party software control.


Fan and Radiator support

Storage options

Specifications
Technical Specifications
| Product Dimensions (D x W x H) | 440 x 230 x 500mm |
|---|---|
| Form Factor | Mid tower |
| Mainboard Support | ATXMicro-ATXMini-ITXE-ATX (280mm without GPU support bracket)Rear-Sided Mainboard Support - Supports MSI Project Zero mainboards and ASUS BTF mainboards |
| Materials | Steel Chassis (Tempered Glass) |
| Front IO | 1 x USB-C 3.2 Gen 21 x USB 3.0Microphone/Headphone ComboReset ButtonPower ButtonD-RGB Colour ButtonD-RGB Mode Button |
| Connectors | Power SwitchReset SwitchHD-AudioUSB 3.0USB 3.2 Gen 2 Type-ED-RGB ExpansionD-RGB Motherboard |
| Net Weight | 7.65 kg |
| Gross Weight | 9.55 kg |
| PCI Slots | 7 |
| Internal 3.5" Bay | 2 x Included (2 x 2.5" + 2 x 3.5") |
| Internal 2.5" Bay | 5 x Included (5 x 2.5" + 1 x 3.5") |
| Vertical GPU Support | Yes, with PH-VGPUKT4.0_03R (Sold separately) |
| Top Fan | 3 x 120mm / 2 x 140mm |
| Side Fan | 3 x 120mm / 3 x 140mm |
| Rear Fan | 1 x 120mm / 1 x 140mm |
| Midplate Fan | 3 x 120mm |
| Top Radiator | Up to 360mm |
| Right Side Radiator | Up to 240mm (Only with vertical GPUs) |
| Rear Radiator | Up to 120mm |
| GPU Length | 415mm |
| GPU Width | 184mm |
| CPU Cooler Height | 184mm |
| Power Supply | 270mm |
| Top 360 Radiator | 415 x 138 x 60mm |
| Side 240 Radiator | 305 x 120 x 62mm (Only with vertical GPUs) |
| Rear 120 Radiator | 132 x 170mm |
| Package | 1 x XT View Chassis1 x Storage Bracket1 x Triple SSD Bracket3 x M25-120 mm D-RGB Fans |
| Accessory Box | 30 x Ziptie |
| Screws | 30 x SSD + Mainboard Screws4 x Power Supply Screws8 x HDD Screws12 x 30mm Fan Screws (UNC6-32)1 x Mainboard Stand-off1 x Stand-off Removal Tool |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
