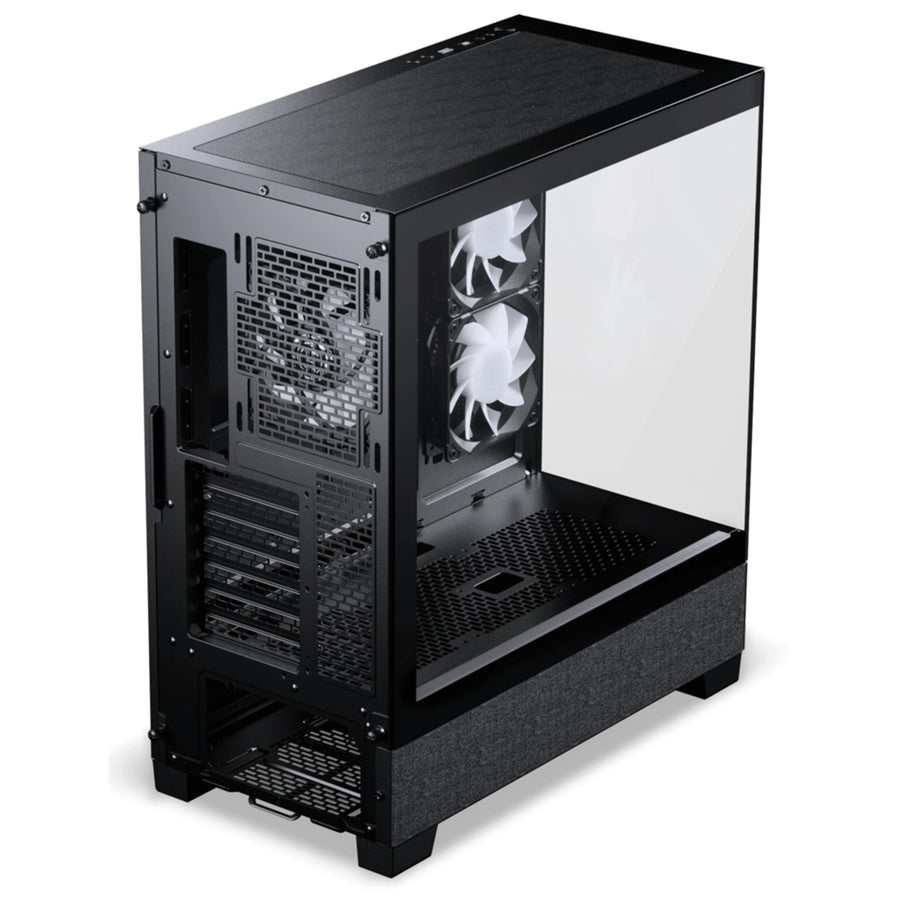

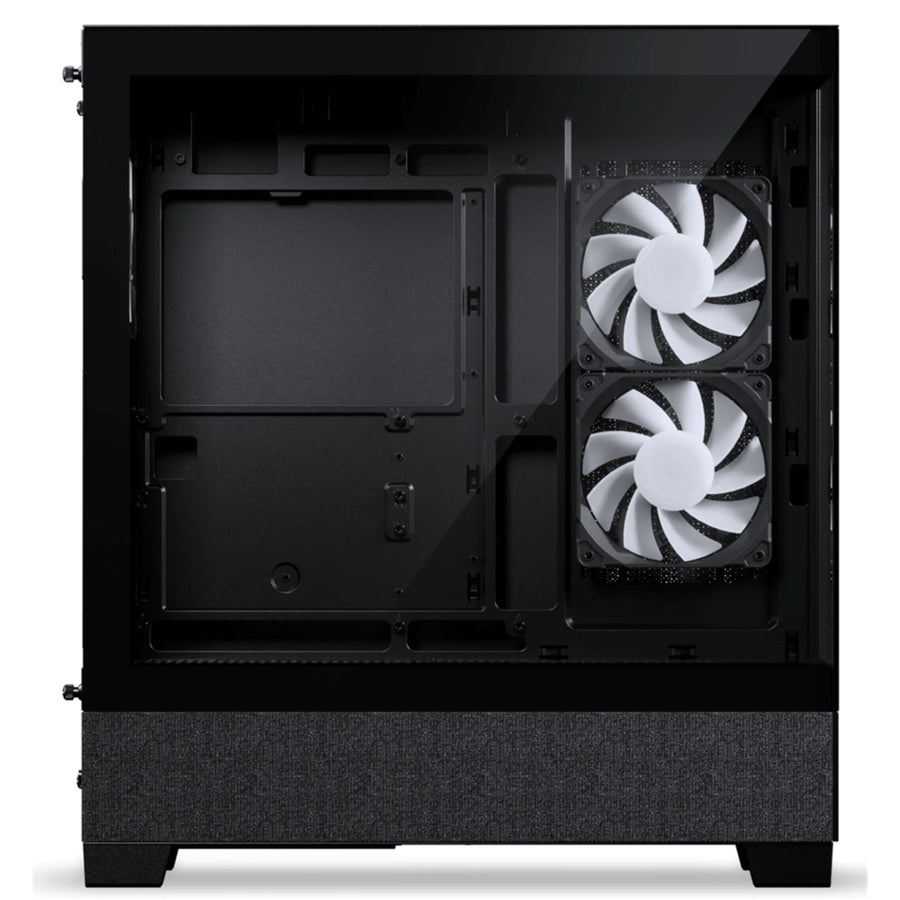

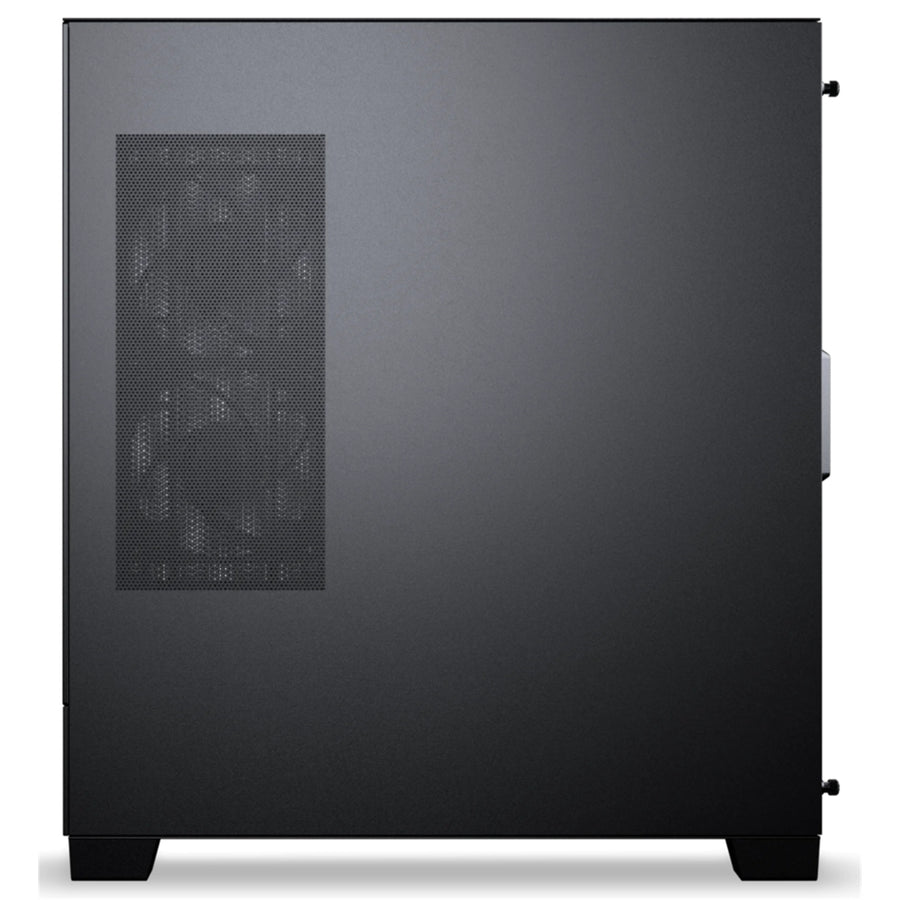

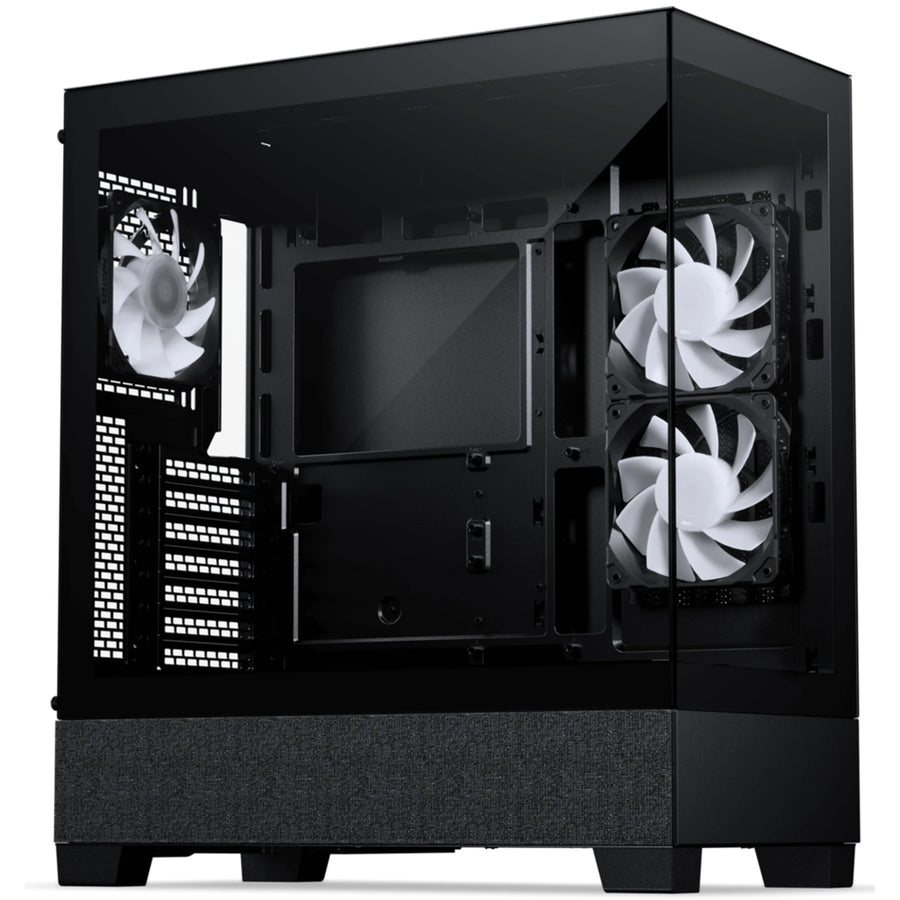

Phanteks XT VIEW With LED Matrix Tempered Glass ATX Case - Black
Features
The XT View Matrix combines smart design and modern innovation with a unique 600-LED Matrix Screen elegantly hidden behind the fabric panel, bringing lighting and information to life in a subtle, integrated way.
Built for today's powerful hardware, the XT View Matrix offers exceptional cooling capacity with support for up to 9 fans and dedicated radiator space at the top. Its spacious layout easily fits the largest GPUs, with room to spare for cable management, and supports the latest rear-connector motherboards to achieve a truly zero-cable setup.
System Information, Reimagined

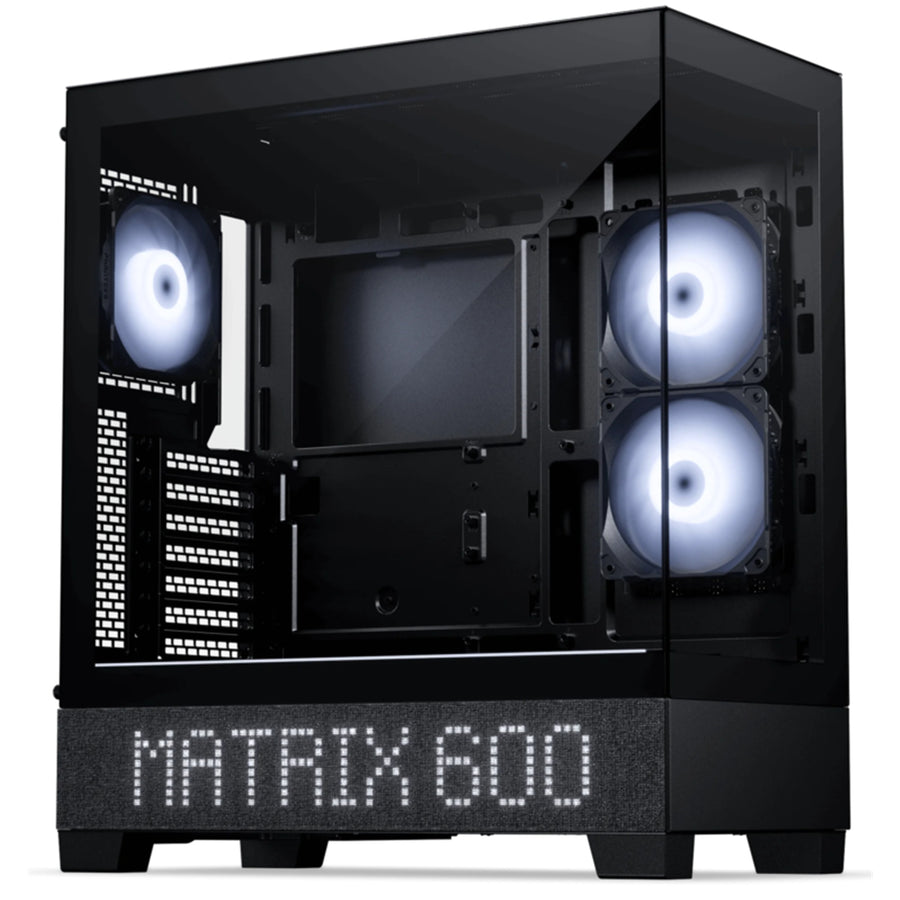

Integrated 600-LED Matrix screen hidden behind the fabric interior for a clean, seamless system display.
- Customize system stats, time, date, lighting effects, and animations through the NexLinq App for Windows.
- Fine mesh fabric covers the Matrix 600 to subtly diffuse the LED light for improved readability and visual depth.
- Hardware-driven Matrix operation ensures smooth visuals with minimal CPU impact.
- Designed as part of the Phanteks NexLinq ecosystem for unified system monitoring and control.
Computing with a View
- Near-seamless glass panels.
- Plenty of space for the most powerful graphics cards.
- Highly durable wear- and UV-resistant fabric.
Cool and Powerful
- Dedicated top 360 radiator space in the top.
- Triple 120mm positions on the midplate for direct GPU cooling.
- Supports a total of 9x 120mm fan locations.
Integrated Lighting
- Smooth and diffuse D-RGB lines run from top to bottom of the Evolv X2.
- 3x built-in D-RGB LED strips are pre-installed and connected.
- The Matrix display visually complements the integrated D-RGB lighting, adding an additional layer of system expression.
Storage
Bottom Storage Bracket
Supports 2x 3.5" HDD drives or 1x 3.5" HDD and 2x 2.5" SSD drives.
Fan Positions
3x 120 mm top fans.
1x 120 mm rear fan.
3x 120 mm bottom fans.
Radiator Positions
Max. 360 top radiator up to 410 x 130 x 38 mm
Max. 120 rear radiator
Specifications
Technical Specifications
| Model No. | PH-XT523VM1_DBK01 |
|---|---|
| Case Dimensions | 454 x 228 x 588 mm | 17.87 x 8.98 x 23.15 in |
| From Factor | Mid-Tower |
| Mainboard Support | *E-ATX | ATX | Micro-ATX | Mini-ITX*Up to 280 mm wide |
| Materials | Steel chassis | Aluminum panels | Tempered glass window | ABS plastic | Mesh fabric |
| Color | Black |
| Expansion Slots | 7 |
| Vertical GPU Support | YesRiser cable & bracket sold separately |
| Internal 2.5″ Positions | 2+ 1x 3.5″ HDD |
| Internal 3.5″ Positions | 2+ 0x 2.5″ SSD |
| Front I/O | 2x USB 3.01x USB-C 3.2 Gen2x21x Microphone | Headphone comboD-RGB color buttonD-RGB mode buttonPower buttonReset button |
| LED Amount | 600 |
| Power Input | 5V | 4.3A |
| Fabric Material | Polyester |
| Connectors | Mainboard USB 2.0 header 500 mmSATA 500 mm |
| Total Fans | 9 | 3 |
| Top | 3 | 2 |
| Front | - | - |
| Side | 2 | - |
| Rear | 1 | 1 |
| Bottom | 3 | - |
| Top | Max. 360 | - |
| Front | - | - |
| Side | Max. 240 Only with vertical GPU bracket | - |
| Rear | - | - |
| Bottom | - | - |
| CPU Cooler Height | 184 mm | 7.24 in |
| GPU Length | 415 mm | 16.33 in |
| GPU Width | 184 mm | 7.24 in |
| Power Supply | 270 mm | 10.62 in |
| Top 360 Radiator Length x Width x Height | 415 x 138 x 60 mm | 16.34 x 5.43 x 2.36 in |
| Side 240 Radiator Length x Width x Height | 305 x 120 x 62 mm | 12.00 x 4.72 x 2.44 in Only with vertical GPU bracket |
| Net Weight | 7.91 kg | 17.44 lbs |
| Gross Weight | 9.51 kg | 20.97 lbs |
| Warranty | 5 Years Limited |
| Scope of Delivery | 1x XT View Matrix chassis1x Storage bracket Pre-installed |
| Accessory Box | 30x Zip ties1x Stand-off removal tool1x D-RGB mainboard adapter 500 mm |
| Screws | 30x Mainboard | SSD screws4x Power supply screws8x HDD screws4x Thumb screws4x Fan Screws 30 mm UNC6-321x Mainboard stand-off |
| Brand | Phanteks |
|---|---|
| Product Type | PC Parts |
