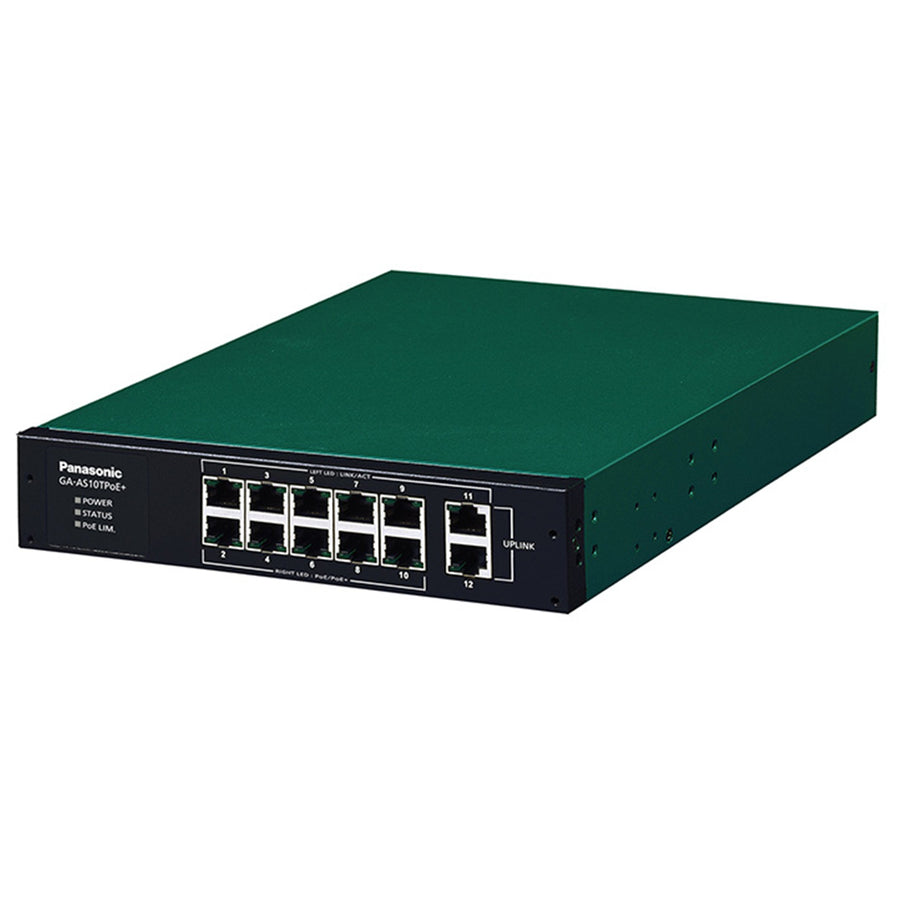

PN25108-NZ - GA-AS 10Port PoE+ 70Watt Fanless
PN25108-NZ - GA-AS 10Port PoE+ 70Watt Fanless
Features
GA-AS10TPoE+ has 12 ports which are 10BASE-T/100BASE-TX/1000BASE-Tcompatible ports.
Ports 1 to 10 (twisted pair ports) support IEEE802.3at PoE power supply functions.
- Ports 1 to 12 (twisted pair ports) are 10BASE-T/100BASE-TX/1000BASE-Tcorresponding to auto-negotiation.
- The twisted pair ports 1 to 10 can supply power conforming with IEEE802.3at. They can supply a maximum of 30 W of power per port, and the device total can supply a maximum of 70 W of power.
- All of the twisted pair ports are equipped with straight/cross cable automatic detection functions. Straight cables can be used to make interconnections without distinctions between the terminals and network devices having to be made. (The factory default is for ports 1 to 10 to have MDI-X be fixed.)
- Equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions (hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption.
- Automatically detects the connection states via the equipped energy efficiency mode, and suppresses power consumption to required levels.
- VLAN function allows free grouping of up to 256 VLANs.
- The IEEE802.1p compatible QoS function is supported.
- Has an Internet Mansion function, which ensures security between each door.
- As a factory default, IP address in this Ethernet Switch is not assigned to the device.The address can be changed by connecting this Ethernet Switch to your PC using twisted pair cable, if your PC has ZEQUO assist plus installed on it (ZEQUO assist plus is downloadable from Panasonic's website)
Specifications
Technical Specifications
| Model No. | PN25108-NZ |
|---|---|
| Power supply | AC100-240V, 50/60Hz, 1.7A (with a built-in power supply) |
| Power consumption | Normally, Max.89.6W (12.1W when not supplying power), Min.7.5W |
| Operating environment | Temperature: 0 - 50°CHumidity: 20 - 80%RH (no condensation) |
| Storage environment | Temperature: -20 - 70°CHumidity: 10 - 90%RH (no condensation) |
| EMC compliance | CISPR 22 Class A, EN 55022 Class A, CISPR 32 Class A, EN 55032 Class AAS/NZS CISPR22 Class AVCCI Class AEN 61000-3-2, EN 61000-3-3CISPR 24, EN 55024IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5,IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11 |
| Safety compliance | IEC 62368-1EN 62368-1 |
| Environment compliance | RoHS compliant |
| Form and materials/colors | Dimensions :44mm(Height)×210mm(Width)×280mm(Depth) (Excluding protruding sections)Case material :SECCColor : Main unit: Green 03, Front face: black 03, Face plate label: black 02 |
| Twisted pair port 1-12 :RJ45 connector *1 | Transmitting and receiving network system :IEEE802.3 10BASE-TIEEE802.3u 100BASE-TXIEEE802.3ab 1000BASE-TEnergy Efficient Ethernet :IEEE802.3az (LPI) *2Transmission speed :10/100Mbps full/half duplex, 1000Mbps full duplex,Compatible cable :Twisted pair cable (At least equivalent to EIA/TIA568 category 5e)If there is Category 3 cable used in a connection, the communication at a speed of 10Mbps can not be established.You must use category 5e or higher crossover cable.Maximum transmission distance :100mAuto-Negotiation :Communication speed and full/half duplex are automatically recognized.The setting can be fixed to 10Mbps, 100Mbps, 1000Mbps and full duplex or half duplex.Up to 70 W of power can be supplied to ports 1 to 10 in total. (Maximum power supplied to a port: 30.0W)1 Automatically detects the connection states via the equipped Power Saving Mode, and suppresses power consumption to required levels.Factory default : Half2 Port 1-10 equipped with IEEE802.3az (LPI) compatible Energy Efficient Ethernet functions(hereinafter EEE), and if data is transmitted when linked up, the energy efficient state will be moved to, whereas each port can suppress power consumption.Factory default : Enable |
| Switching method | Store and Forward |
| Switching capacity | 24.0Gbps |
| Packet transfer capability | Non-blockingMax. 14,880pps/port(10Mbps)Max. 148,800pps/port(100Mbps)Max. 1,488,000pps/port(1000Mbps) |
| MAC Address table | Max. 8K entry/unit |
| Buffer memory | 512K Byte/unit |
| Flow control | half-duplex Back pressure full-duplex IEEE802.3x |
| Aging timeout | 10 to 1,000,000 sec. |
