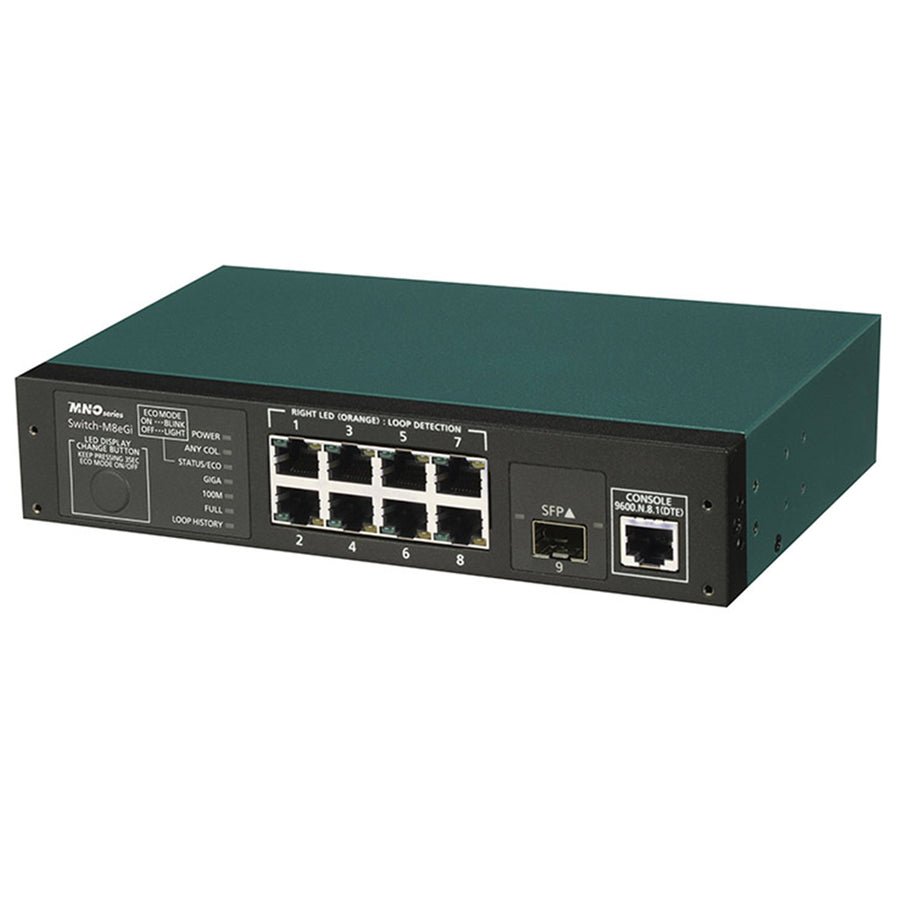

PN28080I-NZ - EGI series 8 port High Temp non-PoE

Switch-M8eGi is an all Giga bit Ethernet Switch with management function having 8 ports of 10/100/1000BASE-T and SFP extension slot.

- Has wire speed layer 2 switching functions.
- Ports 1 to 8 are auto negotiation-ready 10/100/1000BASE-T ports. Their speed and communication mode can be changed by configuration. Port 9 can be exclusively used as an SFP extension slot.
- All twisted pair ports support straight/cross cable auto sensing function. Simply connect devices with straight cables, whether it is a terminal or a network device.(This function does not work if the port communication configuration is set at Fixed or Link Aggregation. Ports 1 to 8 are set at MDI-X. (default))
- Due to the loop detection/shutoff function, a port where loop has occurred can be automatically shut off to prevent loop failures. When a port is shut off and recovered automatically, SNMP trap will be sent to notify the incident to the administrator. Moreover, the port with a loop can be identified by loop notification on the LEDs on the main unit and referring to the history of loop on the setting screen.
- Has a loop detection history function, which notifies when a loop occurs with the corresponding LED and enables a network administrator to identify the looped port after the loop is removed.
- Fanless design solves noise problem or fan failure.
- Power consumption can be reduced by switching off the port LEDs (left) via the ECO mode LED functions.
- The IEEE802.1p compatible QoS function is supported.
- Has an Internet Mansion function, which ensures security between each door.
- Has a port grouping function, which groups ports that are allowed to communicate with one another to limit communications between different groups.
- Equipped with energy efficient Ethernet (EEE) conforming to IEEE802.3az(LPI). When there is no data transmission at link up, the energy-saving state automatically starts so that power consumption can be reduced on each port. Factory default : Disable
- Embedded power saving mode detects the connection status automatically and saves power consumption to minimum. Factory default : Disable
- VLAN function allows free grouping of up to 256 VLANs
- IEEE802.1Q VLAN tagging is supported, and a maximum of 256 VLANs can be registered.
- The IEEE802.1X compatible user authentication function (EAP-MD5/TLS/PEAP) is supported.
- Each single port supports IEEE 802.1X, Web, and MAC authentication protocols, eliminating the need for individually setting the ports' authentication parameters.
- Supports ZEQUO assist Plus. Processes from introduction to maintenance can be performed easily.
