PN54022-NZ - 1000BASE SX 550M WITH 50-125UM MMF 60 DEG C

Name: KW Tech NZ PN54022-NZ - B2B - Networking & Routing | KW Tech NZ
Brand: KW Tech NZ
SKU: PN54022-NZ
Price: 308.08 NZD
Availability: InStock

SKU: PN54022-NZ ● In Stock

$308.08

Free shipping over $299 Genuine product 7-day returns

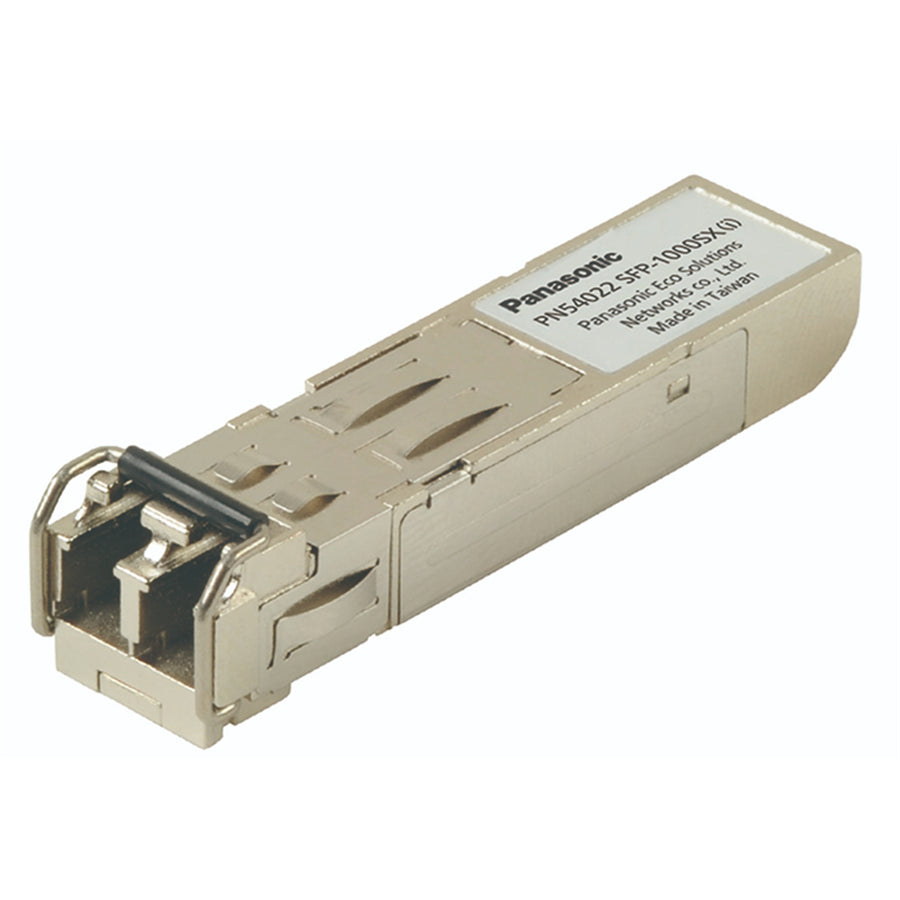

PN54022-NZ - 1000BASE SX 550M WITH 50-125UM MMF 60 DEG C

Features

1000BASE-SX SFP Module(i) is SFP (Small-Factor Pluggable) module to be connected to a Panasonic Ethernet Switch's SFP/SFP+ extension slot.

Specifications

Technical Specifications

Model No.	PN54022-NZ
Operating Voltage	DC 3.3V
Power consumption	0.7W max.
Operating environment	Temperature: 0 - 60?Humidity: 20 - 80%RH (no condensation)
Storage environment	Temperature: -20 - 70?Humidity: 10 - 90%RH( no condensation )
Standards	IEEE802.3z 1000BASE-LXINF-8074i Specification for SFP (Small Form factor Pluggable) TransceiverSFF-8472 Diagnostic Monitoring InterfaceClass 1 Laser Product (EN 60825-1, EN 60825-2)IEC61000-4-2 IEC61000-4-3 IEC61000-4-4 IEC61000-4-5IEC61000-4-6 IEC61000-4-8 IEC61000-4-11IEC62368-1EN 55024 EN55032EN 61000-3-2 EN 61000-3-3
External Dimensions	9mm(Height)×14mm(Width)×57mm(Depth) (Excluding protruding sections)
Mass(Weight)	17g
Interface	Fiber port: LC connector (Duplex), 1port
Optical wavelength	850nm
Output Optical Power	-9.5dBm min. - -4dBm max.
Optical Input Power minimum (Sensitivity)	-18dBm
Diagnostic Monitoring Interface	SFF-8472 Diagnostic Monitoring Interface for Optical Transceivers (DMI)Ethernet Switch that the device has been installed must have a DMI function too.
