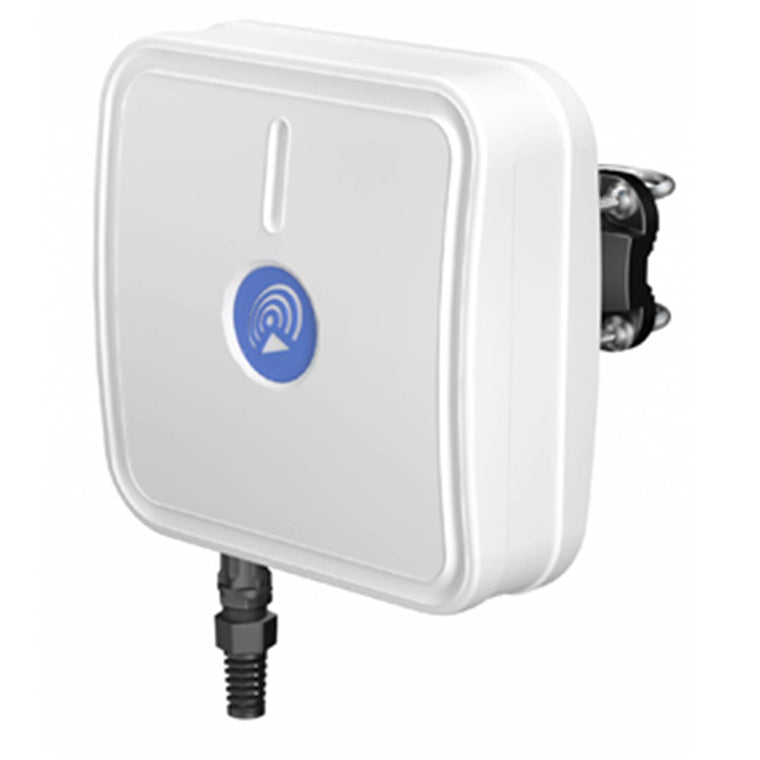

Teltonika QuMax Outdoor High Power Directional LTE Antenna & GPS Antenna for RUTX09
Features
QuMax LTE & GPS Antenna for RUTX09
Integrated outdoor multi band high power LTE directional antennas + GPS antenna + place to install Teltonika RUTX09 (All-in-one)
QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distances to a base station. It is designed to have Teltonika RUTX09 router installed inside an IP67 rated enclosure. It is the first choice for fixed installations in industrial environments. It also features an embedded GPS antenna.
- IP67 Outdoor antenna
- Passive PoE Support
- Made to fit mount
- Easy to Install
- Easy Integration with Teltonika RUTX09
Specifications
Technical Specifications
| Product Code | AX09M |
|---|---|
| Supported LTE bands | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 15, 16, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 65, 66, 67, 68, 69, 70, 71, 85 |
| Frequency Gain | 0.694 - 0.96 GHz : 4 dBi, 1.7 - 2.2 GHz : 5 dBi, 2.2 - 2.7 GHz : 6 dBi |
| Beamwidth | 90°/90° +/- 30° |
| Polarization | Vertical |
| Impedance | 50 O |
| Materials | ABS, aluminum, PTFE, Fiberglass |
| Ingress Protection | IP67 |
| Dimensions | 272 x 276 x 96 mm |
| Weight | 1.8 kg |
| Operating Temperature | From -40°C to 75°C |
| Brand | Teltonika |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
| Warranty |
|---|
