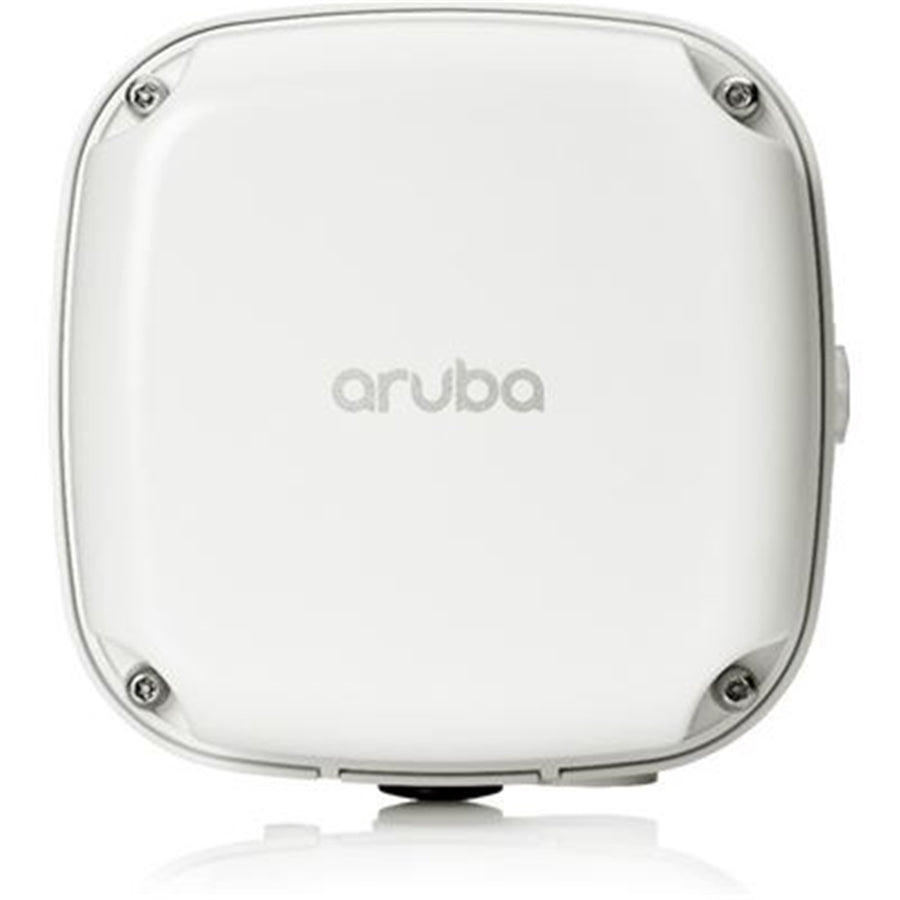

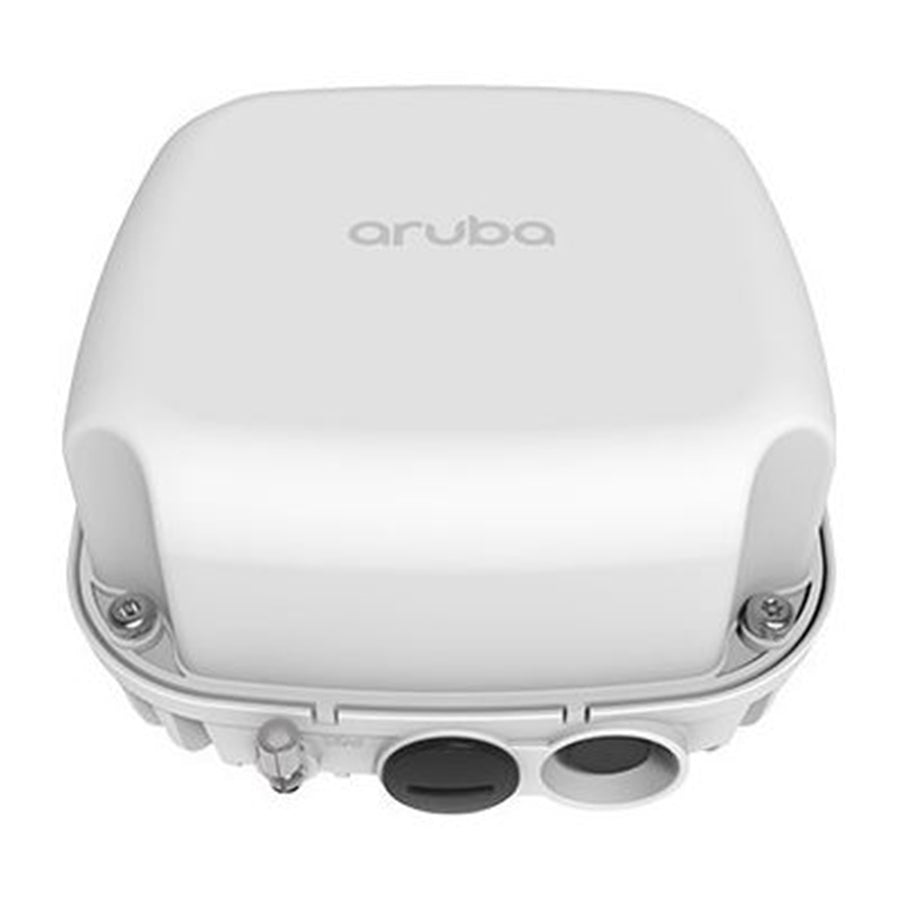

R4W43A - Aruba AP-565 (RW) Outdoor 11ax AP
R4W43A - Aruba AP-565 (RW) Outdoor 11ax AP
Features
The HPE Aruba R4W43A is a weatherproof and temperature hardened, Aruba 560 series access points deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Purpose-built to survive in the harshest outdoor environments, 560 series can withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial-strength surge protection.
Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.
Specifications
Technical Specifications
| Hardware Variants | Built-in Omni Directional Antennas5 GHz Antennas 5.4 dBi2.4 GHz Antennas 3.2 dBiBLE/802.15.4 Antennas 3.3d Bi |
|---|---|
| Wi-Fi Radio Specifications | AP type |
| Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO | Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) |
| 5GHz | Two spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
| 2.4GHz | Two spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously |
| Available channels | Dependent on configured regulatory domain |
| Supported radio technologies | 802.11b: Direct-sequence spread-spectrum (DSSS)802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU) |
| Supported modulation types | 802.11b: BPSK, QPSK, CCK802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension)802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension)802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
| 802.11n high-throughput (HT) support | HT 20/40 |
| 802.11ac very high throughput (VHT) support | VHT 20/40/80 |
| 802.11ax high efficiency (HE) support | HE20/40/80 |
| Transmit power | Configurable in increments of 0.5 dBm |
| Maximum (conducted) transmit power (limited by local regulatory requirements) | 2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2)Note: conducted transmit power levels exclude antenna gain. |
| Maximum EIRP (limited by local regulatory requirements): | 2.4 GHz band:565: 29.2 dBm EIRP567: 33 dBm EIRP5 GHz band:565: 31.4 dBm EIRP567: 32.7 dBm EIRP |
| Maximum (worst-case) power consumption | 15.6W |
| Maximum (worst case) power consumption in idle mode | 4.2W |
| Maximum (worst case) power consumption in deep-sleep mode | 1.7W |
| Power over Ethernet (PoE+) | 802.3at-compliant |
| Dimensions | 16.5 cm (W) x 16.5 cm (D) x 11 cm (H), 6.5" (W) x 6.5" (D) x 4.3" (H) |
| Operating temperature | -40° C to +55° C (-40° F to +140° F) with full solar loading |
| Operating humidity | 5% to 95% non-condensing internal |
| Storage and transportation temperature: | -40° C to +70° C (-40° F to +158° F) |
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | ARUBA |
|---|---|
| Product Type | B2B - Networking & Routing |
| Weight | 0.726 kg |
