-2%
APC

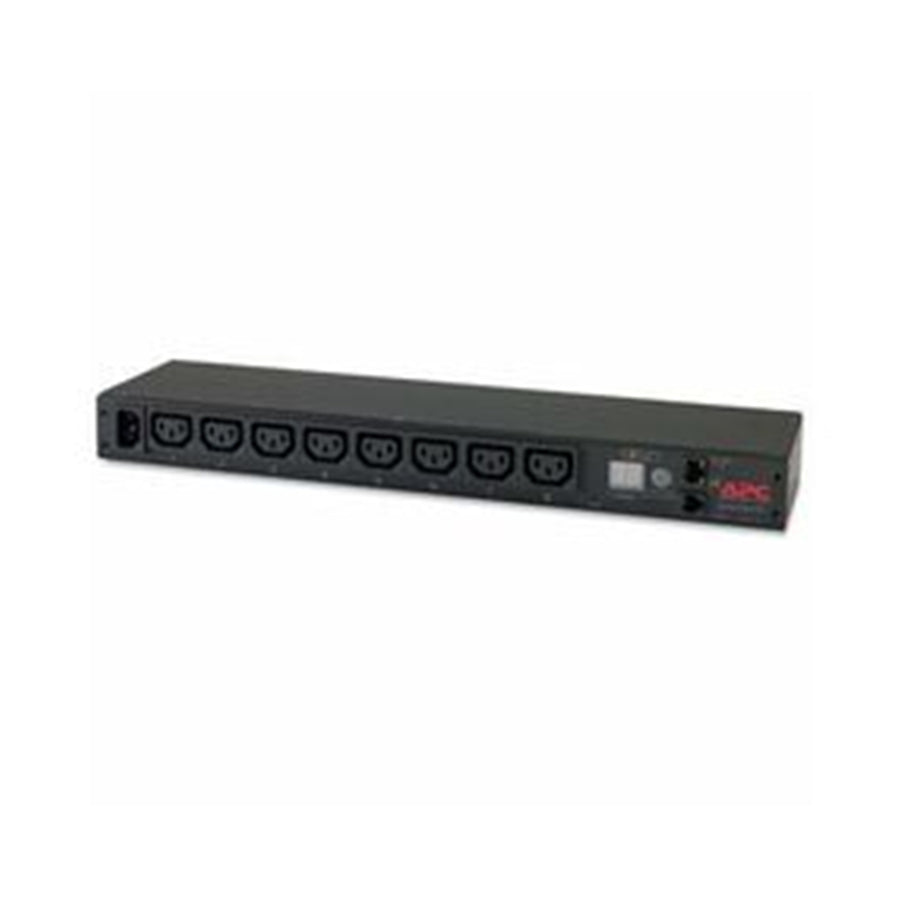

APC AP7820B - RACK PDU. METERED. 1U. 12A/208V. 10A/230
$885.21$902.98
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Specifications
Technical Specifications
| Product or component type | PDU |
|---|---|
| PDU type | Metered |
| Cord length | 2.0 m |
| Provided equipment | Cord retention bracket(s)Installation guideRack mounting bracketsUser manual |
| Input Voltage | 200 V208 V230 V |
| Height | 4.4 cm |
| Width | 44.4 cm |
| Output Voltage | 208 V230 V |
| Depth | 10.2 cm |
| Net weight | 1.73 kg |
| Mounting location | FrontRear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60320 C14 |
| Mounting mode | Rack-mounted |
| Rack units | 1U |
| Mounting position | Horizontal |
| [In] rated current | 10 A |
| Input current limits | 15 A |
| Load capacity | 2300 VA |
| Rated current | 10 A - 230 V12 A - 208 V |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 8 IEC 60320 C13 |
| Product certifications | cUL listedC-TickCECSAGOSTUL listedVDEVCCI |
| Standards | FCC part 15 class AUL 60950 |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Brand | APC |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 1.406 kg |
| Warranty |
|---|
