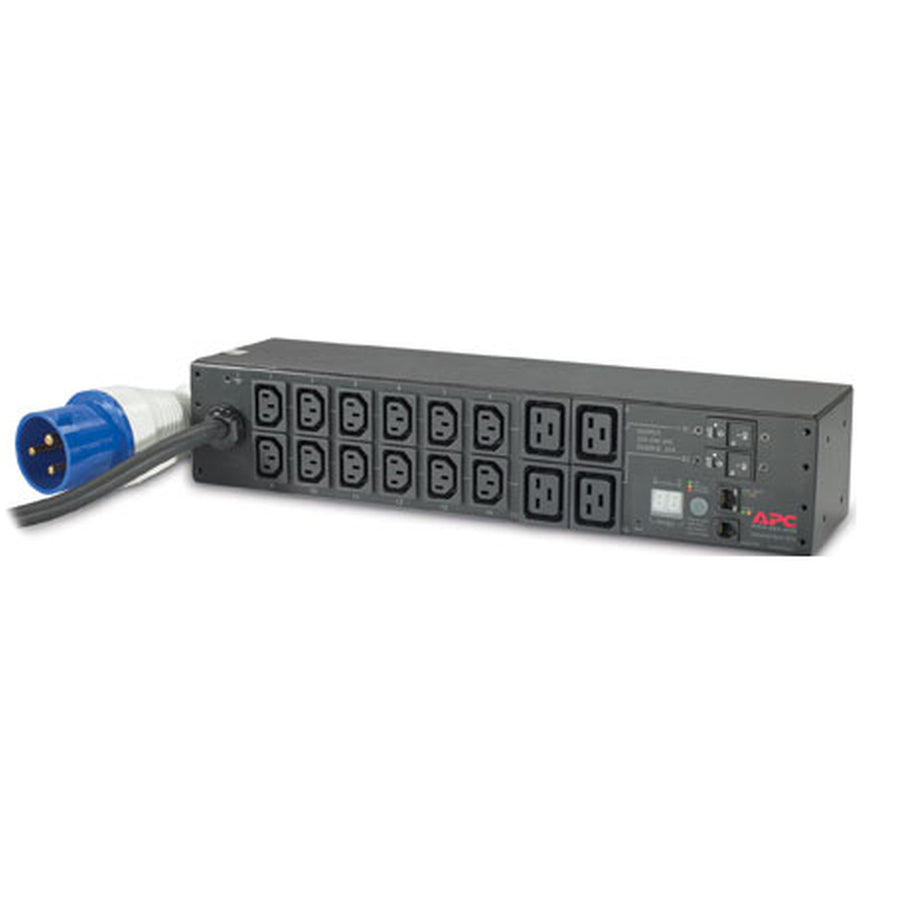

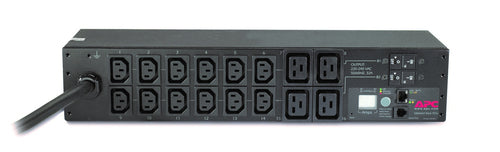

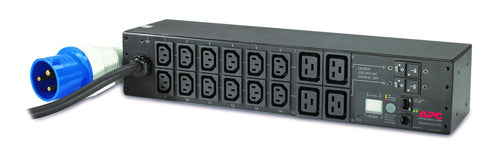

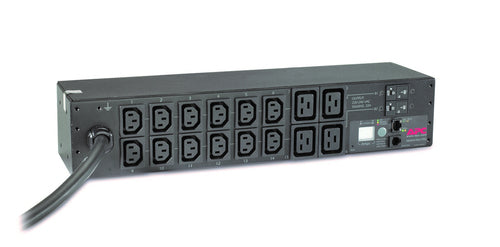

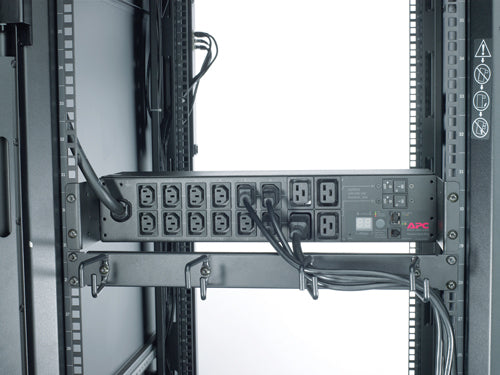

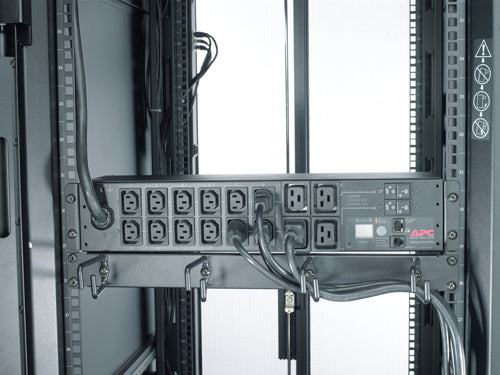

APC AP7822B - RACK PDU. METERED. 2U. 32A. 230V. (12) C
Features
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
- Ideal for larger, staffed sites and critical applications
- Helps balance loads by measuring and recording amps with +/- 5% accuracy
- Empowers IT staff with real-time remote monitoring of connected loads
- Alerts of potential circuit overloads with user-defined alarms
- Keeps cords securely connected with high retention outlets
-Environmental performance of the product
Specifications
Technical Specifications
| PDU type | Metered |
|---|---|
| Cord length | 3.66 m |
| Number of cables | 1 |
| Provided equipment | Cord retention bracket(s)Installation guideRack mounting bracketsUser manual |
| Input Voltage | 200 V208 V230 V |
| Height | 8.8 cm |
| Width | 44.4 cm |
| Output Voltage | 230 V |
| Net weight | 3.36 kg |
| Mounting location | FrontRear |
| Mounting preference | No preference |
| Input Plug Type | IEC 60309 32 A 2P + E |
| Mounting mode | Rack-mounted |
| Rack units | 2U |
| Mounting position | Horizontal |
| Input current limits | 32 A |
| Load capacity | 7400 VA |
| Network frequency | 50/60 Hz |
| Outlet type and quantity | 12 IEC 60320 C134 IEC 60320 C19 |
| Product certifications | C-TickCEGOSTIRAMMICVDEVCCI |
| Standards | FCC part 15 class AICES-003 |
| Ambient air temperature for operation | -5…45 °C |
| Relative humidity | 5…95 % |
| Operating altitude | 0...10000 ft |
| Ambient air temperature for storage | -25…65 °C |
| Storage Relative Humidity | 5…95 % |
| Storage altitude | 0.00…15240.00 m |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14 cm |
| Package 1 Width | 36.8 cm |
| Package 1 Length | 50.8 cm |
| Package 1 Weight | 5.42 kg |
| Brand | APC |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 3.152 kg |
| Warranty |
|---|
