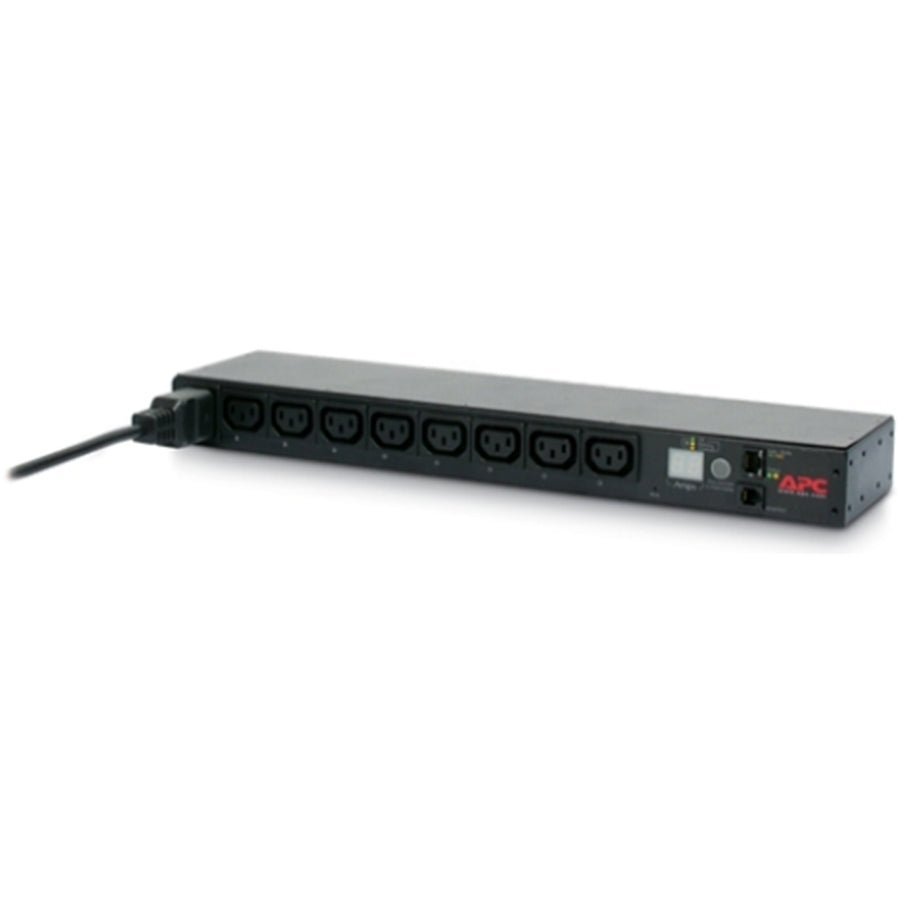

APC AP7921B - RACK PDU. SWITCHED. 1U. 16A. 208/230V. (
Features
The APC AP7921B is a Switched Rack PDU, Input: 230V, Input Connections: IEC-320 C20, Cord Length: 8.2 feet (2.5 meters), Output: 208V, 230V, Output Connections: IEC 320 C13.
This APC Switched Rack PDU power distribution unit has a wide range of standardized PDU features that increase network efficiency, manageability and functionality. The output and input connections are (8)C13. Network management capabilities allow you to configure and manage rack PDUs from remote locations. It has has a local current monitoring display that gives a visible warning in case of an overload. The remote individual outlet control provides real-time monitoring of connected loads. It has a multi-tier user access that enables you to restrict unauthorized use of outlets. This rack has a single input power source making it easy to install.
Specifications
Technical Specifications
| Height | 1.73 in. (44 mm.) |
|---|---|
| Width | 17.50 in. (445 mm.) |
| Depth | 4.25 in. (108 mm.) |
| Weight | 5 lbs. (2.27 kg.) |
| U Height | 1U |
| Color | Black |
| Nominal Input Voltage | 230V |
| Input Frequency | 50/60 Hz |
| Regulatory Derated Input Current (North America) | 16A |
| Input Connections | IEC-320 C20 |
| Cord Length | 8.2 feet (2.50 meters) |
| Number of Power Cords | 1 |
| Maximum Input Current per phase | 20A |
| Load Capacity | 3680 VA |
| Nominal Output Voltage | 208V, 230V |
| Maximum Total Current Draw per Phase | 16A |
| Output Connections | (8) IEC 320 C13 |
| Operating Environment | 32-113°F (0-45°C) |
| Operating Relative Humidity | 0% |
| Operating Elevation | 0-10000 feet (0-3000 meters) |
| Storage Temperature | -13-149°F (-25-65°C) |
| Storage Relative Humidity | 0% |
| Storage Elevation | 0-50000 feet (0-15000 meters) |
| Regulatory Approvals | cUL Listed,CE,CSA,EN 55022 Class A,EN 55024,EN 61000-3-2,EN 61000-3-3,GOST,IRAM,MIC,UL 60950,UL Listed,VDE,VCCI |
| Environmental Compliance | RoHS 7b Exemption |
| Brand | APC |
|---|---|
| Product Type | Power & Charging > UPS & Power Distribution > UPS |
| Weight | 1.701 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
