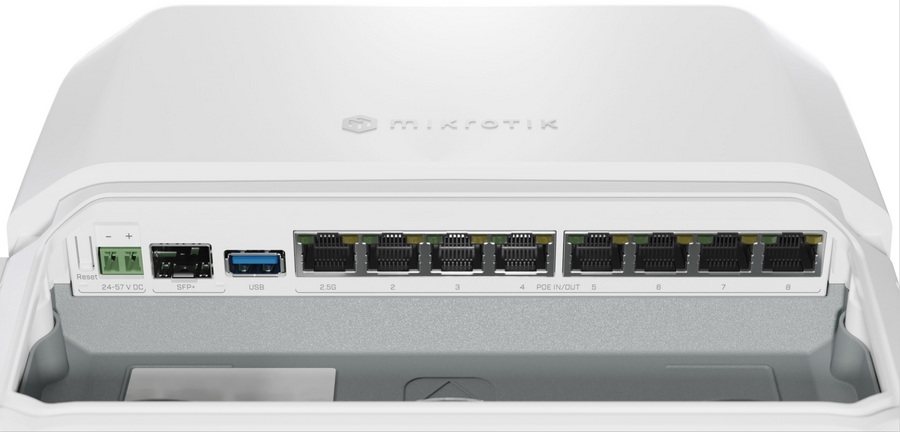

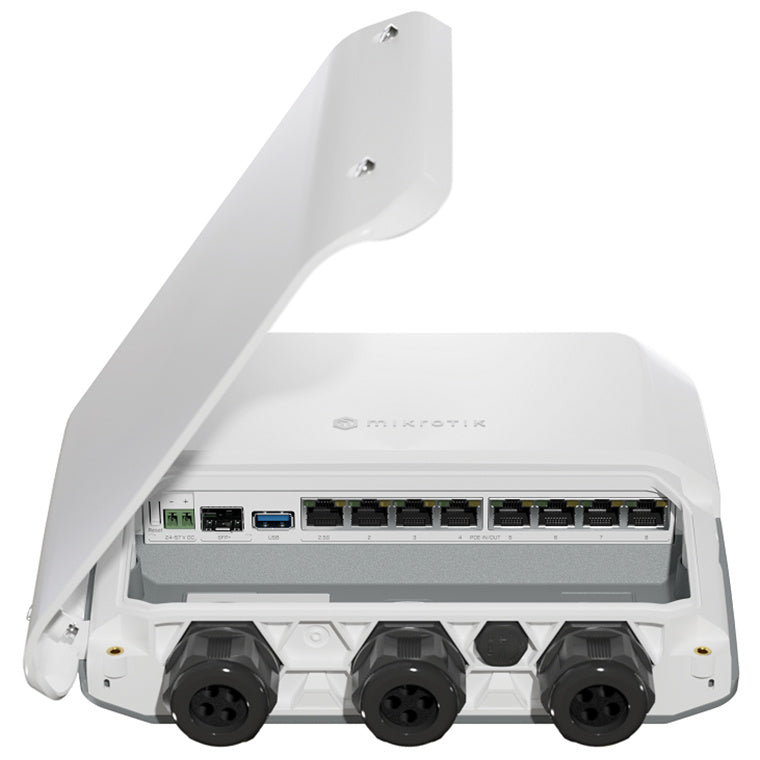

RB5009UPr+S+OUT - MikroTik RB5009UPr+S+OUT Outdoor Router with 7 x 1gb, 1x 2.5gb, 1x 10gb SFP+ and PoE-Out
RB5009UPr+S+OUT - MikroTik RB5009UPr+S+OUT Outdoor Router with 7 x 1gb, 1x 2.5gb, 1x 10gb SFP+ and PoE-Out
Features
MikroTik RB5009UPr+S+OUT is an outdoor version of their best-selling heavy-duty PoE router. Extensive power redundancy for the best price! 7x Gigabit Ethernet ports, 1x 2.5 Gigabit Ethernet, 10G SFP+, 1GB of RAM, 1GB NAND, modern quad-core CPU, 9 (!) powering options, durable IP66 waterproof enclosure.
As a network administrator, you never know when the next windstorm, lightning, flood, heatwave, or a power outage will strike. But with the right tools you can protect your network from most troubles! Here's our wishlist for the perfect tool:
- easy to deploy
- works well in ANY weather
- provides extensive power redundancy
- can be connected via most common networking interfaces
- has a CPU that is strong enough to take full advantage of the most powerful networking software in the world - RouterOS v7
- doesn't cost a fortune
Adding an IP66-rated waterproof enclosure to the RB5009 series allowed us to meet all the requirements! The brand new RB5009UPr+S+OUT is a compact, cost-effective solution that will revolutionize your network tower setups. You're getting one of the most powerful outdoor networking devices for the best price on the market!
This product also features single voltage PoE-out - it can either be 802.3at/af compatible OR low-voltage PoE-out. That is determined by the voltage on the 2-pin connector, as no voltage conversion is done on this board.
When it comes to processing power and available use-cases, this router can do it all: PPPoE termination, DHCP to customers, Local Queuing, MPLS Push/Pop/Swap and MPLS Forwarding, VPLS/VXLAN Termination, Hardware bridging, and so much more!
- PoE-Output on all Ethernet ports (802.3af/at or Passive low voltage depending on the power input)
- PPPoE termination
- DHCP to customers
- Local Queuing
- MPLS Push/Pop/Swap and MPLS Forwarding
- VPLS/VXLAN Termination
- Hardware bridging, and so much more!
- Great for Hyperfibre coonections
Specifications
Technical Specifications
| Brand | MikroTik |
|---|---|
| MPN | RB5009UPr+S+OUT |
| CPU | Quad-Core 88F7040 1.4 GHz |
| CPU architecture | ARM 64bit |
| Size of RAM | 1 GB |
| RAM type | DDR4 |
| Storage | 1 GB, NAND |
| Number of 1G Ethernet ports | 7 |
| Number of 2.5G Ethernet ports | 1 |
| Number of 10G SFP+ ports | 1 |
| USB | 1 USB 3 type A |
| Operating system | RouterOS v7, License level 5 |
| Switch chip model | 88E6393 |
| Dimensions | 222 x 239 x 57 mm |
| Operating temperature | -40°C to +70°C |
| PoE-in | 802.3af/at |
| PoE-Out | 802.3af/at Same voltage as supplied via 2-pin terminal - Passive PoE or 802.3af/at Compatible (if 44-57V PSU used) |
| PoE-Out ports | Ether1 - Ether8, max out per port output (input < 30 V): 620 mA, max out per port output (input > 30 V): 420 mA |
| Smart PoE | Controller |
| Max total out | 2.59 A |
| Total output power | 130 W |
| Total output current | 2.28 A |
| Number of DC inputs | 2 |
| Supported input voltage | 24-57 V (PoE in), 24-57 (2-pin terminal) |
| Max power consumption (without attachments) | 15 W |
| Max power consumption | 150 W |
