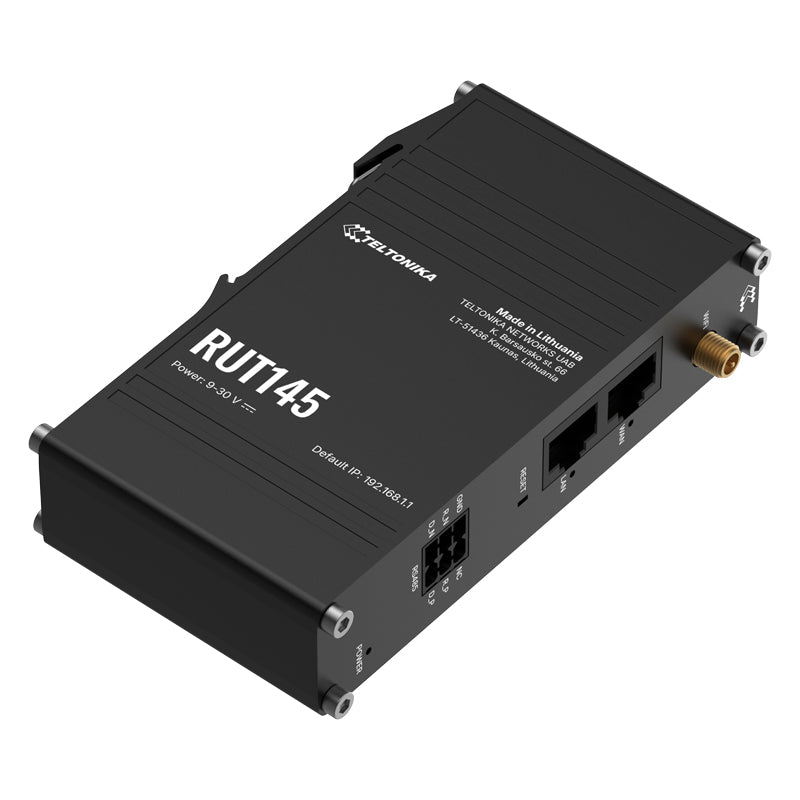

RUT145 - Teltonika RUT145 DIN RAIL Wi-Fi Ethernet Router with direct serial-to-IP bridging via RS485
Teltonika

RUT145 - Teltonika RUT145 DIN RAIL Wi-Fi Ethernet Router with direct serial-to-IP bridging via RS485

SKU: RUT145 ● In Stock
$176.81
Free shipping over $299 Genuine product 7-day returns

RUT145

RUT145 - Teltonika RUT145 DIN RAIL Wi-Fi Ethernet Router with direct serial-to-IP bridging via RS485

Description

Teltonika RUT145 DIN RAIL Wi-Fi Ethernet Router with direct serial-to-IP bridging via RS485

The Teltonika RUT145 is an industrial router with RS485 communication for manufacturing and automation, specifically designed to bridge the communication gap between RS485 field devices and IP networks. It provides seamless Ethernet/Wi-Fi connectivity combined with a native RS485 multi-drop interface. The device, running on RutOS, offers powerful network security and industrial data collection tools. Its narrow, DIN-rail-mountable design and integration with the RMS platform ensure secure remote and cost-efficient remote management at scale.

Features
  • Connect and manage multiple devices on a single RS-485 multi-drop bus
  • Collect and convert industrial data with Data to Server tool and native protocol support
  • Narrow footprint with integrated DIN rail mounting and top-entry terminal block power
  • Leverage the RMS platform for remote configuration, maintenance, VPN access, and unlimited data collection

Specifications

Details
Product code RUT14500B000
CPU Mediatek, 580 MHz, MIPS 24KEc
RAM 128 MB, DDR2
FLASH storage 16 MB serial NOR flashWireless mode
Wi-Fi security WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID SSID stealth mode and access control based on MAC address
Wi-Fi users Up to 50 simultaneous connections
Wireless Connectivity Features Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
WAN 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Routing Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
VoIP passthrough support H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall Port forward, traffic rules, custom rules, TTL target customisation
DHCP Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM) Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS Supported >77 service providers, others can be configured manually
DNS over HTTPS DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
VPN OpenVPN, OpenVPN Encryption, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, EoIP
BacNET Supported modes Router; RTU(RS485)
MODBUS Supported modes Server, Client
Supported connection types TCP, RTU(RS485)
Monitoring & Management WEB UI, FOTA, SSH, Email, TR-069, MQTT, SNMP, JSON-RPC, RMS
Serial RS485 Terminal block connector: D+, D-, R+, R- (2 or 4 wire interface)
Serial functions Console, Serial over IP, Modem, MODBUS gateway
Power Connector 3-pos plugable terminal block
Input voltage range 9-30 VDC, reverse polarity protection, surge protection >31 VDC 10us max
PoE (passive) Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC (not Included)
Power consumption Idle: < 1 W / Max: < 2 W
Status LEDs 1 x WAN type LED, 1 x LAN type LED, 1 x Power LED
Power 1 x 3-pin power connector
Antennas 1 x RP-SMA for Wi-Fi
RS485 1 x 6-pin terminal block for 2-wire or 4-wire interface
Reset Reboot/User default reset/Factory reset button
Casing material Anodized aluminium housing and panels
Dimensions (W x H x D) 113.10 x 25 x 68.6 mm
Weight 140 g
Mounting options Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating temperature -40 °C to 75 °C
Operating humidity 10% to 90% non-condensing
Ingress Protection Rating IP30
Regulatory CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE
