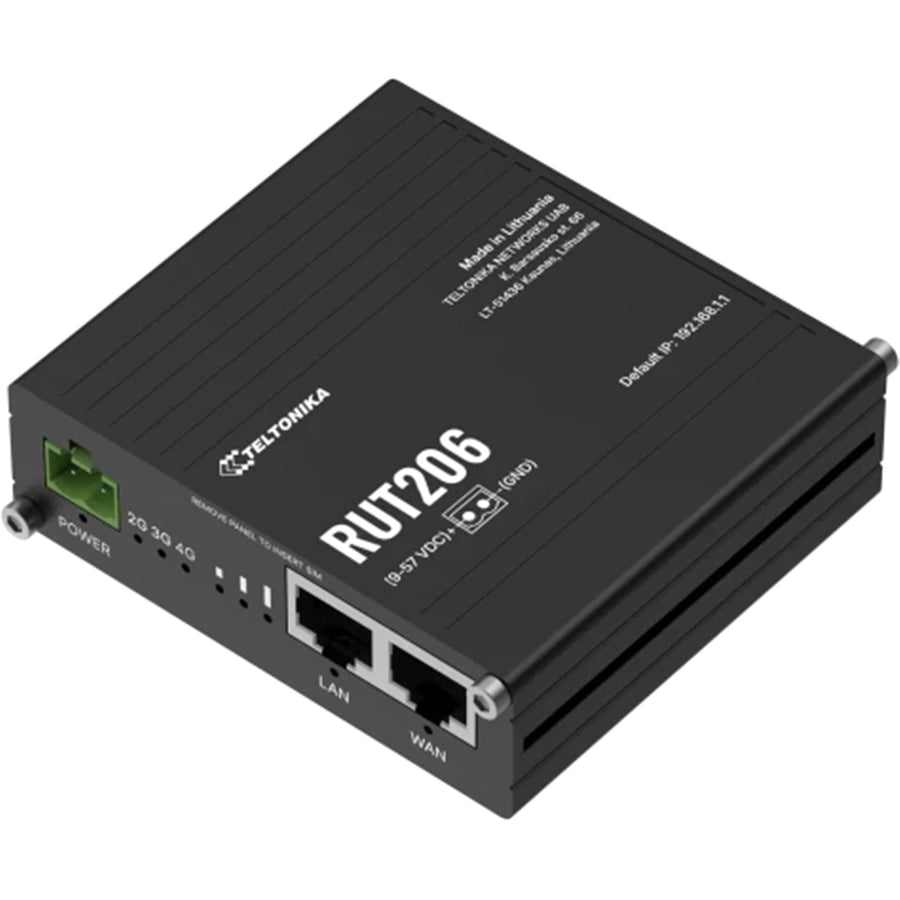

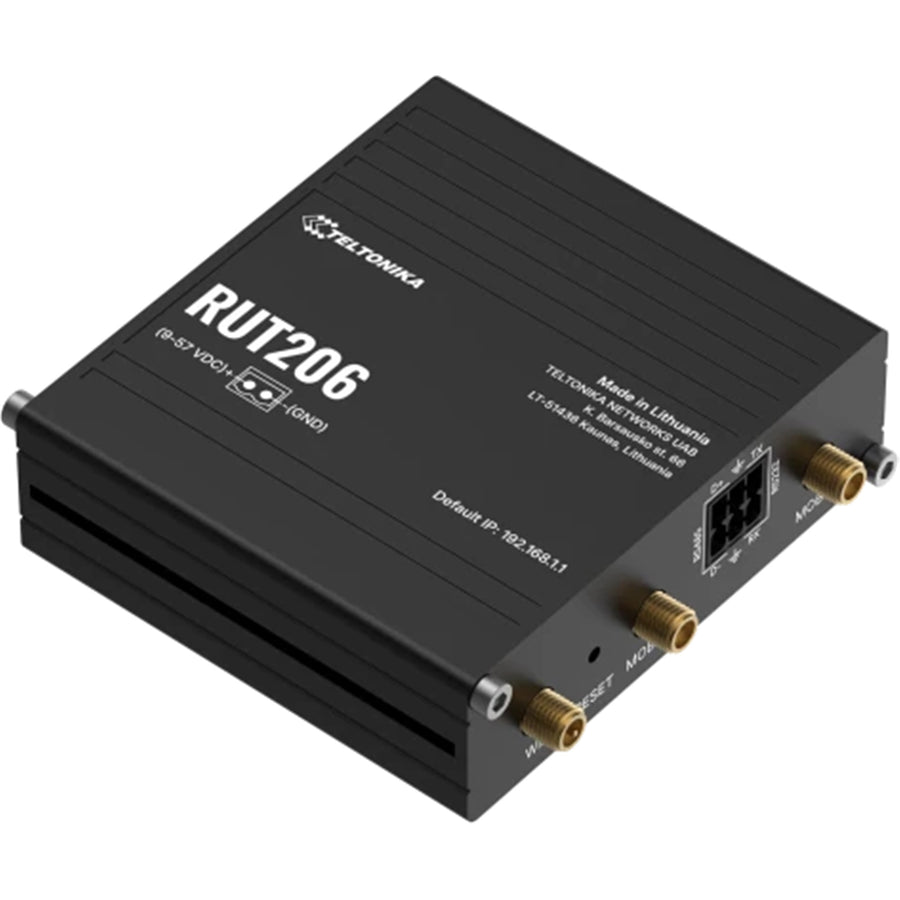

Teltonika RUT206 Industrial 4G/LTE Serial Cellular Router with Digital IO

The RUT206 is a compact industrial router that supports RS232 and RS485 serial interfaces, along with both active and passive PoE inputs. Its rugged design, 2-pin power input, and expandable data storage via a microSD slot make it an ideal choice for a range of IoT and M2M applications. This 4G Cat 4 router comes with RutOS open-source software and supports key industrial protocols like Modbus, DNP3 and DLMS

Details
Product code	RUT206
Mobile module	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps
3GPP Release	Release 9
SIM switch	2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Wireless mode	802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
WAN	1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN	1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc
MODBUS	Server/Client, Supports RTU/TCP
CPU	Mediatek, 580 MHz, MIPS 24KEc
RAM	128 MB, DDR2
FLASH storage	32 MB, NOR Flash

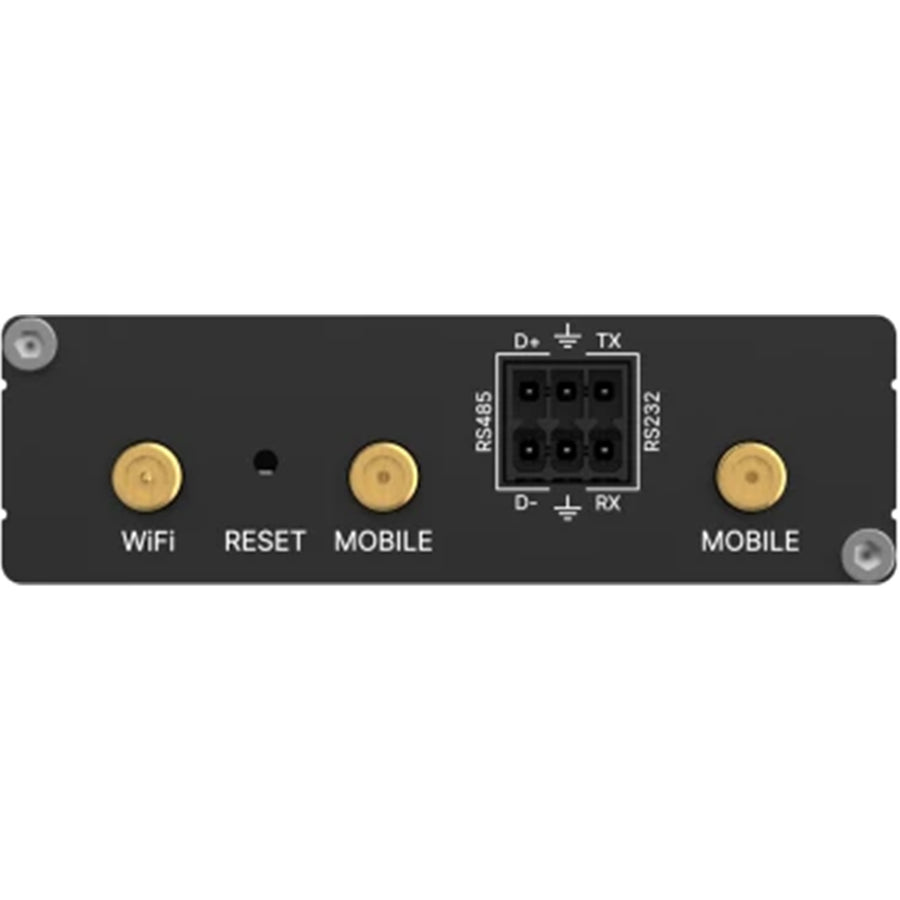

RS232	RS232 interface without flow control signals
RS485	Half duplex (2-wire) RS485 interface
PoE ports	1 x PoE In
PoE standards	Active PoE input 802.3af Class 0 (12.94 W) on LAN port
Connector	2-pin industrial DC power socket

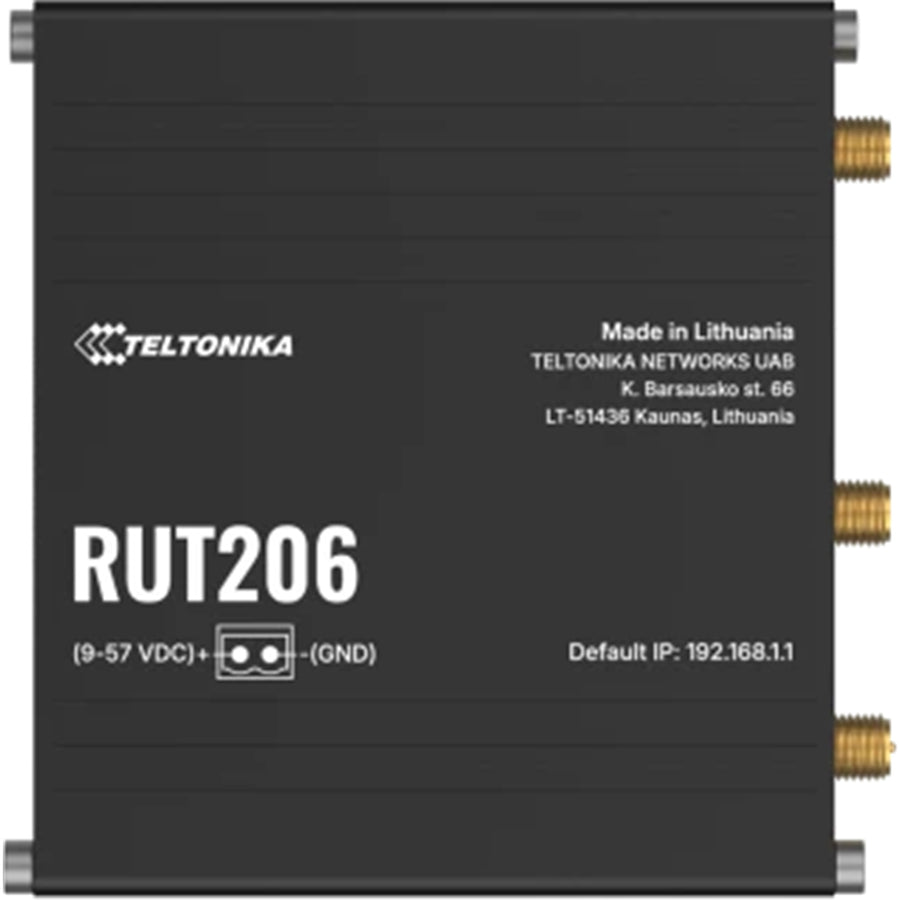

Input voltage range	9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min
PoE (passive)	Passive PoE over spare pairs 4,5 (+) / 7,8 (-). Possibility to power up through LAN port, passive PoE voltage: 16 - 57 VDC
Power consumption	Idle: < 2 W, Max: < 3.5 W

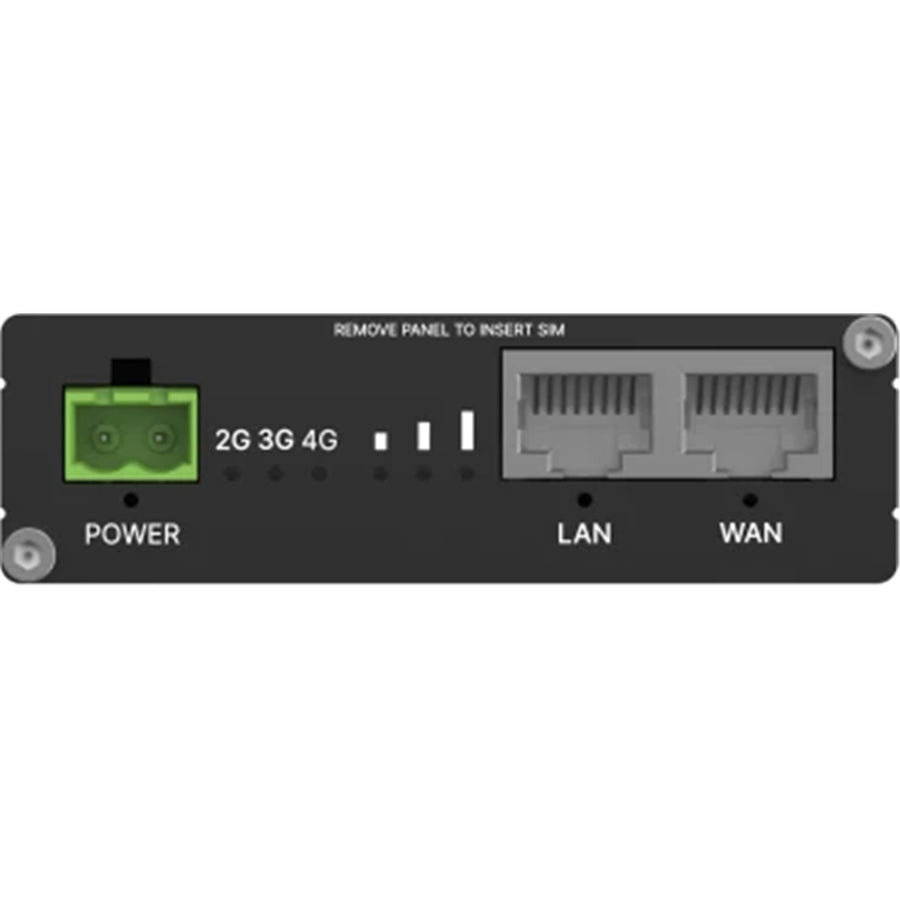

Status LEDs	3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Antennas	2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
Reset	Reboot/User default reset/Factory reset button
Casing material	Anodized aluminum housing and panels
Dimensions	83 x 25 x 83 mm
Weight	132 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
