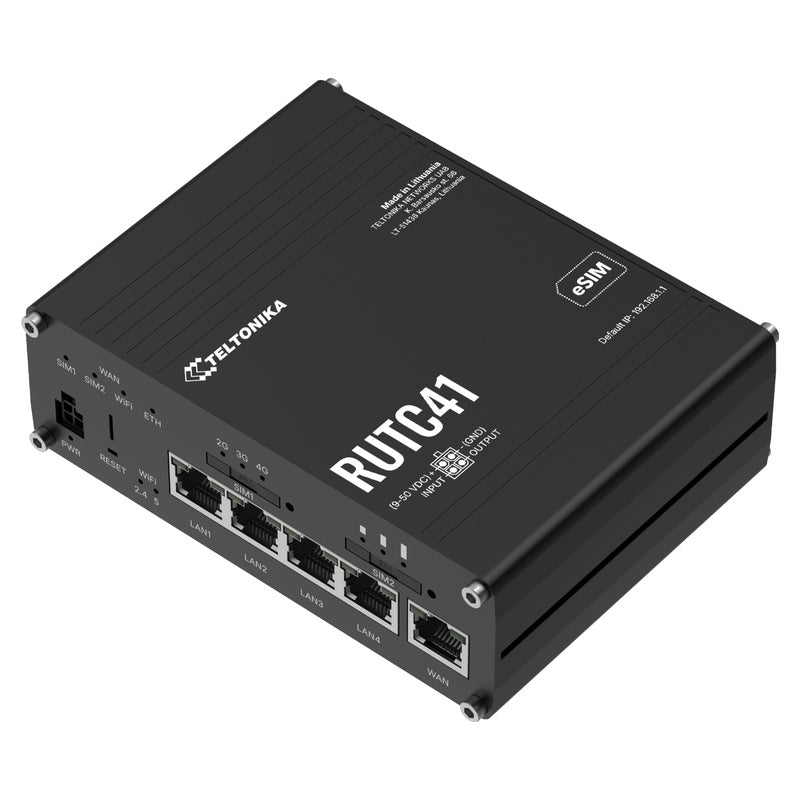

RUTC41 - Teltonika RUTC41 4G Edge Router with WiFi 6 and Docker Support

RUTC41

RUTC41 - Teltonika RUTC41 4G Edge Router with WiFi 6 and Docker Support

Introducing the Teltonika RUTC41 4G Edge Router, bring powerful on-site computing to your industrial deployments with the RUTC41 edge router. This high-performance yet compact and versatile device combines 4G Cat 4 connectivity with advanced processing power and dual-band Wi-Fi 6. Built-in Docker support allows you to run containerized applications directly on the router. Equipped with 1 GB RAM, a dual-core 1.3 GHz CPU, and industrial-grade RutOS features, the RUTC41 delivers secure networking, cloud integration, and real-time data logger in one rugged device.

Details
Product code	RUTC4100AA00
Product Description	4G EDGE ROUTER
Mobile Module	4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
4G (LTE-FDD)	B1, B3, B5, B7, B8, B20, B28
4G (LTE-TDD)	B38, B40, B41
3G Bands	B1, B8
2G Bands	B3, B8
eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
3GPP Release	Release 9
SIM Switch	2 SIM cards and 1 eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Mobile Status Parameters	Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Operator Block/Allow List	Operator block/allow list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection Service	Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Framed Routing	Framed routing: support an IP network behind 5G UE
Wireless Mode	802.11b/g/n/ac/ax (Wi‑Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU‑MIMO)
Wi‑Fi Security	WPA2‑Enterprise: PEAP, WPA2‑PSK, WPA‑EAP, WPA‑PSK, WPA3‑SAE, WPA3‑EAP, OWE; AES‑CCMP, TKIP, Auto‑cipher modes, client separation, EAP‑TLS with PKCS#12 certificates, disable auto‑reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID	SSID stealth mode and access control based on MAC address
Wi‑Fi Users	Up to 500 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Once scanned, a user will automatically enter your network without needing to input login information
TravelMate	Forward Wi‑Fi hotspot landing page to a subsequent connected device
WAN Port	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN Ports	4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
CPU	Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM	1 GB, DDR4
Flash Storage	16 MB serial NOR flash, 8 GB eMMC Flash
Power Connector	4‑pin industrial DC power socket
Input Voltage Range	9 – 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 50 VDC
Power Consumption	Idle: < 5.5 W, Max: < 13.5 W
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
SIM Slots	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
Antennas	2 x SMA for Mobile, 3 x RP‑SMA for Wi‑Fi
USB	1 x USB A port
Casing Material	Anodized aluminium housing and panels
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non‑condensing
Ingress Protection Rating	IP30
Dimensions (W x H x D)	130.4 x 42.6 x 104 mm
Weight	480 g
