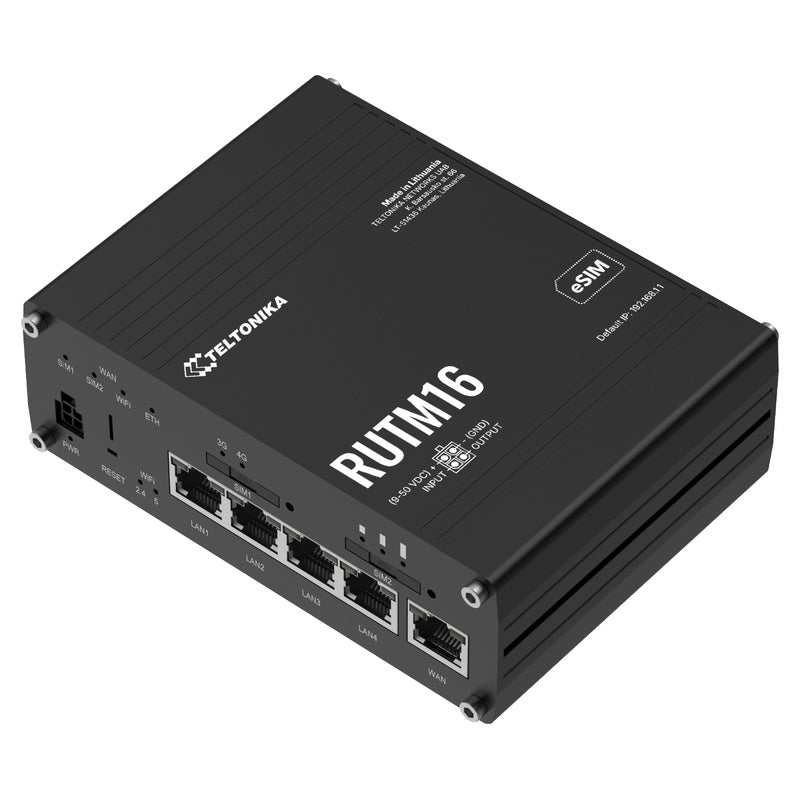

RUTM16 - Teltonika RUTM16 Global Cat 6 LTE Router

RUTM16

RUTM16 - Teltonika RUTM16 Global Cat 6 LTE Router

The Teltonika RUTM16 Global Cat 6 LTE Router is a versatile LTE router engineered for worldwide deployments. Ensure reliable global operation with its Telit modem, which provides Cat 6 speeds and coverage across multiple markets. For maximum versatility, connect IoT and industrial setups via robust 5x Gigabit Ethernet and USB ports, and enjoy stable wireless access with Dual-band Wi-Fi 5 featuring Mesh and Fast Roaming. Use the integrated eSIM to eliminate site visits by managing carrier profiles at scale. The RUTM16 is the ideal 4G router for large-scale applications like robotics, transport, roadside infrastructure, and POS terminals.

Details
Product code	RUTM16000300
Mobile Module	4G LTE Cat 6 up to 300 DL/50 UL Mbps; 3G up to 42 DL/5.76 UL Mbps
4G Bands	B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B38, B39, B40, B41, B42, B43, B48, B66, B71
3G Bands	B1, B2, B4, B5, B6, B8, B9, B19
3GPP Release	Release 12
eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM Switch	Dual sim cards and esim, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi‑Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU‑MIMO)
Wi‑Fi Users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
WAN Port	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN Ports	4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
CPU	MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM	256 MB, DDR3
Flash Storage	16 MB serial NOR flash, 256 MB serial NAND flash
USB Data Rate	USB 2.0
Input/Output Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Input/Output Output	1 x Digital Output, Open collector output, max output 50 V, 300 mA
Power Connector	4-pin industrial DC power socket
Input Voltage Range	9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max
PoE (Passive)	Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power Consumption	Idle: < 5 W, Max: < 18 W
Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
SIM Slots	2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V
Antennas	4 x SMA for Mobile, 2 x RP‑SMA for Wi‑Fi, 1 x SMA for GNNS
USB	1 x USB A port for external devices
Casing Material	Anodized aluminium housing and panels
Dimensions (W x H x D)	132 x 44.2 x 104 mm
Weight	530 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non‑condensing
Ingress Protection Rating	IP30
Regulatory	CE/UKCA, FCC, Giteki, WEEE
