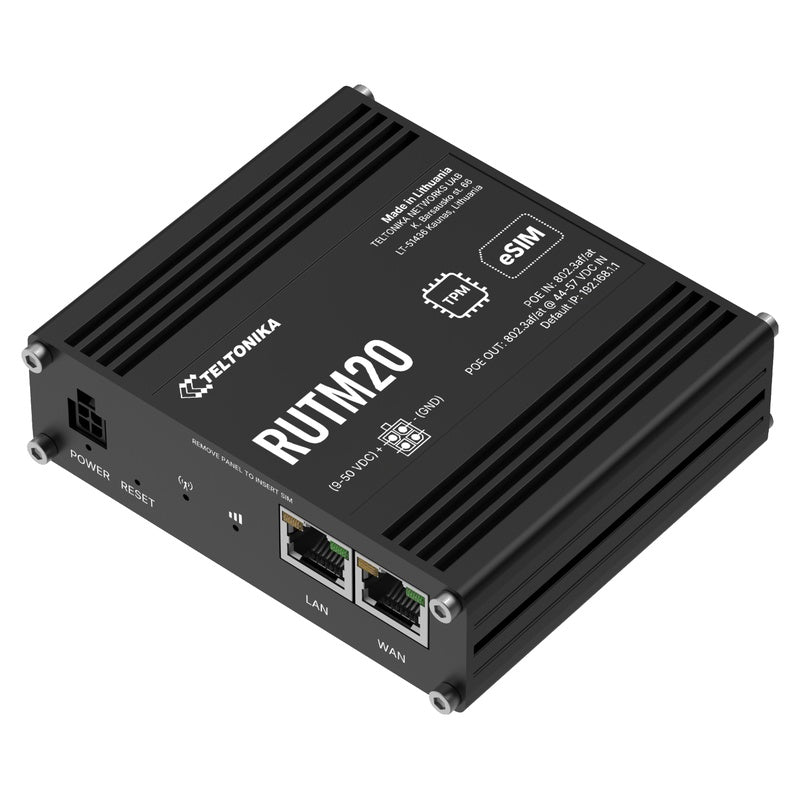

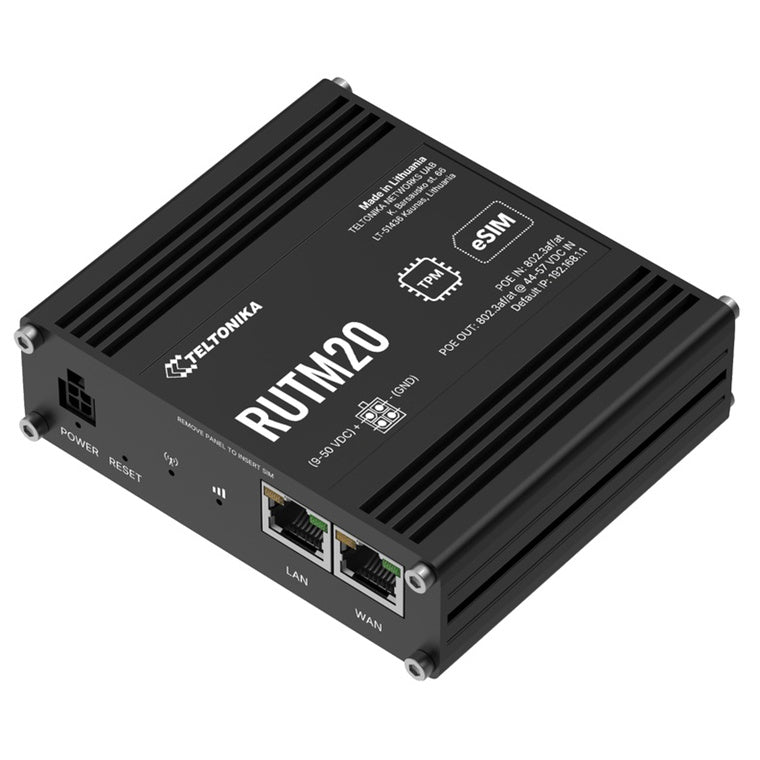

Teltonika RUTM20 Compact 5G Router with WiFi 5, PoE Out and Dual SIM.

Deploy 5G where size and cost matter. The RUTM20 is an ultra-compact global 5G router engineered for IoT and IIoT solutions. Leverage worldwide connectivity with a global Telit 5G modem. Streamline deployments with PoE, enabling single-cable power delivery. With integrated eSIM, you can manage carrier switching at scale, eliminating costly site visits. RUTM20 is perfect for space-constrained solutions like POS, surveillance, and transport.

Details
Product code	RUTM20100400
Mobile Module	5G Sub-6Ghz SA/NSA 2.5/3.4Gbps DL (4x4 MIMO), 900/550 Mbps UL (2x2); 4G (LTE) – LTE Cat 19 1.6Gbps DL, LTE Cat 18 211Mbps UL; 3G – 42 Mbps DL, 5.7Mbps UL
5G NR SA, NSA	n1, n2, n3, n5, n7, n8, *n12, *n13, *n14, *n18, n20, n25, *n26, n28, *n29SDL, n30, n38, n40, n41, n48, n66, n71, n75SDL, *n76SDL, n77, n78, n79
4G Bands	B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(SDL), B30, B32(SDL), B34, B38, B39, B40, B41, B42, B43, B46(SDL), B48, B71
3G Bands	B1, B2, B4, B5(B6, B19), B8
3GPP Release	Release 16
eSIM	Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
SIM Switch	2 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
Status	IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
SMS	SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD	Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow List	Operator block/allow list (by country or separate operators)
Multiple PDN	Possibility to use different PDNs for multiple network access and services
Band Management	Band lock, Used band status display
SIM Idle Protection Service	Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN Code Management	SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and device on LAN
Passthrough	Router assigns its mobile WAN IP address to another device on LAN
Framed Routing	Framed routing: support an IP network behind 5G UE
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi‑Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU‑ MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
Wi‑Fi Users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
WAN Port	1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN Port	1 x LAN port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
VPN	OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard, Tinc, Tailscale
CPU	MediaTek, Dual-Core, 880 MHz, MIPS1004Kc
RAM	256 MB, DDR3
Flash Storage	16 MB serial NOR flash, 256 MB serial NAND flash
PoE IN Ports	1 x PoE In (WAN port)
PoE IN Standards	802.3af/at (WAN port), Alternative A and B
PoE (Passive)	Passive PoE (WAN port), Mode A and B, 18–50 VDC
PoE OUT Ports	1 x PoE Out (LAN port)
PoE OUT Standards	802.3af/at (LAN port), Alternative A
PoE Max Power per Port	30 W
Power Connector	4-pin industrial DC power socket
Input Voltage Range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
Power Consumption	Idle: < 4.5W, Max: < 8.5 W
Ethernet	2 x RJ45 ports, 10/100/1000 Mbps
SIM Slots	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V
Antennas	4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi
Casing Material	Anodized aluminium housing and panels
Dimensions (W x H x D)	100 x 30 x 93.7 mm
Weight	319 g
Mounting Options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Temperature	-40 °C to 75 °C
Operating Humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30
Regulatory	CE, UKCA, CB, RCM, FCC, WEEE
