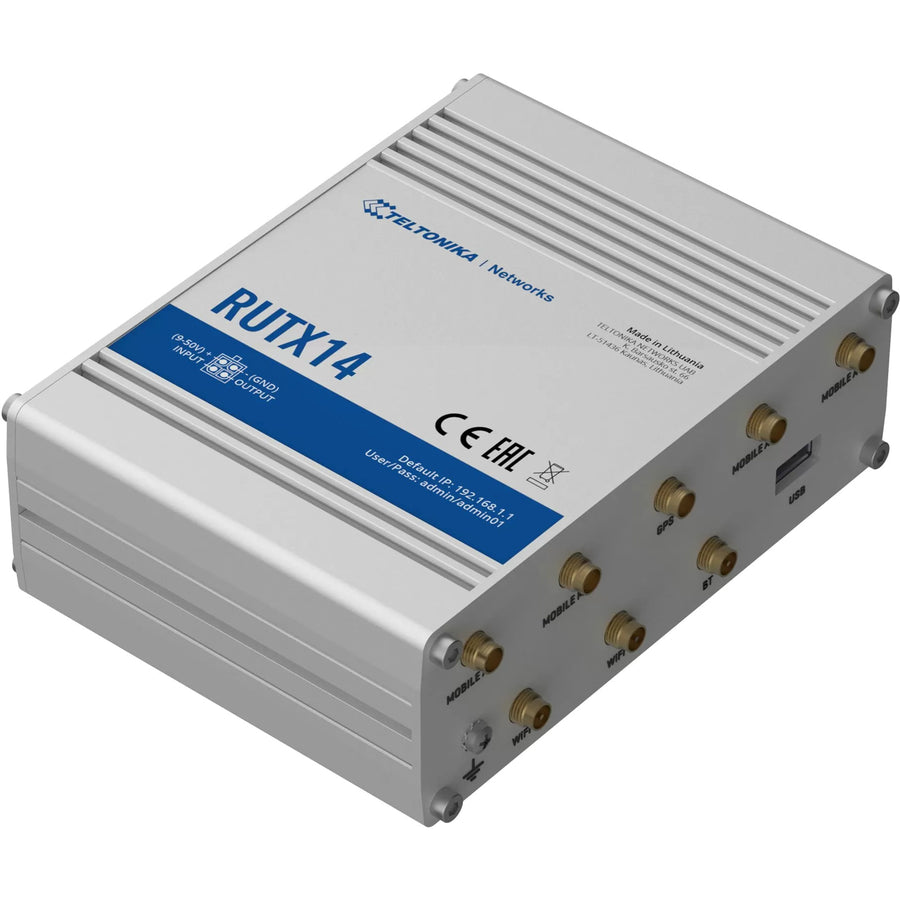

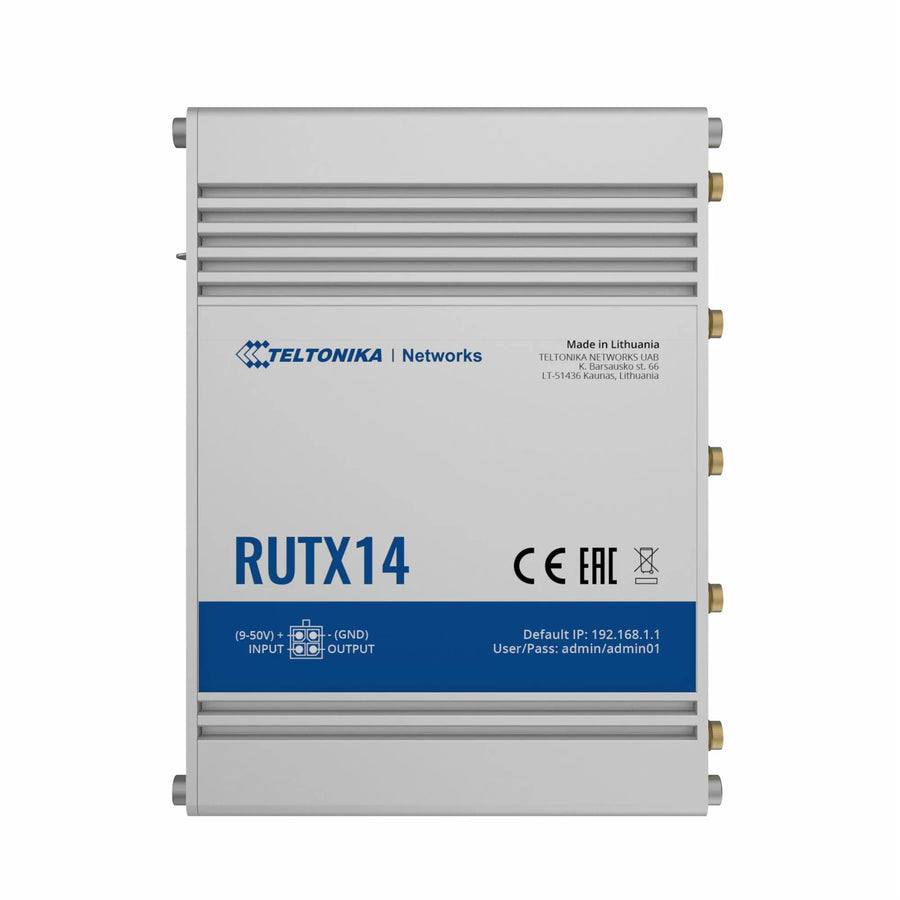

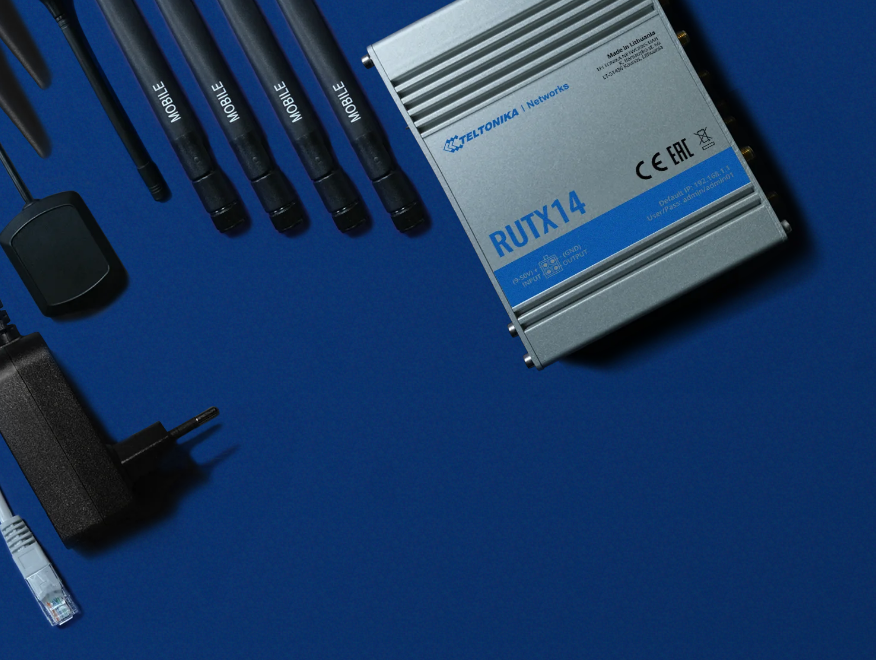

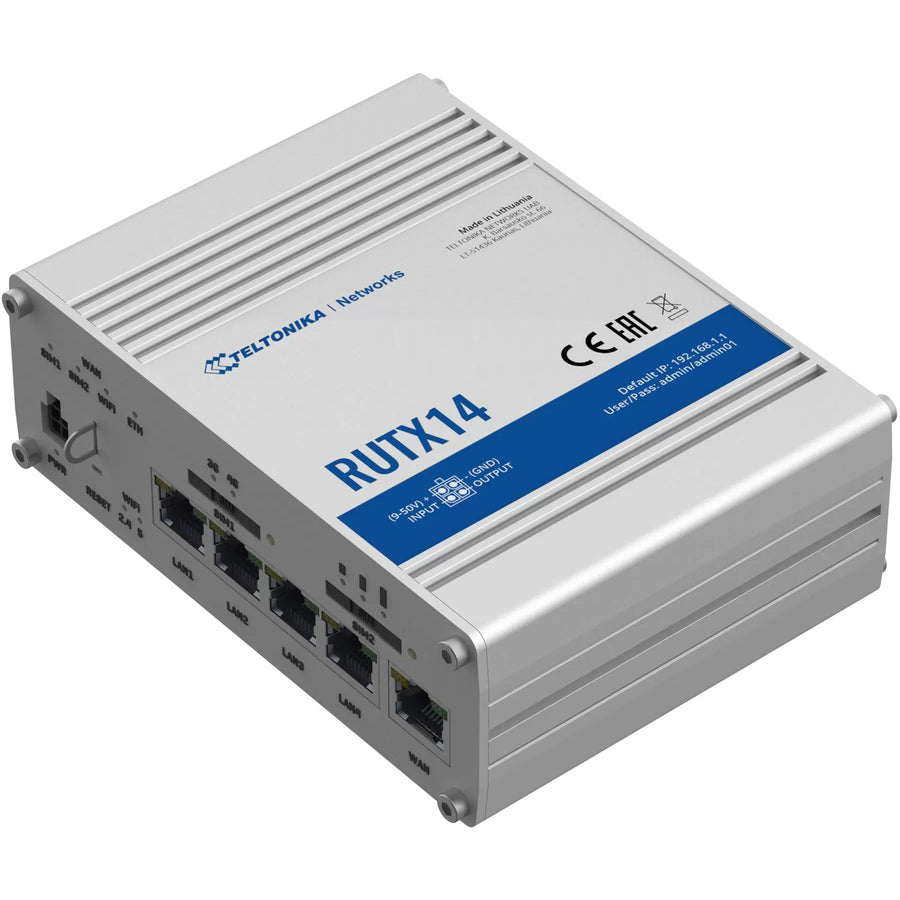

RUTX14 - Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth

RUTX14

RUTX14 - Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth

Teltonika RUTX14 Dual SIM 4G/LTE Cat 12 802.11ac IoT Wi-Fi Cellular Router with GPS and Bluetooth. The Teltonika RUTX14 is the fastest single modem LTE router in our portfolio. It has five Gigabit Ethernet ports, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, and USB interfaces and dual SIM for advanced throughput and ultra-reliable connectivity. Equipped with advanced security features like multiple VPN's, firewall & cyber attack prevention.

The RUTX14 is a combination of fast CAT12 connectivity, wide range of physical interfaces, extensive RutOS functionality and great remote management capabilities make this device an excellent choice for primary or backup connectivity

Details
Product code	RUTX14000000
Mobile	2 x 4G (LTE) – Cat 12 up to 600 Mbps, 3G – up to 42 Mbps
Supported Bands	4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28, B32; 4G (LTE-TDD): B38, B40, B41; 3G: B1, B3, B5, B8
CPU	Qualcomm, 4 x ARM Cortex A7, 717 MHz
Memory	256 MBytes Flash, 256 MBytes RAM
Powering option	4 pin power socket, 9-50 VDC
SIM	2 x External SIM holders (2FF)

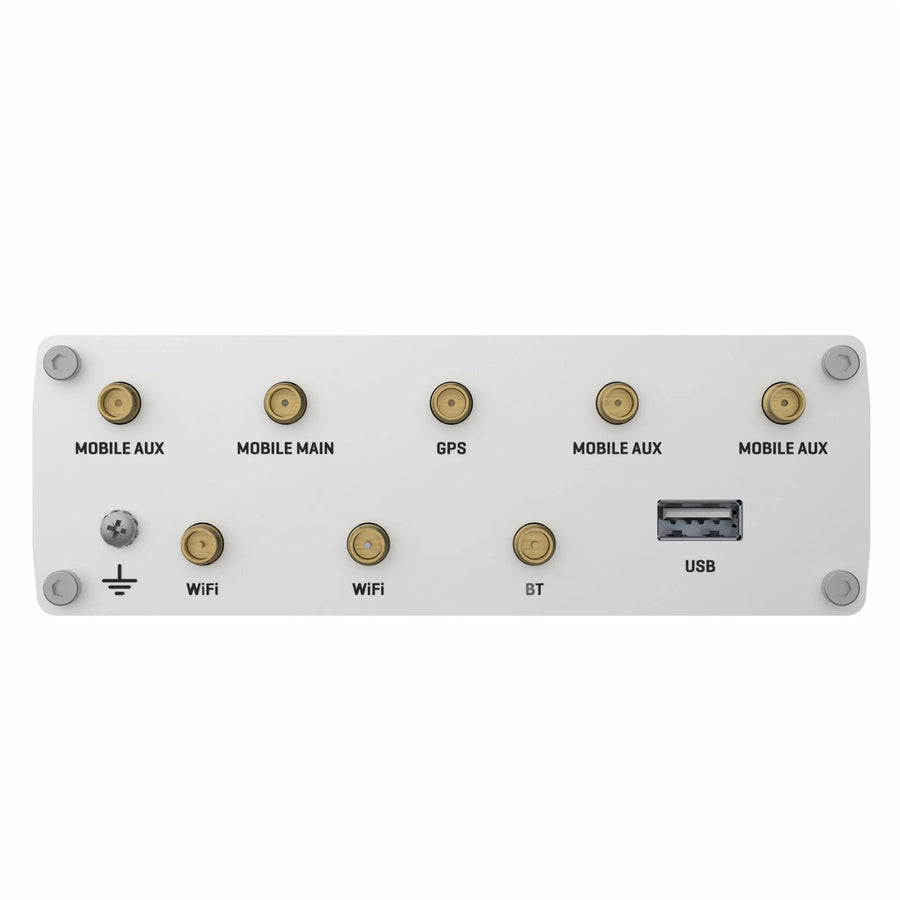

Antenna connectors	4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS

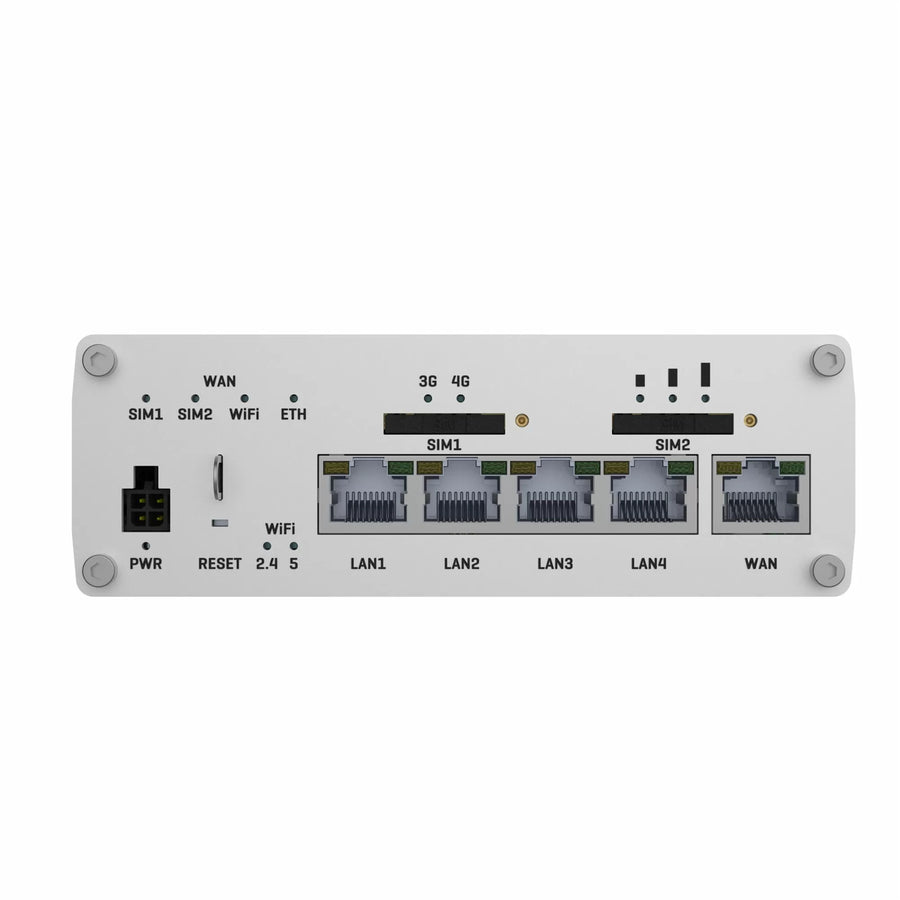

Ethernet	5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
WiFi	IEEE 802.11b/g/n 2.4GHz, IEEE 802.11n/ac 5GHz, Access point (AP), Station (STA)
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth	4.0 (Low energy)
Inputs/Outputs	On 4 pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs	4 x WAN type, 2 x Connection type, 3 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
Operating temperature	-40 °C to 75 °C
Housing	Aluminium housing with DIN rail mounting option and grounding capability
Dimensions	(W x H x D) 132 x 44 x 95 mm
Weight	515 g
Operating system	RutOS (OpenWrt based Linux OS)
Network	Failover (Network backup), VLAN, QoS, Load Balancing
Routing	Static routes, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP), Routing rules
Monitoring and management	WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS
Cloud solutions	RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx
Hotspot	External/Internal Radius, SMS OTP, MAC authentication, Walled Garden
Supported Hotspot platforms	IronWiFi, HotspotSystem, Cloud4Wi, SAI + WiFi, MugiCloud, Purple.ai
