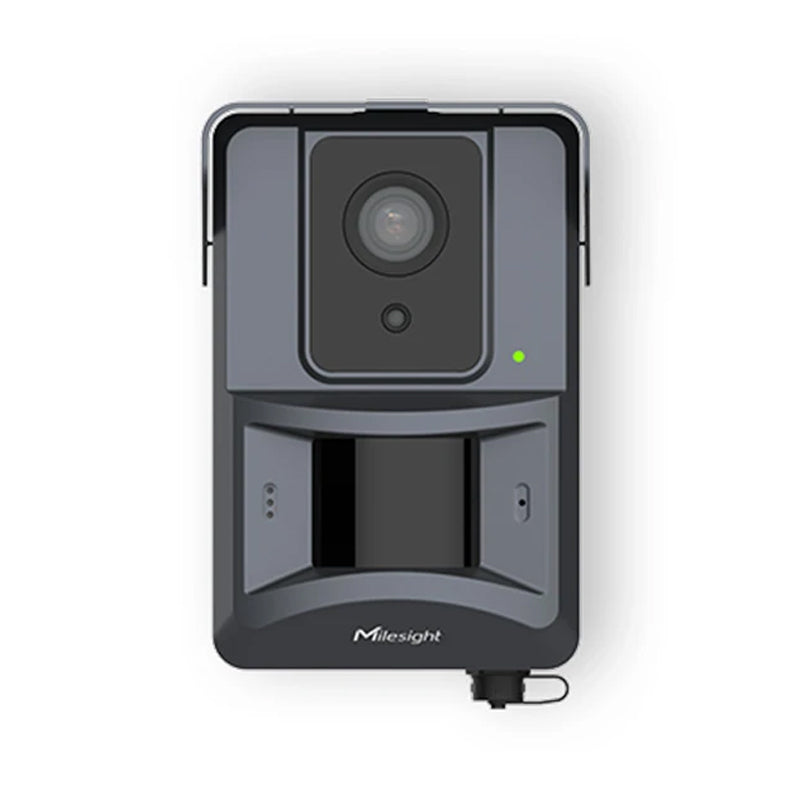

SC411 - Milesight 4MP NDAA 4G Solar-powered Perimeter Sensing Camera

SC411

SC411 - Milesight 4MP NDAA 4G Solar-powered Perimeter Sensing Camera

Milesight 4G Solar-powered Perimeter Sensing Camera is a wireless perimeter protection solution designed for sites without fixed power or network infrastructure.With built-in 4G connectivity and solar-ready power options, it enables rapid deployment and stable operation in off-grid and temporary environments. By combining motion sensing with visual verification, it delivers reliable perimeter alerts backed by images, allowing operators to detect intrusions early and respond with confidence.

PID Camera adopts a tri-sensing perimeter detection architecture, combining PIR motion sensing, AOV visual awareness, and on-edge AI visual filtering. Milesight supports flexible detection modes including Always PIR or day-time AOV + night‑time PIR, helping balance power consumption and responsiveness. With a detection range of up to 30 m, it delivers early intrusion awareness across wireless and off-grid deployments. PIR-based detection enables low-power, motion-triggered monitoring for long‑term off-grid operation. AOV-based detection provides continuous visual awareness for scenarios requiring higher sensitivity. On-edge AI visual verification analyzes captured images, ensuring that only true intrusion events generate alerts.

Both AOV and PIR detection modes can enable on-edge AI verification, and users can define effective zones on the image to match the real perimeter, filtering out irrelevant activity such as roadside vehicles or pedestrians passing nearby. By completing high-accuracy verification directly on the device, PID Camera reduces unnecessary wake-ups and minimizes reliance on 4G-triggered alarm linkages that may introduce latency, while also lowering bandwidth and data consumption.

When an event is triggered, Milesight camera supports flexible alert actions to fit different workflows. It can push alarms, evidence snapshots or event clips to your backend via HTTP(S) or MQTT(S), send notifications by email, or trigger on-site deterrence through an audio-out interface connected to a speaker to play pre-recorded warning messages.

Milesight camera goes beyond alarms to deliver a clear, evidence-ready trail. Powered by 4MP resolution and a 1/1.8" large sensor, it captures richer details when incidents happen, supporting confident incident review and reporting. Milesight provides three flexible evidence formats: a set of snapshots, a short event clip, or a snapshot + short recording, so operators get clearer, more complete proof than single-image alert outputs.

Details
Product Code	SC411-AU
Image Trigger Mode	1- PIR (All Day): 24/7 Trigger-only capture. 2- AOV (Day) + PIR (Night): Always-on by day; Trigger-only by night.
Event Type	Supports Motion Detection (with AI-based human filtering), Noise Detection, Scheduled Tasks, One-Click Disarm, and Exception events (Tamper Detection, SD Card Exception, Battery Status Alert, Data Usage Alert, PIR Overtrigger Alert).
Trigger Actions	Snapshot group (1–5 images) /Video clip (2–5 seconds) /Combined snapshot & video clip (2–5 seconds)
Data Push	HTTP(s) POST, MQTT(s) POST, SMTP upload.
Alarm Actions	Capture images, send video clips, or play audio (supports custom uploaded audio files).
Trigger Distance	Up to 30 m (Optimal)
Light Type	IR Strobe Light (4 light beads)
IR Wavelength	850nm
Sound Sensor	Range: 31dBA ~ 120dBA Accuracy: ± 3dB Resolution: 1dB
Lens	Fixed focal lens, 4mm
Aperture	F1.0
Field of View	D: 111.8°/ H: 93.1°/ V: 49.8°
DORI	D: 78.4m/ O: 30.8m/ R: 15.4m/ I: 7.7m
Image Sensor	1/1.8″ Progressive Scan CMOS
Day/Night Mode	Day/Night/Auto/Customize
Image Setting	Brightness/Contrast/Saturation/Sharpness
Max. Image Resolution	4MP (2688*1520)
Stream	Max 5fps@(2688*1520, 2304*1296, 1920*1080, 1280*720)
Video Compression	H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate	16Kbps~6Mbps(CBR/VBR Adjustable)
Alarm I/O	1*Alarm Output
Audio I/O	1*Audio Output Built-in Microphone
Power Input & RS485	M12 (5-pin) connector to power and RS485 interface
USB	1*Type-C (USB 2.0) for Power Supply and Debug
Button	1*Power Button, 1*Reset Button, 1*Wi-Fi Button
LED Indicator	1*Status Indicator
WLAN	WiFi AP Mode for Configuration (IEEE 802.11 b/n/g, 2.4GHz) WiFi STA Mode
Cellular	4G LTE EU: LTE-FDD (B1/3/7/8/20/28A); LTE-TDD (B38/40/41) NA: LTE-FDD(B2/4/5/12/13/14/66/71) AU: LTE-FDD(B1/2/3/4/5/7/8/28); LTE-TDD(B40)
SIM Card	Nano SIM
Wireless Data Rate	Cellular: Uplink: 30–50 Mbps Downlink: 42–150 Mbps Wi-Fi: Up to 120 Mbps (UL/DL)
Work Mode	ActiveGuard Mode (Proactive Protection Mode): The system remains in a dynamic state, intelligently waking up via PIR or AOV sensors to perform real-time target detection and alarm actions. EcoSnap Mode (Energy-saving Timed Capture Mode): Optimized for long-term monitoring with minimal power. It supports timed snapshots and remote wake-up only; motion and noise detection are disabled. Standby Mode:The device remains in deep sleep to maximize battery life, activated only via manual remote wake-up for on-demand inspection.
Device Wake-up Method	MQTT/ TCP/ Call
GPS	Built-in High-accuracy GPS Module
Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
System Compatibility	API, MQTT, HTTP
Working Temperature	Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Working Humidity	0~95% (Non-condensing)
Power Supply	Battery (7.2V, 6400mAh, 46.8Wh) 5V / 2A by Type-C Port (5V / 3A recommended for cold-weather reliability)
Battery Health	The Battery's Capacity will reduce to 70% after 500 Times of Accumulative Charging and Discharging
Power Consumption	(Daily Average) ActiveGuard Mode: 2.70 Wh/day (based on 48 events/day) EcoSnap Mode: 1.29 Wh/day (based on timed snapshots) Standby Mode: 0.94 Wh/day (ultra-low power standby)
Weather Proof	IP67
Weight	Net Weight: 0.9 kg Gross Weight: 1.7 kg
Camera Dimensions	175*111*74 mm (Without Rain Cover)
Warranty	2 Years
