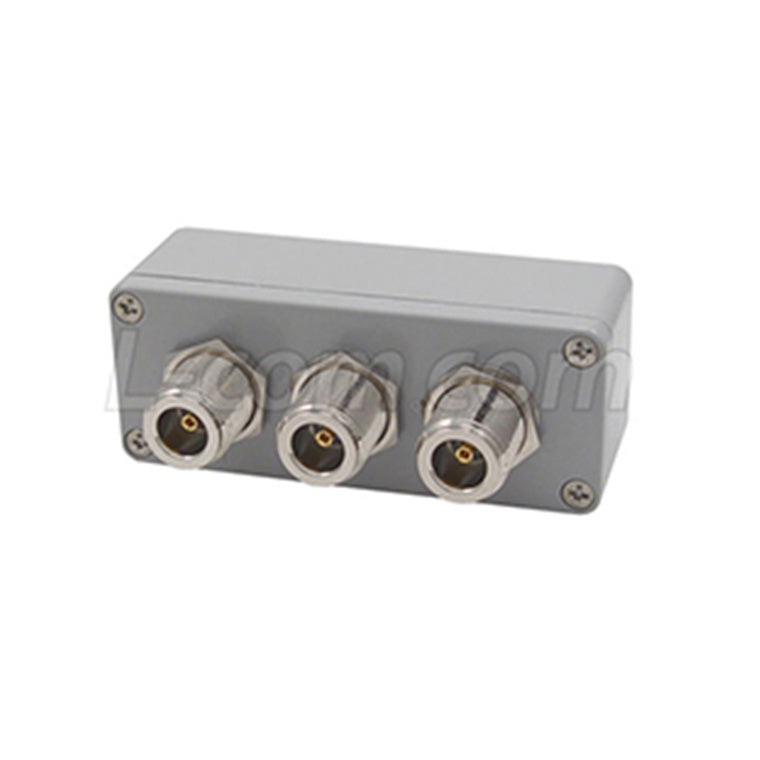

SC5802N - L-com 2-Way 5.8 GHz Signal Splitter N-Female Connectors

SKU: SC5802N ● In Stock

$95.83

Free shipping over $299 Genuine product 7-day returns

SC5802N - L-com 2-Way 5.8 GHz Signal Splitter N-Female Connectors

Features

L-com 2-Way 5.8 GHz Signal Splitter N-Female Connectors SC5802N

The L-com SC5802N s a 2-way 5.3GHz - 5.9GHz signal splitter designed for the 5.3GHz IEEE 802.11a and 5.8GHz ISM/UNII Bands. It can be used to connect two antennas to one wireless bridge or for "stacking" multiple directional antennas for increased gain. The SC5802 can be used for amplified systems since it passes DC power to all ports.

Note: To ensure proper operation, any open splitter ports should be terminated with a high quality 50 Ohm terminator. We recommend the Hyperlink ANM-TERM1 0-6 GHz 50 Ohm N-Male Terminator.

Applications

- Connect more than one antenna to a single radio Wireless Video Systems
- 5.3 GHz IEEE 802.11a and 5.8 GHz ISM/UNII Band

Features

- 5.3 GHz to 5.9 GHz Frequency Range
- Compatible with ISM, UNII and 802.11a Wireless LAN WiFi applications
- High performance glass reinforced hydrocarbon/ceramic laminate
- Industrial grade cast aluminum construction, weatherproof for outdoor use
- DC power will pass to all ports

Specifications

Technical Specifications

Manufacturer's Product Code	SC5802N
Ports	1 Input, 2 Output
Connectors	N-Female
Dimensions(L x D x H)	3.5x1.9x1.3 in.(89x48x33mm)
Weight	0.23kg
Frequency	5300-5900MHz
Insertion Loss (excluding power division)	<0.5 dB
Impedence	50 Ohms
VSWR	<2.0:1 Typical
Power Rating	25 Watts
Output Port Isolation	15 dB Typical
