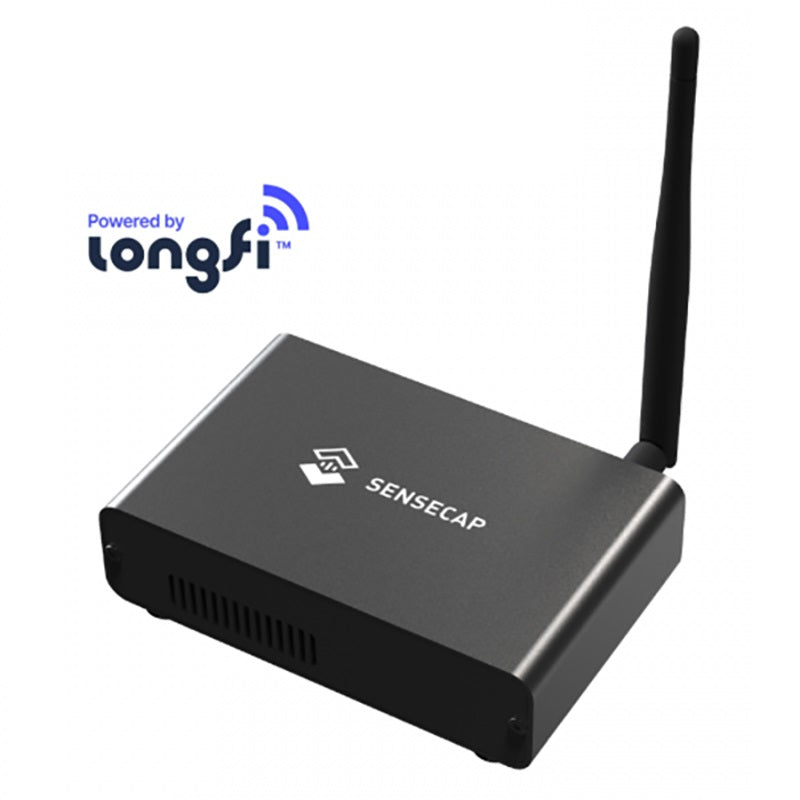

Seeed Technology 110991640 - Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway
Seeed Technology

Seeed Technology 110991640 - Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway

SKU: 110991640 ● In Stock
$33.27
Free shipping over $299 Genuine product 7-day returns

110991640

Seeed Technology 110991640 - Seeed SenseCAP M1 Helium LoRaWAN Indoor Gateway

Description

The Seeed SenseCAP M1 is a high-performing, ready-to-use LoRaWAN indoor IoT gateway compatible with Helium LongFi Network. The Seeed SenseCAP M1 can connect to The People’s Network with a few simple steps and helps you build LoRa applications with low costs. The SenseCAP M1 provides miles of wireless network coverage and data transmission capacity for LoRa/LoRaWAN devices. It helps you join and contribute to the infrastructure of The People’s Network while enjoying the benefits from the Helium community.

As a LoRaWAN gateway with powerful and stable performance, SenseCAP M1 is based on Raspberry Pi 4 and embedded with a WM1302/WM1303 (Semtech SX1302/SX1303) LoRa concentrator, featuring miles of wide range of coverage and low-power consumption - the consumption of an ordinary light bulb.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • Powered by Mature Hardware Solutions
  • Secure and Reliable. Built-in ECC608 crypto chip, high-security authentication, and reliable connectivity.
  • Automatic Online Upgrades. Automatic OTA upgrades
  • Built-in remote diagnostics mechanisms
  • 64GB Storage
  • Aluminum enclosure with a heatsink and cooling fan inside
  • FCC and CE Certificated. Available for personal and commercial use.

Specifications

Details
Product Model XNM1AS923 / 110991640
Processor Raspberry Pi 4 (Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz)
Storage 64GB MicroSD Card
Frequency AS923 Version: 902MHz ~ 928MHz
Sensitivity -125dBm @125KHz/SF7, -139dBm @125KHz/SF12
TX Power Up to 26 dBm
Antenna Gain US915 / AS923: 2.6 dBi
LoRaWAN Connector RP-SMA Female
Antenna Impedance 50 Ohm
Wi-Fi 2.4 GHz and 5.0 GHz IEEE 802.11ac wireless (Internal Antenna)
Bluetooth Bluetooth 5.0, BLE
LoRaWAN Supports Class A, C
Input Voltage DC 5V - 3A
Interfaces USB Type-C (Power Supply) x 1, Ethernet RJ45 x 1, RP-SMA Female Antenna Connector* 1
Operating Temperature 0°C to 50°C
Relative Humidity 0% - 90% (non-condensing)
IP Rating IP20
Certification FCC / CE / RCM
