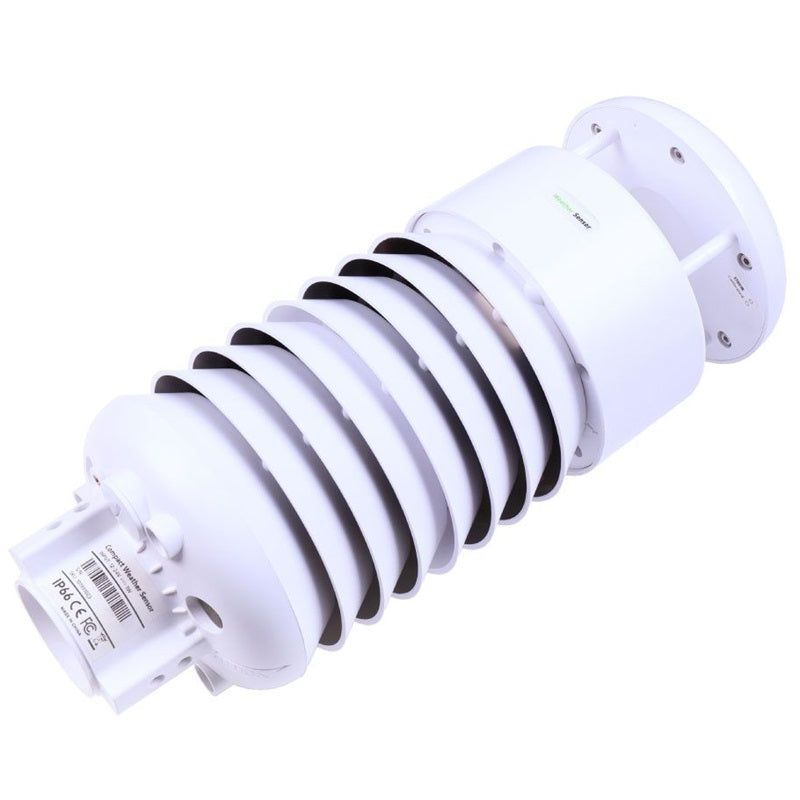

Seeed Technology S800 - Seeed SenseCAP S800 8-in-1 Compact Weather Sensor
Seeed Technology

Seeed Technology S800 - Seeed SenseCAP S800 8-in-1 Compact Weather Sensor

SKU: S800 ● In Stock
$45.00
Free shipping over $299 Genuine product 7-day returns

S800

Seeed Technology S800 - Seeed SenseCAP S800 8-in-1 Compact Weather Sensor

Description

Seeed SenseCAP S800 8-in-1 Compact IoT Weather Station.

SenseCAP S800 8-in-1 Compact Weather Sensor measures air temperature, relative humidity, barometric pressure, wind speed, wind direction (ultrasonic), PM2.5, PM10, and noise. It is ideal for application in a rough environment like the outdoors, agriculture, or smart cities.

This SenseCAP ONE S800 8-in-1 Compact Weather Sensor is IP66 certified, and it features strong robustness to withstand even the toughest outdoor environment. The Sensors to measure wind speed and wind direction use ultrasound instead of a traditional mechanical 3-cup or vane anemometer. The advantage of using ultrasonic sensors is that reducing the movable parts can make the sensor less likely to break and thereby is easier to be maintained without any sacrifices in precision or manpower.

Need help selecting the right IoT solution?

Go Wireless NZ now offers a full consultation service through its subsidiary company Scopious IoT Ltd to help you to start building your IoT network today. We now offer a full service, including everything from the LoRaWAN Network Server, automated bulk provisioning of gateways and devices, simple field force onboarding tools, vendor relationships for IoT hardware design services, Integrations and API’s for third party connectivity.

Consult with Scopious IoT today!
Features
  • 8 parameters measurement : Measures air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise in 1 single sensor
  • Industrial-level design : -40°C to +85°C operating temperature, IP66 rated: waterproof, and dustproof, suitable for outdoor scenarios
  • Output interface: RS485 (MODBUS-RTU) / SDI-12
  • Thermostatically-controlled heating system : Independent heating power supply for use in extremely cold environments
  • Powerful Components Included : A 3m cable for the pole mount; radiation shields are equipped to ensure accurate ambient measurement; ultrasonic wind speed & direction sensors without moving parts

Specifications

Details
Product Model S800 (101991023)
Parameters Measured air temperature, relative humidity, barometric pressure, wind speed, wind direction, PM2.5, PM10 and noise
Protocol RS485 (MODBUS-RTU) / SDI-12
Power Supply 12V~24V, 24V(Heating power supply)
Cable Length 3m
Air Temperature Range: - 40 °C ~ + 85 °C; Accuracy: ± 0.1℃; Resolution: 0.01 ℃
Air Humidity Range: 0 ~ 100% RH; Accuracy: ± 1.5% RH; Resolution: 0.01% RH
Barometric Pressure Range: 300 ~ 1250 hPa; Accuracy: ± 50 Pa; Resolution: 10 Pa
Wind Speed (Ultrasonic) Range: 0~60 m/s standard range, 0~75m/s extended range, Up to 80m/s withstand range; Accuracy: ±0.3m/s(≤10m/s), ±3% (10m/s ~ 50m/s), ±5% (>50m/s), Resolution: 0.1 m/s
Wind Direction (Ultrasonic) Range: 0 ~ 360°, Accuracy: ± 3.0°, Resolution: 0.1°
PM2.5 Range: 0~1000µg/m³; Accuracy: ±10% (100~1000µg/m³), ±10µg/m³ (0~100µg/m³); Resolution: 1µg/m³
PM10 Range: 0~1000µg/m³; Accuracy: ±15% (100~1000µg/m³), ±15µg/m³ (0~100µg/m³); Resolution: 1µg/m³
Noise Range: 35~100dB; Accuracy: ±1.5dB; Resolution: 0.1dB
Operating Temperature & Humidity -40 °C ~ + 85 °C, 0 ~ 100%RH
IP Rating IP66
Device Weight 2kg
