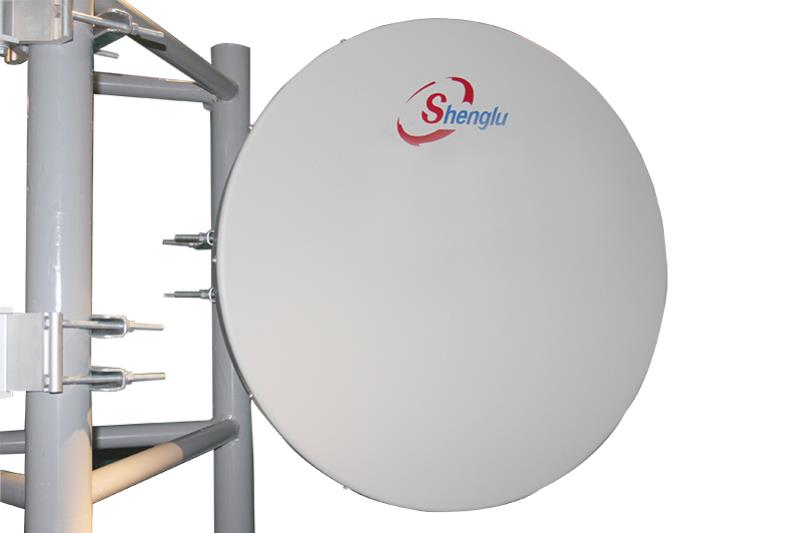

SLG0952SS27N - Shenglu 0.9m 5.25-5.85GHz Ultra High Performance Low Profile Dual Polarised Antenna
Shenglu

SLG0952SS27N - Shenglu 0.9m 5.25-5.85GHz Ultra High Performance Low Profile Dual Polarised Antenna

SKU: SLG0952SS27N ● In Stock
$1,128.00
Free shipping over $299 Genuine product 7-day returns

SLG0952SS27N

SLG0952SS27N - Shenglu 0.9m 5.25-5.85GHz Ultra High Performance Low Profile Dual Polarised Antenna

Description

Shenglu 0.9m Ultra High Performance Low Profile Dual Polarised 5.25-5.85GHz Antenna suitable for high end Point to Point backhaul applications.

Due to the size of these items they are excluded from our free freight option. Freight will be added to all invoices once confirmed and amount will depend on your location.

Specifications

Details
Manufacturer's Product Code SLG0952SS27N (SLA0905D3S37N20)
Frequency Range 5.25 - 5.85GHz
Gain, Top 31.4 dBi
Gain, Mid 30.9 dBi
Gain, Low 30.5 dBi
Front-to-Back Ratio 52 dB
Cross Polarization Discrimination (XPD) 30 dB
Beamwidth 4.1 °
Isolation 35 dB
VSWR 1.5
Return Loss 14 dB
Regulatory Compliance ETSI EN 302 217 Range 1 Class 2
Antenna Type Ultra High Performance Low Profile Antenna, Dual-Polarized Antenna
Diameter, nominal 0.9m / 3ft
Polarization Dual
Reflector Construction One-piece reflector
Antenna connector N-female
Antenna Colour RAL7035
Radome Colour RAL7047
Radome Material ABS
Wind Velocity Operational 162km/h
Wind Velocity Survival Rating 250km/h
Fine Azimuth Adjustment Coarse 360° Fine ±15°
Fine Elevation Adjustment Fine ±20°
Mounting Pipe Diameter 114 mm
Ice-load 25.4 mm
Operational Temperature -45 to +75 ℃
Net Weight 24.9kg
