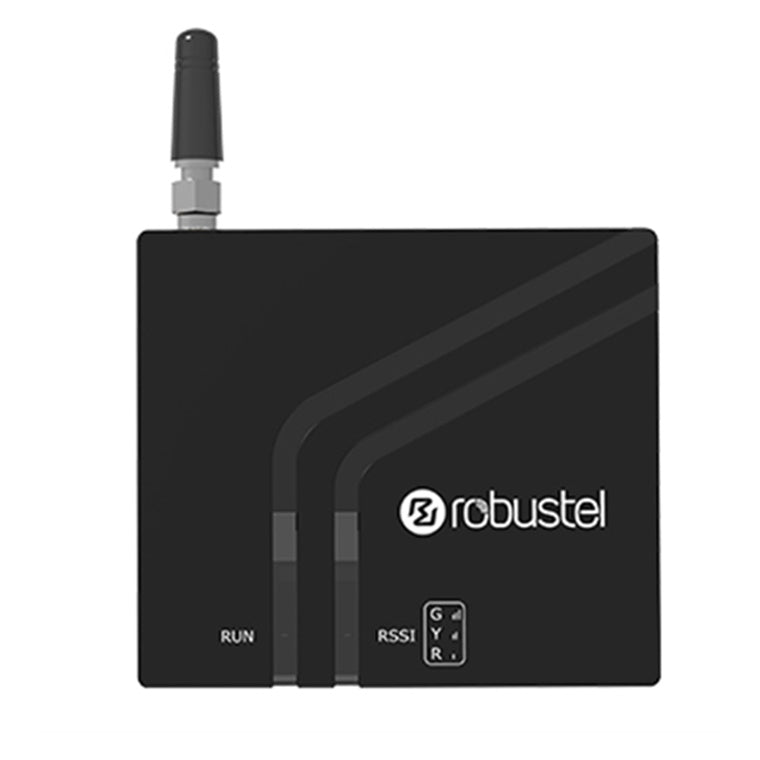

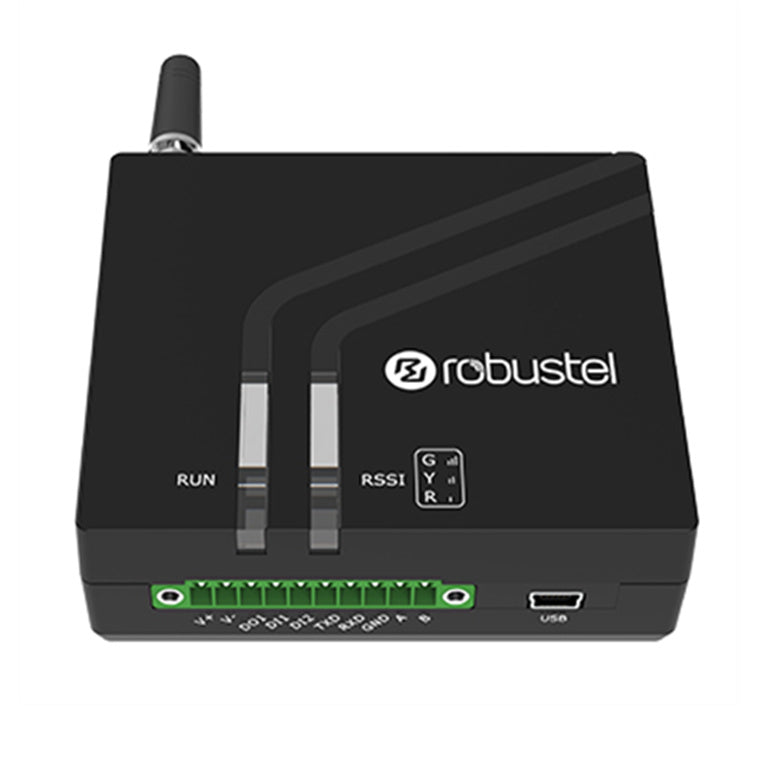

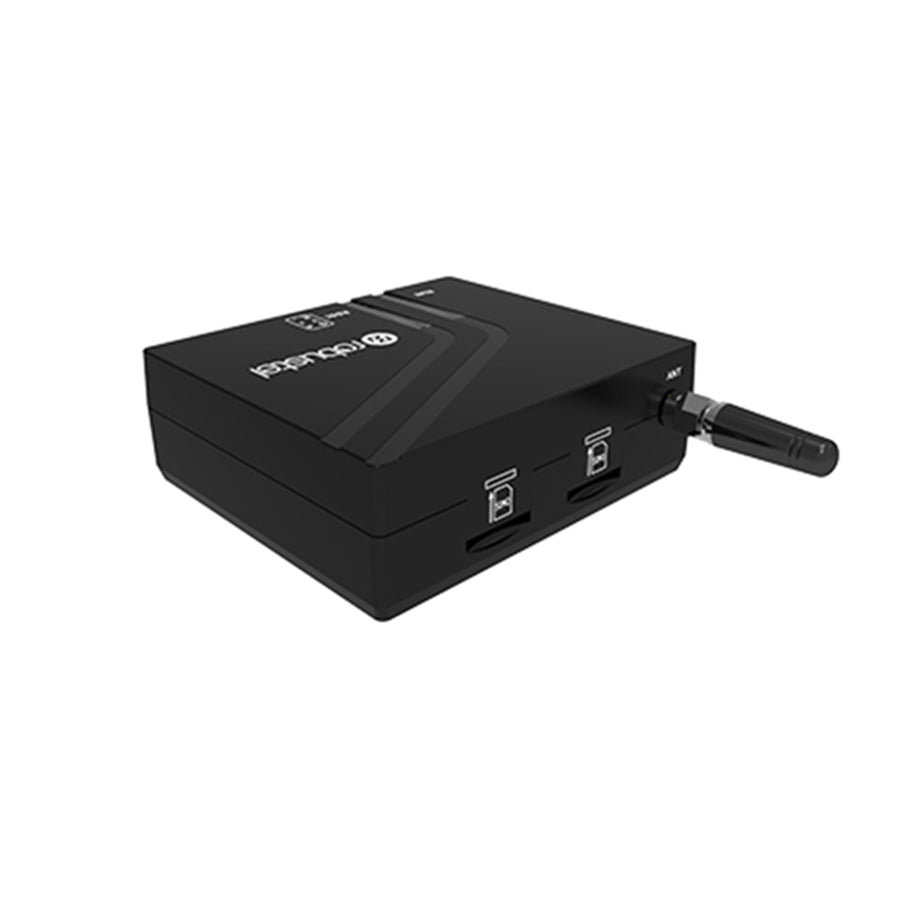

Robustel B033701 - Smart Industrial IoT Gateway Dual SIM RS232 RS485 DI/DO (M1200-4L)

The M1200 enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB. This dual-SIM gateway provides users with stable network connectivity and data transmission.

- 2G/3G/4G Cellular
- 2 SIM Slots
- 1 x RS232 and 1 x RS485 Serial
- 1 x mini USB, for configuration and power supply
- 2 LED indicators for RSSI
- 9 to 36 VDC Power Supply Input Range
- Dimensions : 85 x 75 x 28.5 mm

The Robustel Smart Industrial IoT Gateway M1200 is a compact cellular gateway based on GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE TDD LTE networks. This dual-SIM gateway enables remote data transmission of local serial ports and I/O, and supports such interfaces as RS-232, RS-485 and mini-USB. M1200 provides users with stable network connectivity and data transmission. It is available to meet industrial application demands for its standards-compliant industrial designs. As a universal gateway, it can be applied in many scenarios such as Energy, Transportation and Agriculture, etc

- Auto GSM/GPRS/EDGE/UMTS/WCDMA/HSDPA/HSUPA/HSPA+/FDD LTE/TDD LTE connections (No AT command required)
- Supporting two dial-up policies, Always Online and Connect on Demand
- Dual-SIM backup (push-push or MFF type optional)
- Supporting SMS Direct mode which can transparently convert serial data to SMS or vice versa
- IPsec/OpenVPN/GRE/L2TP/PPTP
- Transparent TCP and UDP protocol connections
- ICMP, DDNS, SNTP and Telnet
- Modbus RTU to TCP
- Auto rebooting via SMS and Timer
- Configuration and firmware upgrading via USB and RobustLink
- Sending SMS if DI is triggered (optional)
- Robust industrial design (9 to 36V DC, -40 to +75 °C extended operating temperature, desktop or wall mounting or DIN rail mounting)
