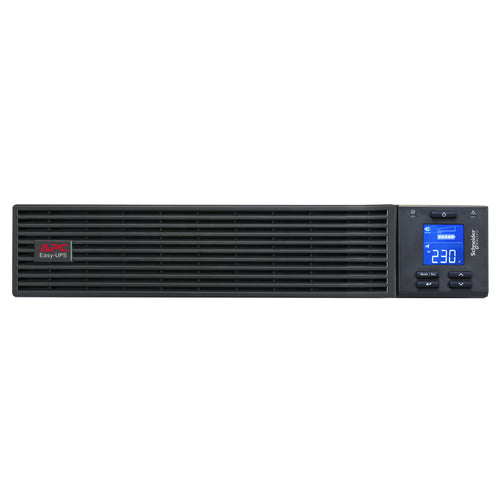

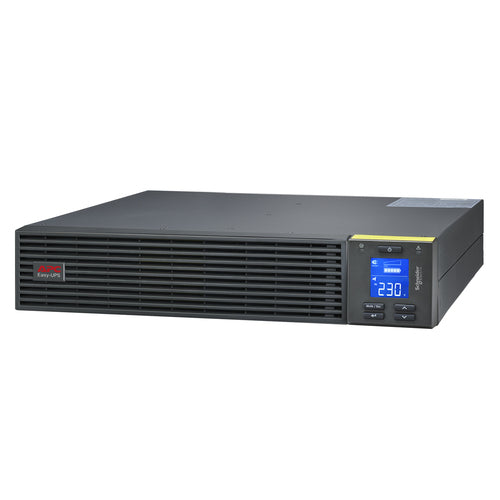

SRV1KRI-E - APC EASY UPS ON-LINE SRV RM 1000VA 900W
SRV1KRI-E - APC EASY UPS ON-LINE SRV RM 1000VA 900W
Overview

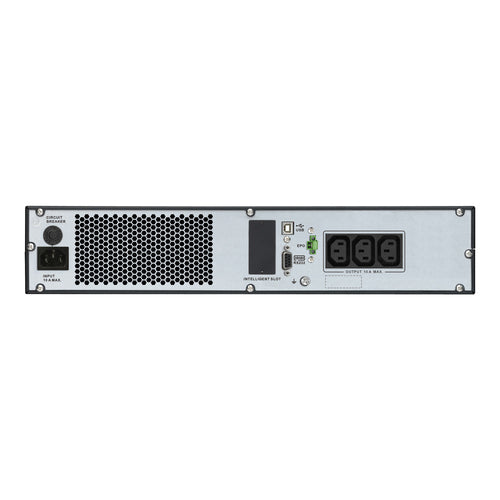

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 1000VA double-conversion on-line 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions." "The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGL9601l) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The SRV UPS is compatible with replacement battery cartridge APCRBCV200." "The UPS is compatible with SRVRK1 rail kit sold separately." "The UPS and the built-in lead-acid battery has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
- 1000VA/900W double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Prolonged battery life with intelligent temperature-compensated charging
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Technical Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 1 |
| Output power | 900 |
| Waveform | Sine |
| Input operation voltage (min) | 110 |
| Input operation voltage (max) | 285 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Output frequency | 50/60 |
| Output voltage regulation | 3 |
| Surge energy rating | 945 |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 |
| Efficiency | 88 |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 3 |
| Noise level | 50 |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Audible alarm modes | Overload alarm,Low battery alarm |
| Power source type | AC |
| Detachable power cord | Y |
| AC outlet types | C13 coupler |
| Power plug | C15 coupler |
| AC outlets quantity | 3 |
| USB port | Y |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Serial interface | Y |
| RS-232 ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 24 |
| Battery life (max) | 3 |
| Battery recharge time | 4 |
| Replacement battery cartridge | APCRBCV200 |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 1.5 |
| Product colour | Black |
| Display type | LCD |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 50 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Sustainable packaging | N |
| Packaging recycled materials | Recycled cardboard |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Y |
| Compliance certificates | RoHS,REACH,WEEE |
| Certification | CE; UKCA; TISI |
| Rack mount kit | Y |
| Cables included | Output power cable,RS-232,USB cable,Input power cable |
| Manual | Y |
| Width | 438 |
| Depth | 312 |
| Height | 86 |
| Weight | 11500 |
| Package width | 551 |
| Package depth | 455 |
| Package height | 218 |
| Package weight | 14000 |
| Customs product code (TARIC) | 8504409590 |
| Country of origin | China |
| Input connection type | IEC 60320 C14 |
| Output connection type | 3 IEC 60320C13 |
| Output voltage | 230 |
| Mounting | front; horizontal |
