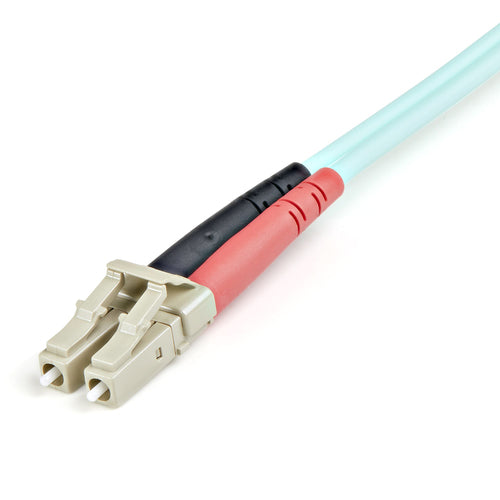

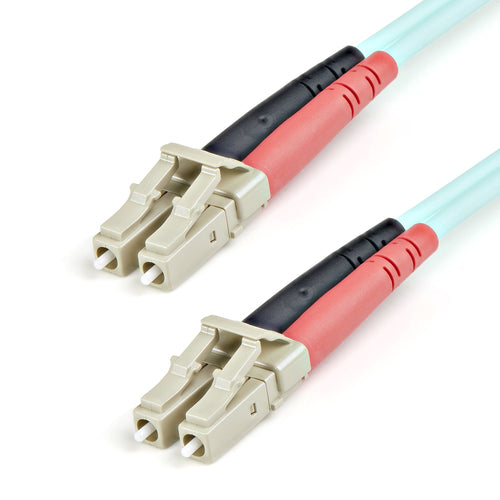

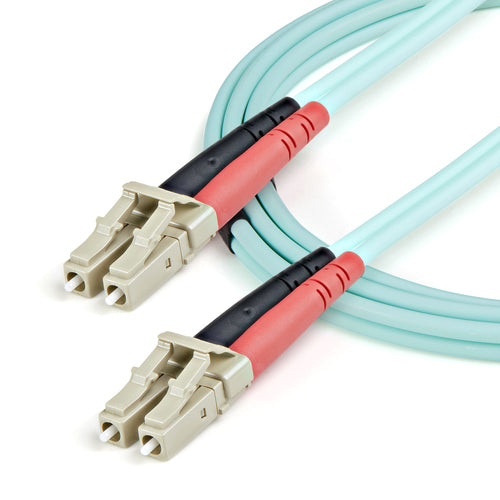

STARTECH.COM 1M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW
STARTECH.COM 1M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW
STARTECH.COM 1M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW
STARTECH.COM 1M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW
STARTECH

STARTECH.COM 1M LC/UPC TO LC/UPC OM3 MULTIMODE FIBER OPTIC CABLE, LTW

SKU: A50FBLCLC1 ● In Stock
$40.00
Free shipping over $299 Genuine product 7-day returns
  • ✅ OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
  • ✅ QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
  • ✅ RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
  • ✅ WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
  • ✅ SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.

This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.

Technical Specifications

Cable length 1
Fibre optic type OM3
Connector 1 LC
Connector 2 LC
Connector 1 gender Male connector
Connector 2 gender Male connector
Product colour Aqua colour
Full duplex Y
Core diameter 50
Cladding diameter 125
Fiber mode structure Multi-mode
Wavelengths supported 850
Data transfer rate 100
Jacket material Low smoke zero halogen (LSZH)
Doesn't contain Halogen
Compliance certificates REACH,RoHS
Certification CE
Operating temperature (T-T) -20 - 60
Storage temperature (T-T) -20 - 60
Cable diameter 3
Weight 15
Package width 197
Package depth 203
Package height 16
Package weight 24
Master (outer) case width 404
Harmonized System (HS) code 85447000
Master (outer) case length 410
Master (outer) case height 440
Products per master (outer) case 320
