SKU: SFP1GBX80UES ● In Stock
$43.00
Free shipping over $299 Genuine product 7-day returns

StarTech.com SFP1GBX80UES - SFP Module - SFP-1G-BX80-U Comp - U/S

Overview

1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 80 km (49.7 mi) | Lifetime Warranty

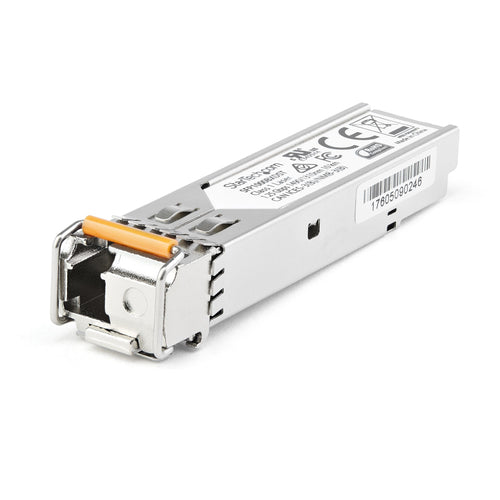

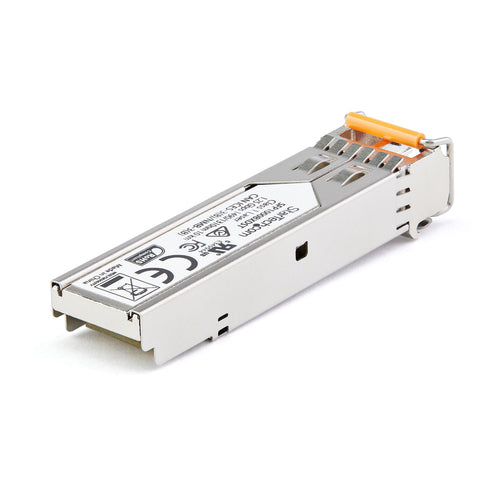

The SFP1GBX80UES is a Dell EMC SFP-1G-BX80-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX80DES. They are designed, programmed and tested to work with 1000BASE-BX80 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 1 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1490nmTX/1550nmRX
• Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
• Type: Single Mode Fiber

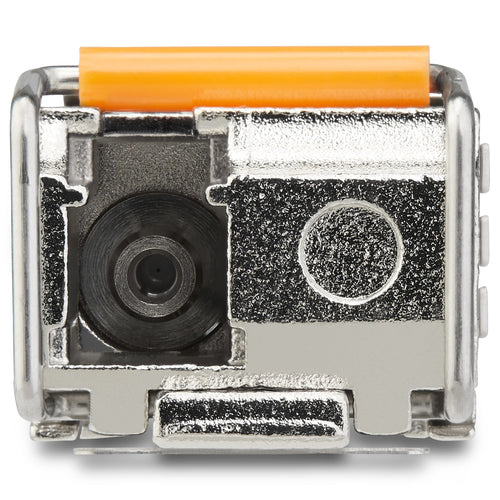

• Connection Type: LC Connector
• Maximum Transfer Distance: 80 km (49.7 mi)
• Power Consumption: Low power consumption
• DDM: Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

  • 100% DELL EMC SFP-1G-BX80-U COMPATIBLE: 1 Gigabit Ethernet BiDi Fiber Single Strand SFP designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver reliable 1GbE connectivity
  • INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 1 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two
  • TECHNICAL SPECS: 1000BASE-BX-U / 1Gbps / 1G Bi-Directional Upstream / Single Mode (SMF) / LC Connector / 1490nmTX/1550nmRX / Digital Diagnostic Monitoring (DDM) / Distances up to 80km (49.7mi)
  • PROGRAMMED & TESTED FOR COMPATIBILITY: Compatible with Dell EMC routers and switches. MSA Compliant with DDM that reports the transceiver's status to most SNMP network management tools
  • THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance

Technical Specifications

SFP transceiver type Fiber optic
Maximum data transfer rate 1000
Interface type SFP
Single-mode fiber (SMF) supported Y
Multi-mode fiber (MMF) supported N
Fiber optic connector LC
Maximum transfer distance 80000
Tx wavelength (max) 1490
Rx wavelength (max) 1550
Duplex system Full
Digital Diagnostics Monitoring (DDM) Y
Product colour Silver
Hot-swap Y
Mean time between failures (MTBF) 3713222
Brand compatibility Dell
Compatible products SFP-1G-BX80-U
Compliance certificates RoHS
Certification CE, FCC, UL, REACH
Width 58.4
Depth 13.9
Height 12.6
Weight 30
Quantity per pack 1
Package width 90
Package depth 115
Package height 31
Package weight 50
Master (outer) case width 90
Master (outer) case length 115
Harmonized System (HS) code 85369010
Master (outer) case height 31
Products per master (outer) case 1
