TASCAM

TASCAMDR05XP - TASCAM DR-05XP PORTABLE DIGITAL RECORDER

SKU: TASCAMDR05XP ● In Stock
$250.00
Free shipping over $299 Genuine product 7-day returns

TASCAMDR05XP - TASCAM DR-05XP PORTABLE DIGITAL RECORDER

Features

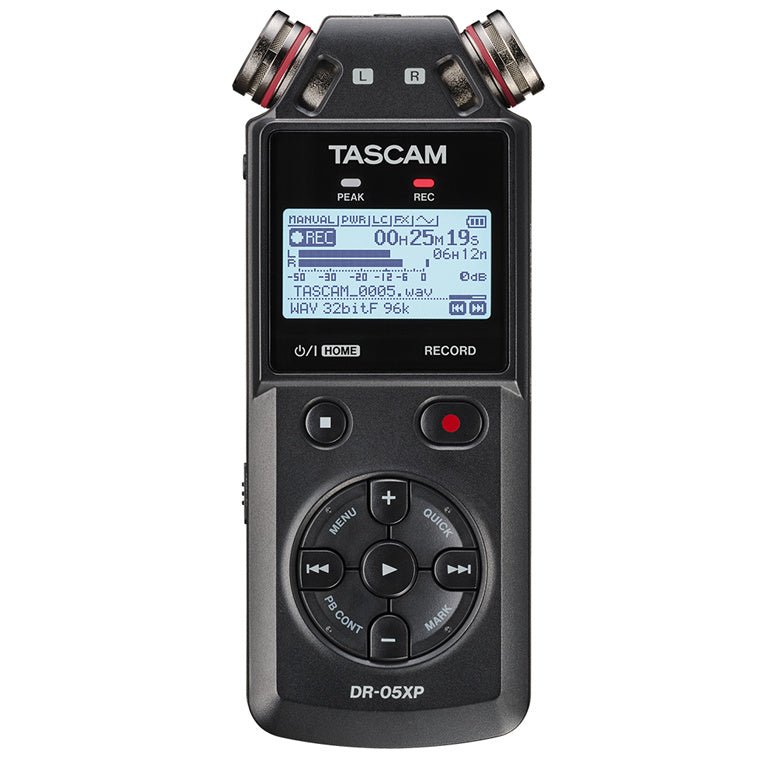

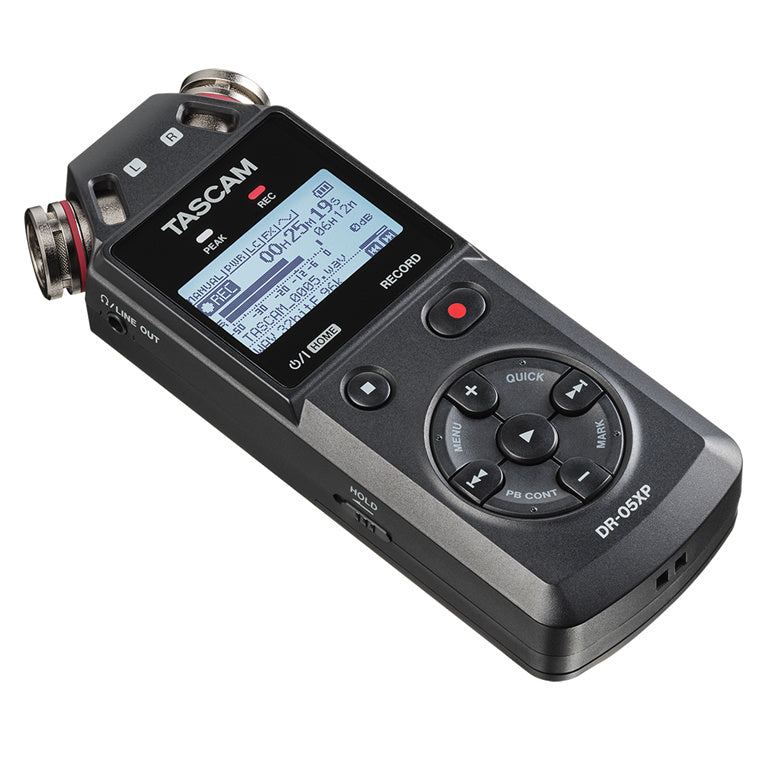

TASCAM DR-05XP 2-Channel 32-Bit Float Portable Handheld Recorder With USB-C Interface

The TASCAM DR-05XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels. With easy one-handed operation, the DR-05XP makes it simple to start recording with minimal setup time.

- 2-channel portable handheld audio recorder with up to 512GB microSDXC card storage
- Flexible recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3
- Omnidirectional condenser microphones handle loud environments and sources (up to 125dB SPL)
- 2-in/2-out USB-C audio interface for recording directly to your computer
- Up to 17.5 hours of operation with 2 x AA alkaline batteries



Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-05XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz and MP3.

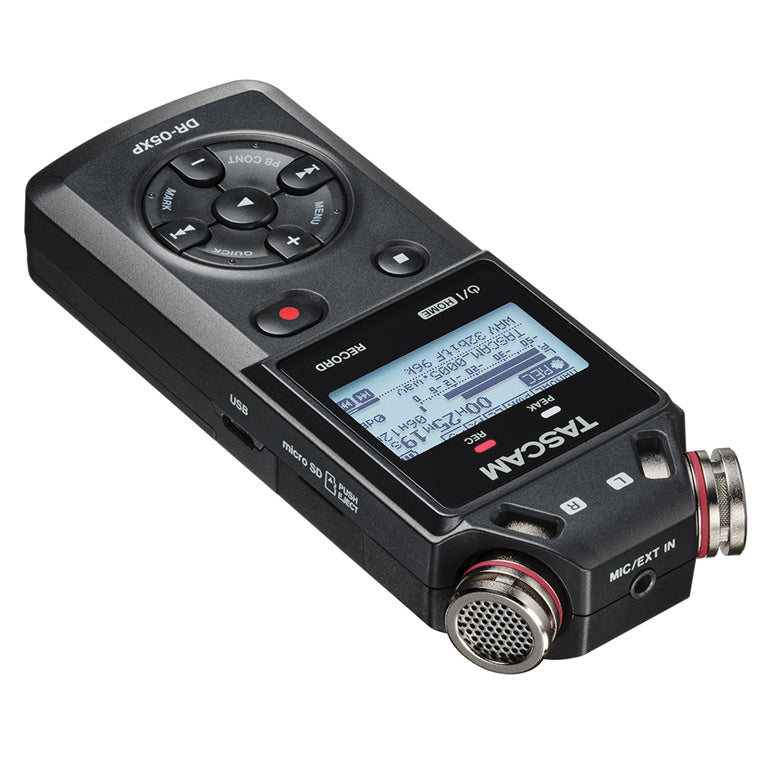

Built-in Condenser Microphones

The DR-05XP features omnidirectional condenser microphones that can withstand high sound pressure levels (up to 125dB SPL), reducing the risk of mic distortion even in loud environments.

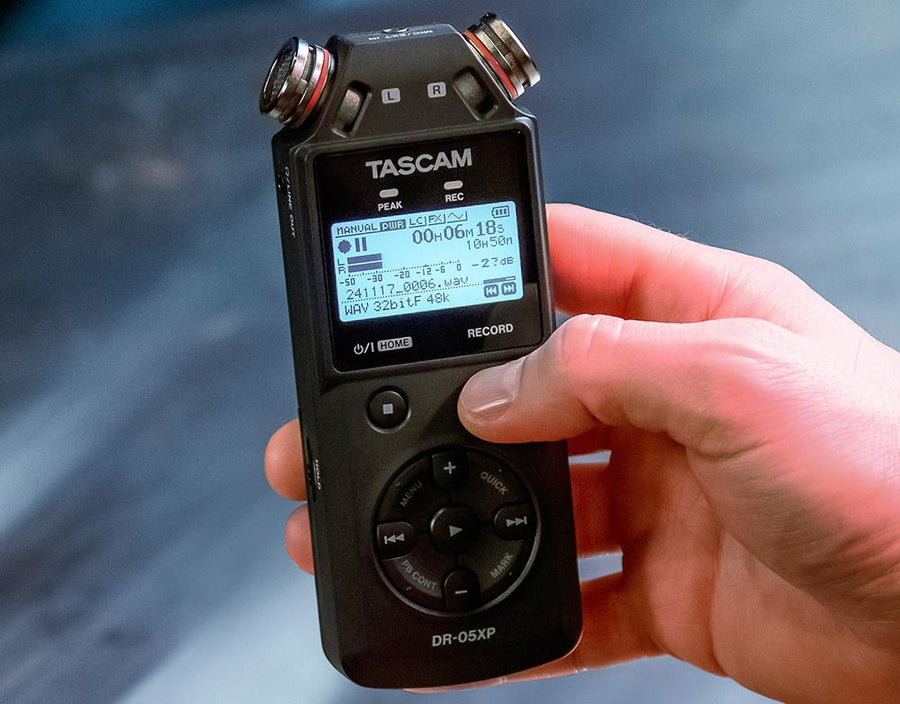

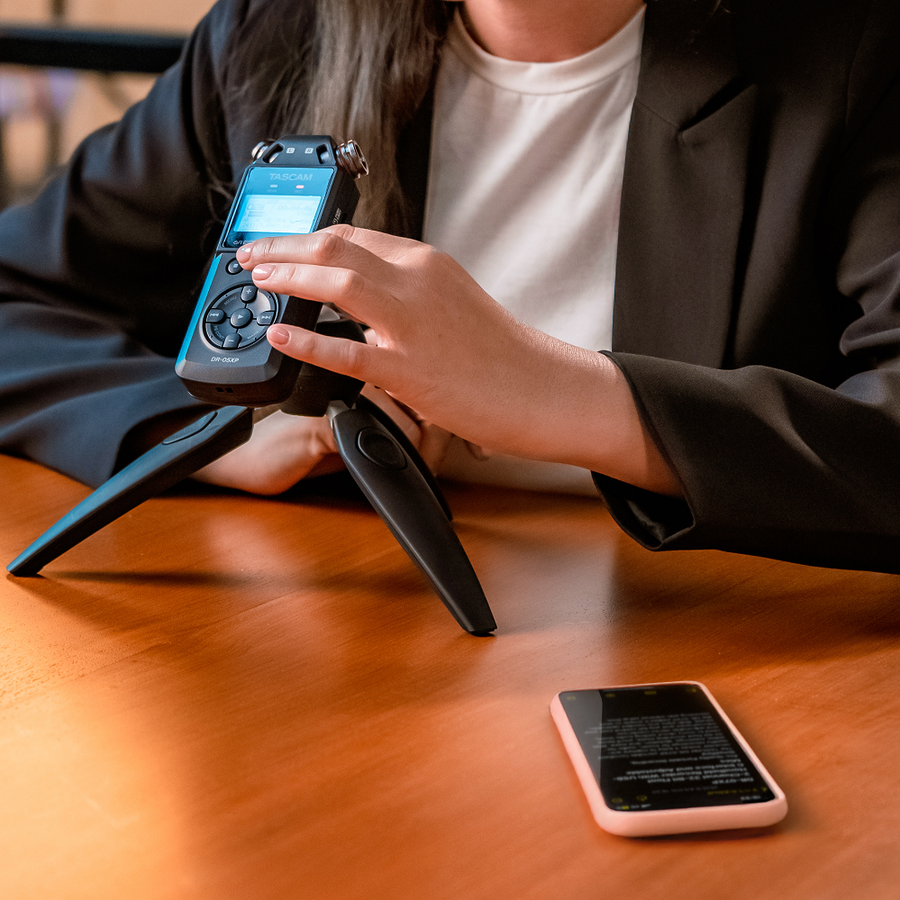

Simplicity in Your Palm

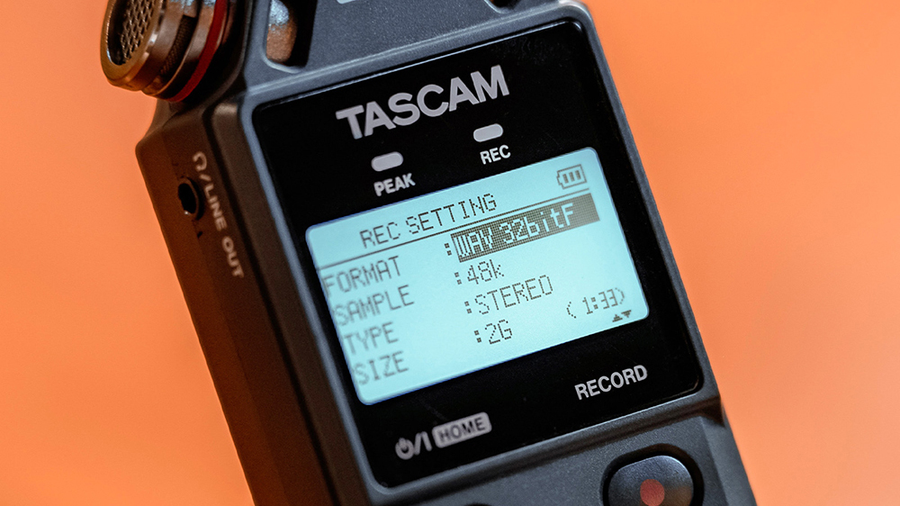

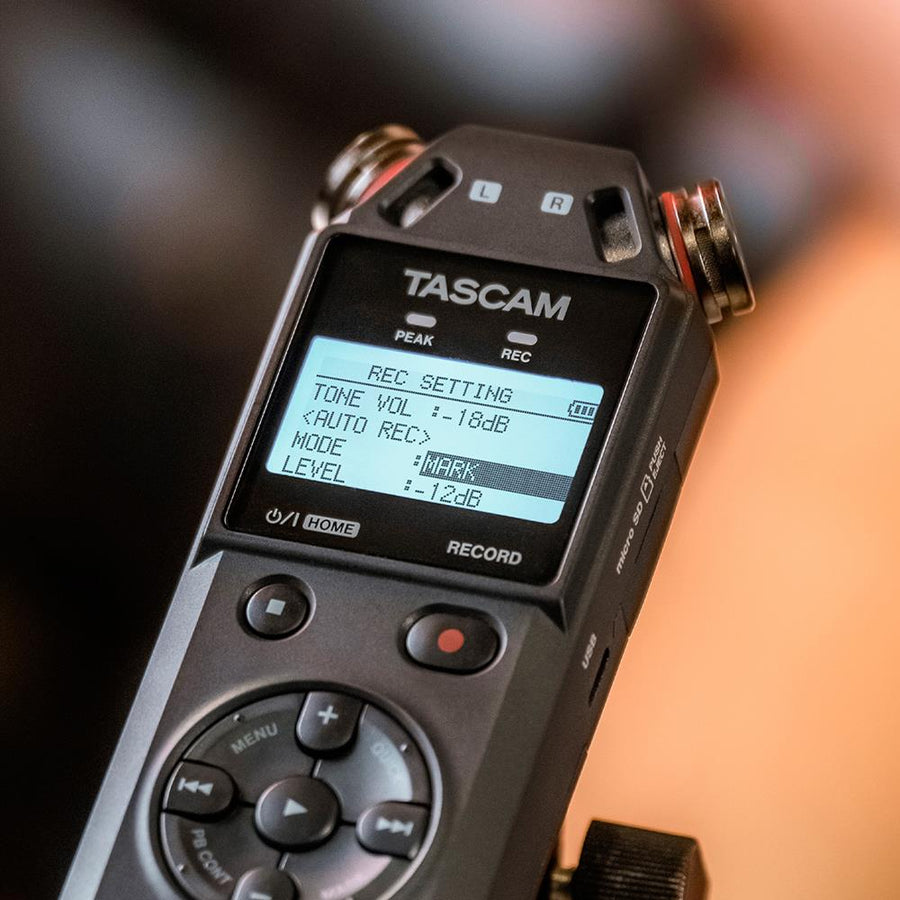

With the DR-05XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.



Your Portable Recording Studio

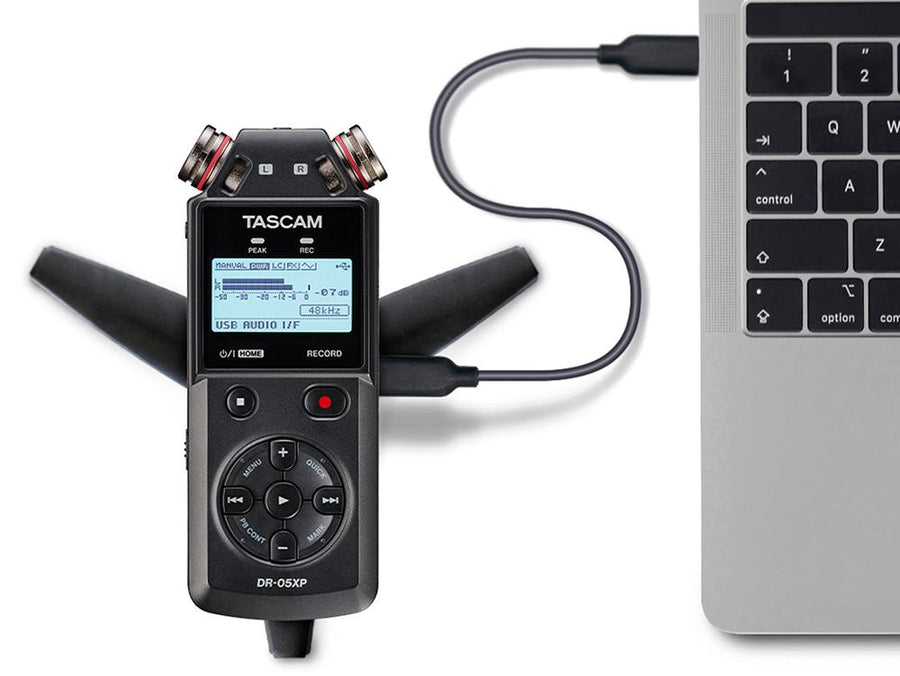

The DR-05XP isn't only a powerful portable recorder - it's also a 2-in/2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.



Ideal for Musicians

The DR-05XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.



On Location

With its compact size, the DR-05XP can travel anywhere for exceptional field recording. Choose from four different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-05XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.



Record Anything, Anywhere

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-05XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

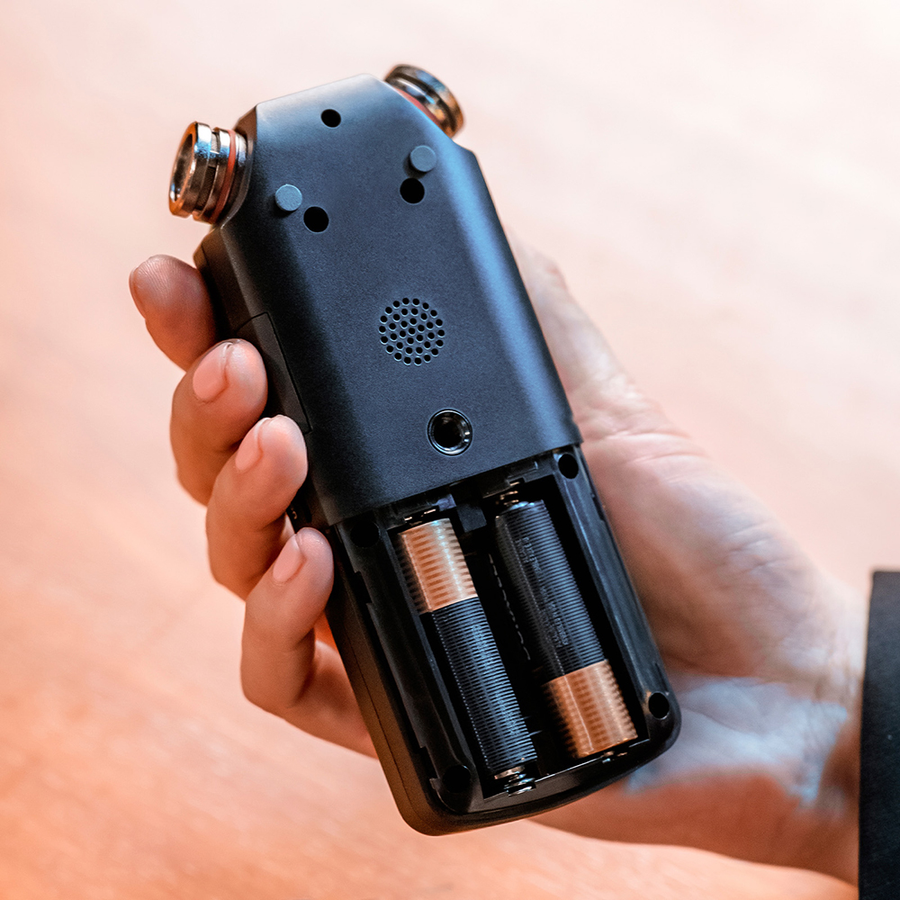

Long Battery Life

With up to 17.5 hours of continual usage from two AA alkaline batteries, users can focus on the audio rather than how much power is left.

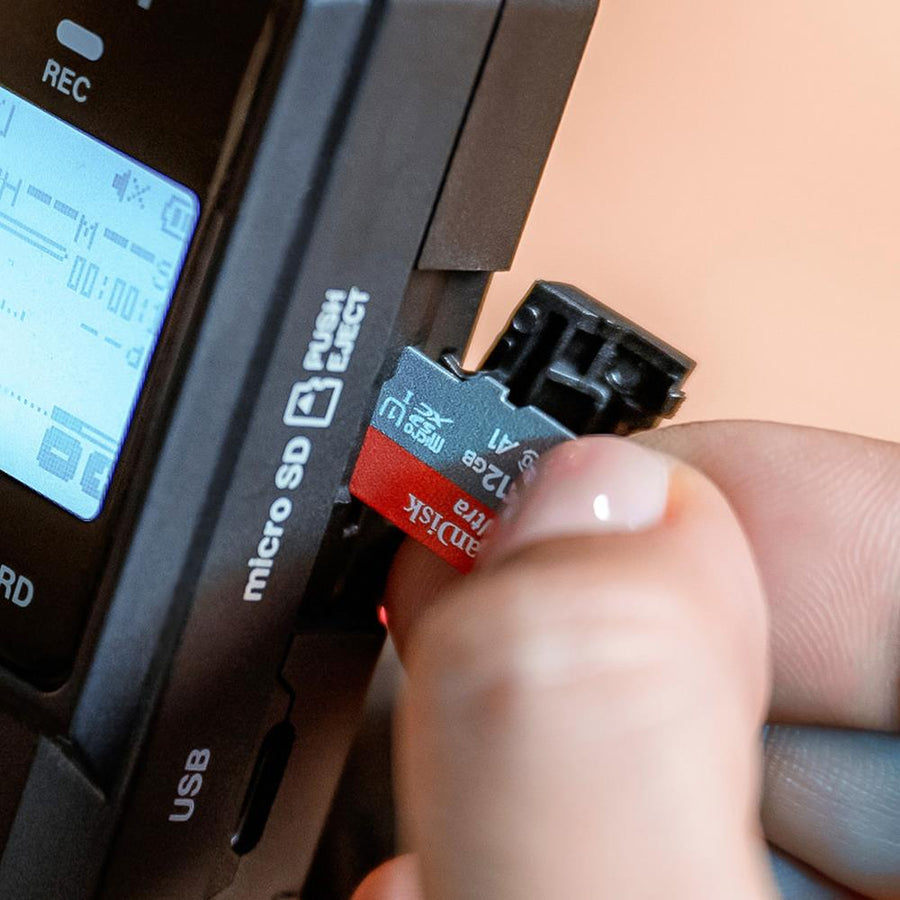

Large Recording Capacity

Supports up to 512GB microSDXC cards gives you ample recording capacity for on-the-go use.



Sound-Sensitive Auto Recording

Automatically start recording when sound is detected with Auto Recording mode.

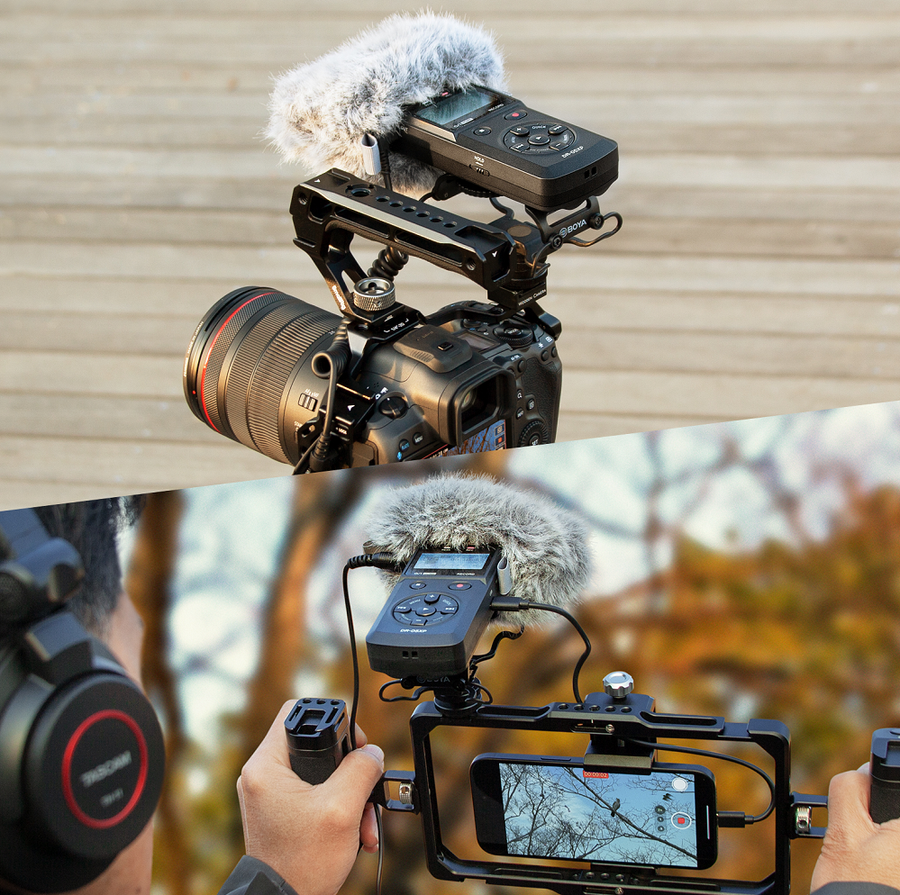

Ready for DSLR and iPhone

Whether you're always on-the-go or find yourself creating impromptu content, the DR-05XP can easily fit into your iPhone video rig or your DSLR camera rig. Auto Tone output for DSLR optimizes DR-05XP for use in videography and content creation.



RF Noise Shielding

With superior shielding of sensitive components, DR-05XP is able to effectively cut interference from Radio Frequency (RF), Wi-Fi, and other digital signals - ensuring a clean, noise-free signal.

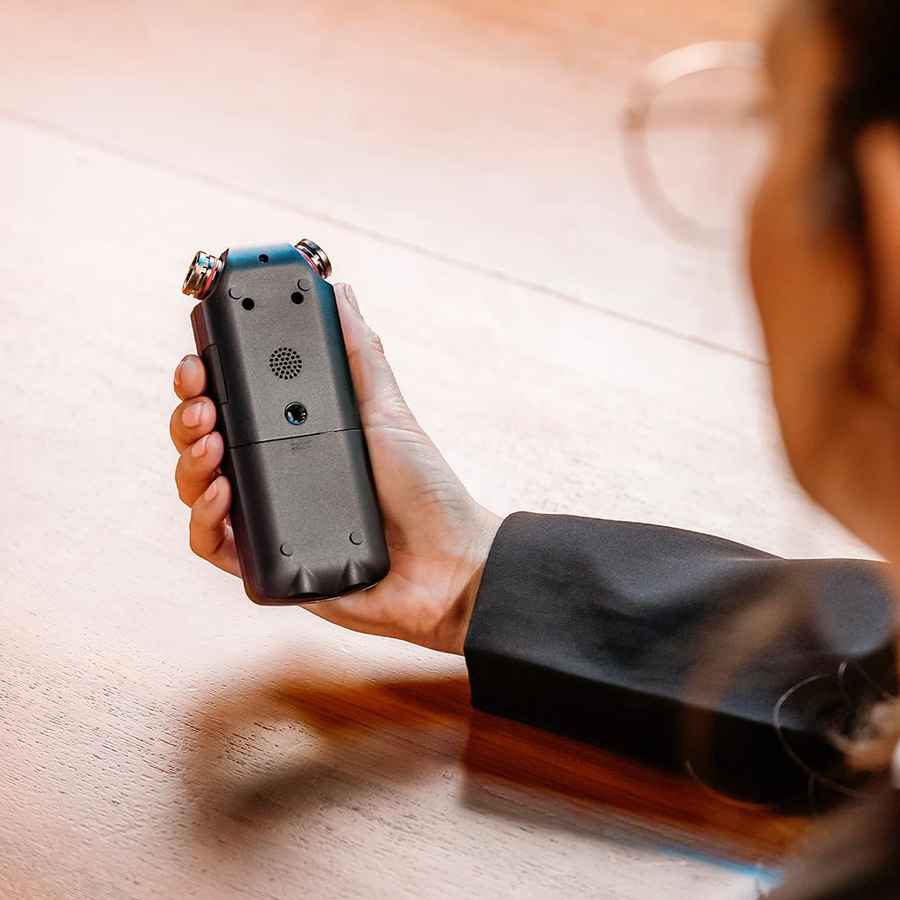

Built-in Reference Speaker

A built-in monaural speaker allows you to check your recordings without putting on headphones.

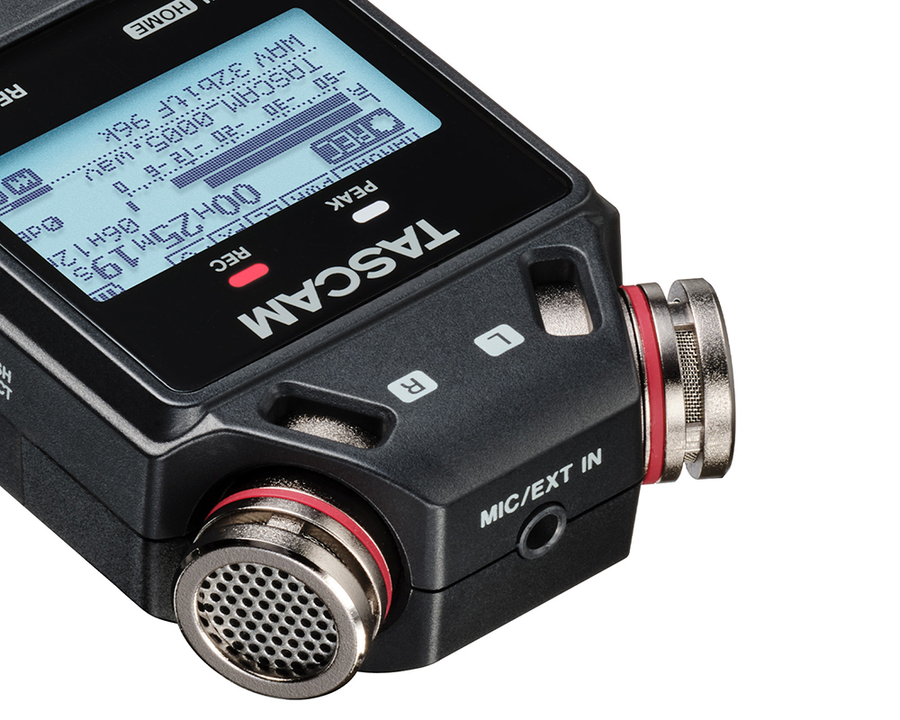

External Inputs

Equipped with a stereo mini jack for external stereo microphones, as well as stereo line-level input.

Specifications

Technical Specifications

Recording media/file systems microSD cards / microSDHC cards / microSDXC cards (up to 512 GB)
Sampling frequency 44.1 kHz / 48 kHz / 96 kHz
Quantization bit depth 16-bit / 24-bit / 32-bit float
Sampling frequency 44.1 / 48 kHz
Quantization bit depth 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Maximum number of input channels 2
Maximum number of recordable tracks 2
Connector 3.5mm (1/8") stereo mini jack
Input Impedance 18 kohm or more (when plug-in power is turned off)2 kohm or more (when plug-in power is turned on)
Nominal input level - 20 dBV
Maximum input level -4 dBV
Connector 3.5mm (1/8") stereo mini jack
Output impedance 12 ohm
Nominal output level - 14 dBV (10kohm loaded)
Maximum output level +2 dBV (10kohm loaded)
Maximum output 20 mW + 20 mW (32 ohm load)
Working impedance 16 - 250ohm
Output 0.3W (monaural)
Connector USB Type-C
Format USB 2.0 High Speed Mass Storage ClassUSB 1.1 Full Speed Audio Class
Sampling rate 44.1 / 48 kHz
Quantization bit depth 24-bit
Number of inputs 2 channels (output from this unit)
Number of outputs 2 channels (input to this unit)
Power 2AA batteries (alkaline or NiMH)USB bus power (5V/0.5A) from a computer, etc.TASCAM PS-P520U AC adapter (sold separately)
Power consumption 1.7 W (maximum)
Weight 174 g / 0.384 lb (including batteries)126 g / 0.278 lb (not including batteries)
Operating temperature range 0 - 40 °C / 32 - 104 °F
Dimensions 60.5 x 142.3 x 27 mm2.39 x 5.61 x1.07 inch(W x H x D, including protrusions)
Included items DR-05XP x1Safety guide (including warranty) x1TASCAM ID registration guide x1
Note 0 dBV=1 Vrms, 0 dBu=0.775 Vrms
