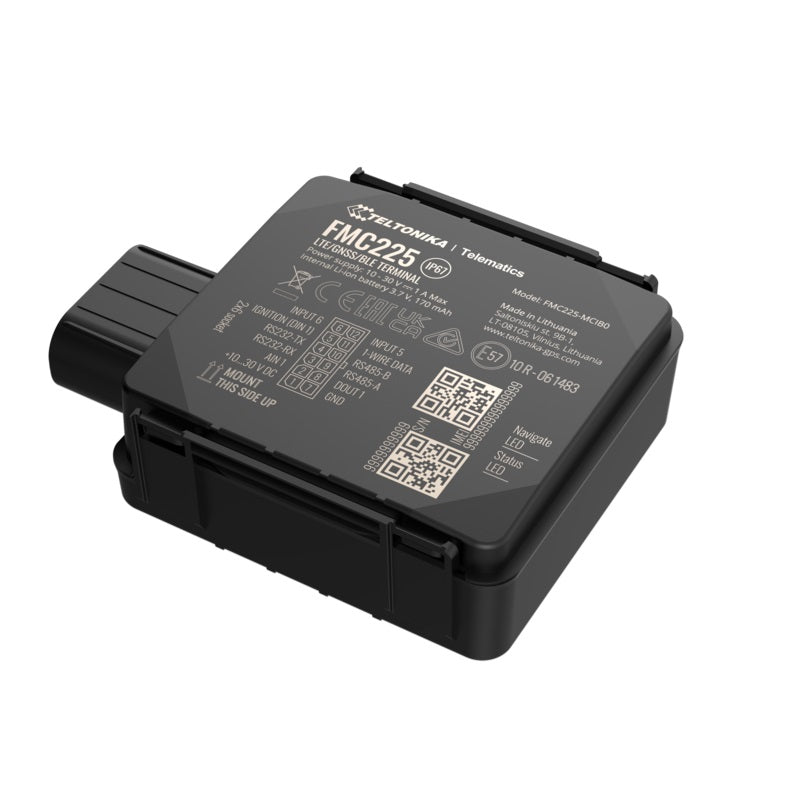

Teltonika Telematics FMC225 - Teltonika FMC225 IP67 Waterproof 4G/LTE Cat 1 GPS Tracker with RS485, RS232 Interfaces and Dual SIM
Teltonika Telematics

Teltonika Telematics FMC225 - Teltonika FMC225 IP67 Waterproof 4G/LTE Cat 1 GPS Tracker with RS485, RS232 Interfaces and Dual SIM

SKU: FMC225 ● In Stock
$185.21
Free shipping over $299 Genuine product 7-day returns

FMC225

Teltonika Telematics FMC225 - Teltonika FMC225 IP67 Waterproof 4G/LTE Cat 1 GPS Tracker with RS485, RS232 Interfaces and Dual SIM

Description

Teltonika FMC225 Waterproof 4G LTE Cat 1 GPS Tracker with RS485, RS232 Interfaces. The Teltonika FMC225 is WATER and DUST resistant real-time tracking terminal with GNSS and LTE/GSM connectivity and backup battery. FMC225 features RS485/RS232 data interface, which gives ability to connect various third-party external devices. It is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. Because of IP67 casing, device is totally protected from dust and remains safe during the short periods of immersion in water up to 1m depth. As a result, FMC225 can be used in agriculture, construction and mining or any other fleet where harsh tracking conditions exists.

FMC225 developed on the existing Teltonika FMC platform, therefore it keeps all of the functionalities from FMC125 and builds on top of them with its industry-leading connectivity coverage.

For starters, FMC225 features negative input which allows you to save precious integration time while connecting accessories like vehicle doors sensor, alarm buttons, seatbelt detection, and other similar sensors or accessories.

Additionally, the device has an integrated possibility to enable impulse input for precise fuel flow meter data reading. Impulse based fuel usage monitoring is much more accurate than a different type of fuel metering sensors and it makes the FMC225 a perfect solution for high fuel usage machines like cranes, construction vehicles, mining machines, agriculture equipment.

Features a user Selectable RS485 or RS232 depending on user requirements.

Features
  • Reliable 4G (LTE Cat 1) connection with fallback to 3G (UMTS), 2G (GSM) networks
  • Backup Battery Allows device to work without external power source
  • Selectable RS485 or RS232
  • CAN data reading from vehicles and specialized transport
  • Impulse inputs for fuel flow meters data reading
  • Dual SIM considerably reduces roaming costs
  • Robust IP67-rated casing provides trusted protection

Specifications

Details
Product code FMC225 (FMC225F32X01)
Model name FMC225-MCIB0
Module Name FMC225-MCIB0: MeiG SLM320-LA with Teltonika TM2500
Technology LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH® LE
GNSS GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
Receiver 33 tracking channels, 99 acquisition channels
Tracking sensitivity -165 dBM
Position Accuracy < 2.5 m CEP
Velocity Accuracy < 0.1 m/s (within +/- 15% error)
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
4G LTE bands FMC225-MCIB0: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28, LTE-TDD:B40
Data transfer LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), LTE TDD: Max 8Mbps (DL)/Max 2Mbps (UL), GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support SMS (text/data)
Input voltage range 10 - 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Power consumption At 12V < 4 mA (Ultra Deep Sleep), At 12V < 6 mA (Deep Sleep), At 12V < 12 mA (Online Deep Sleep), At 12V < 19 mA (GPS Sleep), At 12V < 36 mA (nominal with no load), At 12V < 2A Max. (with full Load / Peak)
Bluetooth 4.0 + LE
Supported peripherals Temperature and Humidity sensor, OBDII dongle, Inateck Barcode Scanner, Universal Bluetooth® LE sensors support support
Dimensions 71 x 67 x 26 mm (L x W x H), 85 x 67 x 26 mm (L x W x H)(length with connector socket)
Weight 79 g
Operating temperature (without battery) -20 °C to +85 °C
Operating temperature (with battery) 0 °C to +40 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP67
Battery charge temperature 0 °C to +45 °C
Digital Inputs 2
Digital Outputs 1
Analog Inputs 1
CAN Adapter Inputs 1
1-Wire 1
RS232 1
RS485 1
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 2 status LED lights
SIM Dual SIM
Memory 128MB internal flash memory
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip, Jamming
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth® wireless technology)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Fuel monitoring LLS (Analog), Digital LLS (RS232, RS485), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)
RS232 Modes Log Mode, NMEA, LLS, LCD, RFID HID/MF7, Garmin FMI, TCP ASCII/Binary, Satellite Backup (Iridium Edge)
RS485 Modes Log Mode, NMEA, LLS, TCP ASCII/Binary
Regulatory CE / RED, UKCA, E-Mark, RoHS, REACH, CITC, RCM, EAC, Anatel, ICASA
