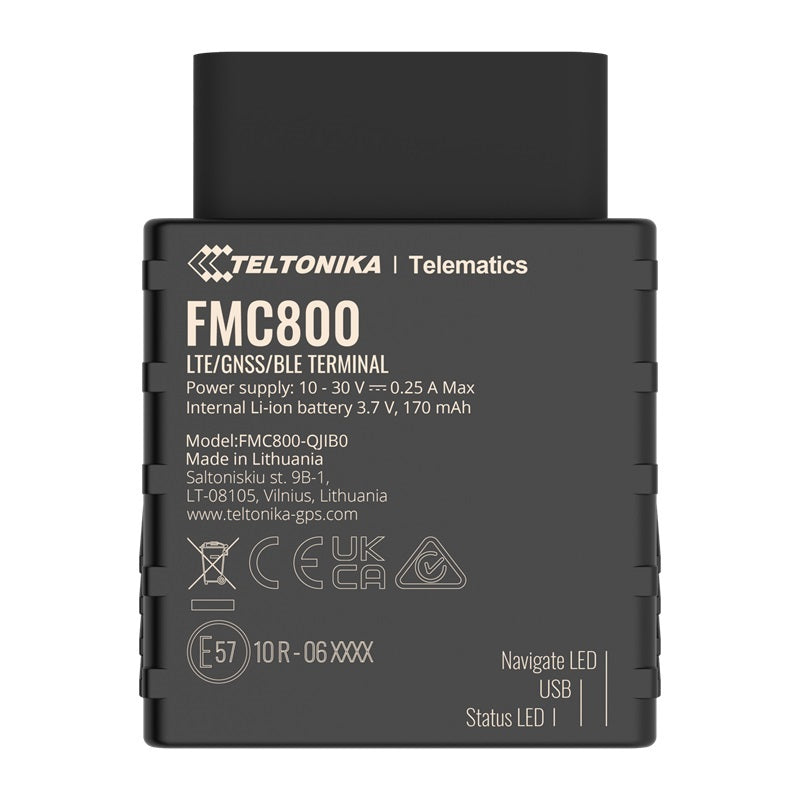

Teltonika Telematics FMC800 - Teltonika FMC800 OBDII Plug and Play 4G LTE CAT1 GNSS Tracker

FMC800

Teltonika Telematics FMC800 - Teltonika FMC800 OBDII Plug and Play 4G LTE CAT1 GNSS Tracker

Teltonika FMC800 OBDII Plug and Play 4G LTE Cat1 Tracker. FMx8 series devices are EASY to use and FAST to install. The number “8” brings everything together in one place and stands out with its simplicity of basic tracking. Teltonika FMC800 tracker is a small OBDII Plug and Play device with 4G LTE Cat 1 and BLUETOOTH connectivity. An extremely fast and easy installation allows connecting device in a few seconds! No tools or engineers are required for installation.

Crash detection functionality based on 3-axis built-in accelerometer with fully configurable parameters through our software to ensure accurate crash trace data. Bluetooth LE-based wireless connection of external devices, including Low Energy beacons and sensors, to monitor temperature, humidity, magnet detection, and movement.

Details
Product Code	FMC800TPNJ01
Module	FMC800-QJIB0: Quectel EG915U-EU with Teltonika TM2500
Technology	LTE CAT 1/GSM/GPRS/GNSS/BLUETOOTH LE
4G LTE bands	FMC800-QJIB0: LTE FDD: B1/B3/B7/B8/B20/B28
Data transfer	LTE: LTE FDD: Max 10Mbps (DL)/Max 5Mbps (UL), GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL)
Data support	SMS (TEXT, PDU), Network protocols (TCP, UDP, TLS, MQTT)
GNSS	GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
GNSS Receiver	33 channel
Tracking sensitivity	-165 dBM
Position Accuracy	< 2.5 m CEP
Velocity Accuracy	< 0.1 m/s (within +/- 15% error)
Hot start	< 1 s
Warm start	< 25 s
Cold start	< 35 s
Connection	OBDII socket
GNSS antenna	Internal High Gain
GSM antenna	Internal High Gain
USB 2.0	Micro-USB
LED indication	2 status LED lights
SIM	Micro-SIM
Memory	128MB internal flash memory
Input voltage range	10 - 30 V DC with overvoltage protection
Internal Back-up battery	170 mAh Li-Ion battery 3.7 V (0.63 Wh)
Internal fuse	3 A, 125 V
Regulatory	FMC800-QJIB0: CE RED, E-Mark, RCM
